Stock Status: 1x unit in stock

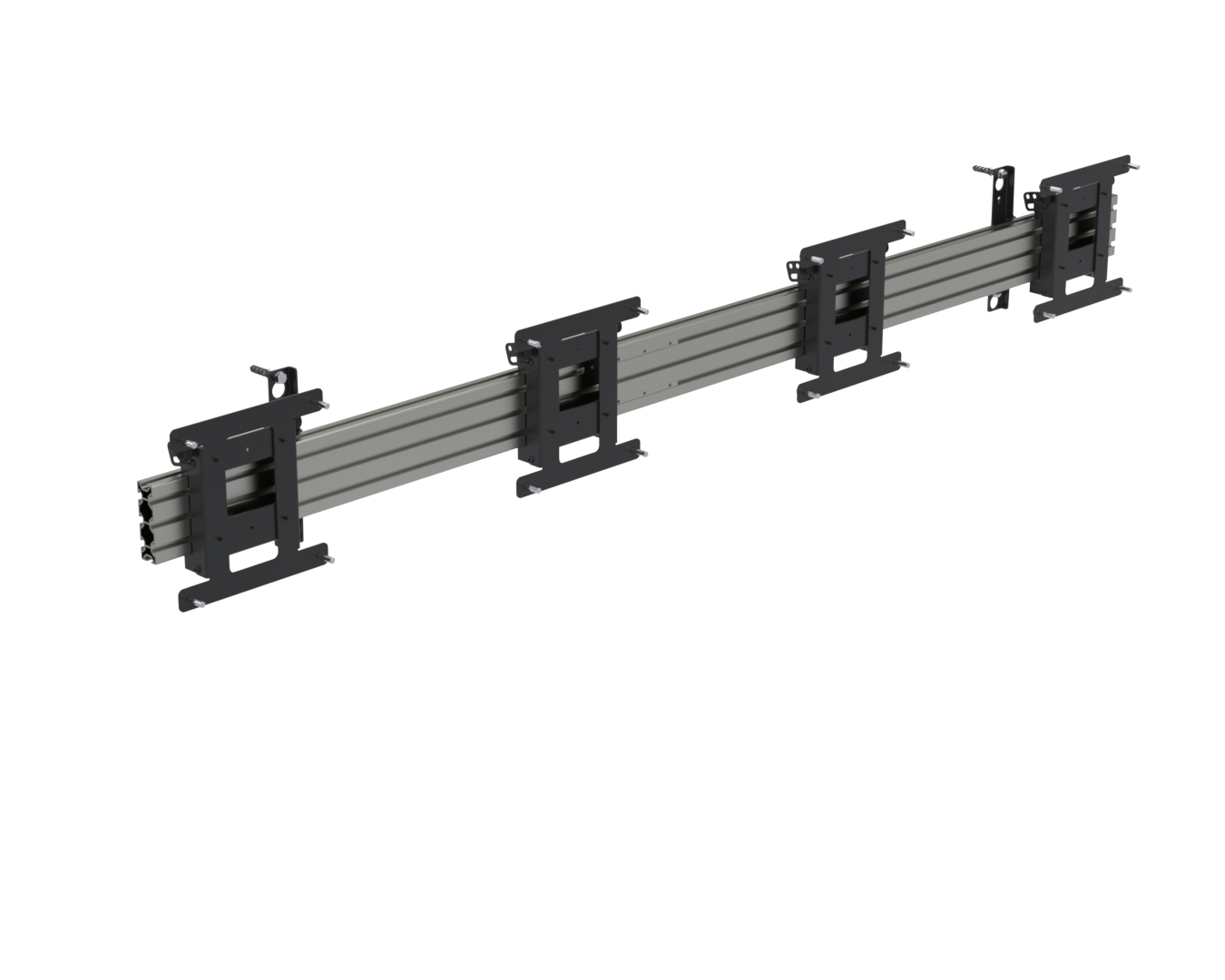

Our wall mounted Menu Board with tilt is designed for four screens (up to 43") in portrait orientation. It supports VESA 100 & 200 configurations and features adjustable tilt for optimal viewing angles. Perfect for dynamic menus or digital signage.
• Compatible with 4 screens up to 43” in Portrait orientation
• Includes micro adjustment
• Easy hook-on mounting of screens
• Includes fixing to secure screens at the bottom
• Quick release - Optional
• Rail can be cut to size for smaller screens
• Tilt (degrees): 0-15° for < 43” and 0-10° for 43” screens
Specs
| Weight & dimensions |
| Width |
1900 mm |
| Depth |
80 mm |
| Height |
235.1 mm |
| Weight |
11 kg |
| Ergonomics |
| Tilt angle range |
0 - 15° |
| Cable management |
Yes |
| Distance to the wall (min) |
8 cm |
| Mounting |
| Maximum weight capacity |
150 kg |
| Maximum screen size |
109.2 cm (43") |
| Mounting type |
Wall |
| Minimum VESA mount |
100 x 100 mm |
| Maximum VESA mount |
200 x 200 mm |
| Panel mounting interface |
100 x 100,200 x 200 mm |
| Number of displays supported |
4 |
| Minimum screen size |
38.1 cm (15") |
| Other features |
| Country of origin |
Denmark |
| Design |
| Product colour |
Black, Aluminium |
| Housing material |
Metal |
| Technical details |
| Pallet net height |
190 cm |
| Pallet net length |
120 cm |
| Pallet net width |
80 cm |
| Pallet net weight |
198.2 kg |
| Warranty period |
5 year(s) |
| Compliance certificates |
RoHS, REACH |
| Version |
1.0 |
| Packaging data |
| Package width |
250 mm |
| Package depth |
1200 mm |
| Package height |
350 mm |
| Package weight |
12.8 kg |
| Quantity per pack |
1 pc(s) |
| Logistics data |
| Harmonized System (HS) code |
8473308000 |
| Pallet gross length |
120 cm |
| Pallet gross width |
80 cm |
| Pallet gross height |
190 cm |
| Products per pallet |
15 pc(s) |
| Pallet gross weight |
198.2 kg |
Features
Ergonomic Solutions SpacePole Digital Signage Menu board mount, with tilt, for 4 screens (portrait) up to 43" (VESA 100 and 200). Maximum weight capacity: 150 kg, Minimum screen size: 38.1 cm (15"), Maximum screen size: 109.2 cm (43"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 200 x 200 mm. Tilt angle range: 0 - 15°. Product colour: Black, Aluminium
Product Description
Our wall mounted Menu Board with tilt is designed for four screens (up to 43") in portrait orientation. It supports VESA 100 & 200 configurations and features adjustable tilt for optimal viewing angles. Perfect for dynamic menus or digital signage.
• Compatible with 4 screens up to 43” in Portrait orientation
• Includes micro adjustment
• Easy hook-on mounting of screens
• Includes fixing to secure screens at the bottom
• Quick release - Optional
• Rail can be cut to size for smaller screens
• Tilt (degrees): 0-15° for < 43” and 0-10° for 43” screens
