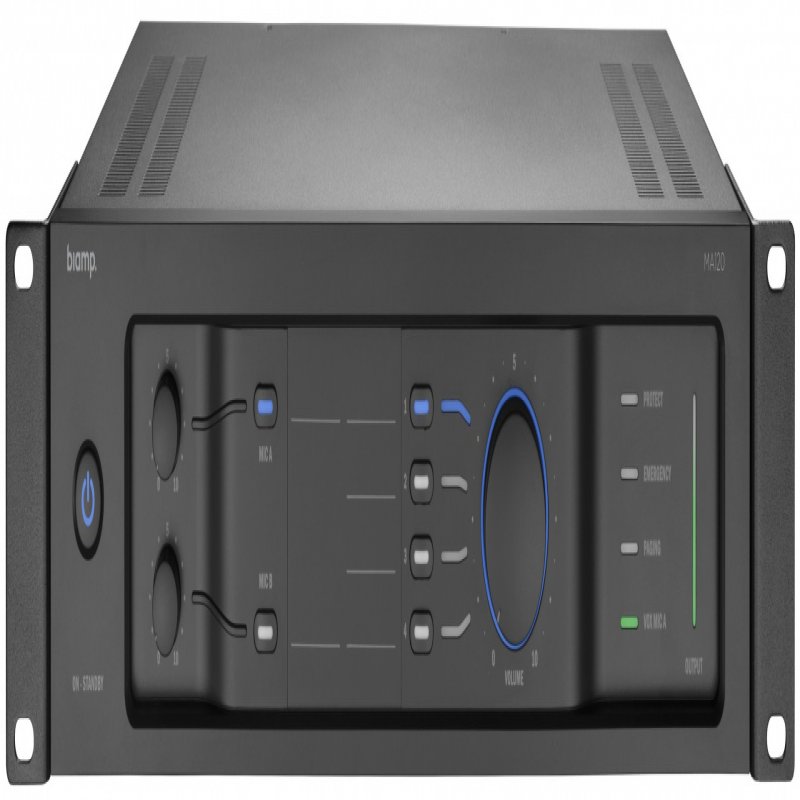

MA120
The revolutionary MA120 mixing amplifier offers the enduser an unseen cutting-edge design and ease-of-use. The ground-breaking intuitive front panel is clear and easy to use without any unnecessary bells and whistles. The volume control rotary on the front panel is prominent, illuminated, bigger and put in the forefront while the mic volume control is smaller and recessed.
This class-d mixing power amplifier offers 120 watts in 70 or 100 volt mode and comes with three mic inputs balanced, along with four stereo line, mono summed inputs.
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 35 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 2000 m |
| Weight & dimensions |
| Width |
483 mm |
| Depth |
300 mm |
| Height |
89 mm |
| Weight |
5 kg |
| Packaging data |
| Package width |
411.7 mm |
| Package depth |
516.9 mm |
| Package height |
190 mm |
| Package weight |
7.2 kg |
| Audio |
| Amplifier class |
D |
| Total Harmonic Distortion (THD) |
0.5% |
| Signal-to-Noise Ratio (SNR) |
90 dB |
| RMS rated power |
120 W |
| Technical details |
| Purpose |
Performance/stage |
| Connectivity technology |
Wired |
| Product colour |
Black |
| Country of origin |
China |
| Power |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| DC input voltage |
24 V |
| Power consumption (typical) |
120 W |
| Power consumption (standby) |
0.5 W |
| Maximum current |
0.5 A |
| Ports & interfaces |
| Speakers connectivity type |
Euroblock |
| AC (power) in |
Yes |
| Pre out port |
Yes |
| Line inputs (RCA) |
4 |
| Microphone in |
Yes |
| Illumination/Alarms |
| LED indicators |
Yes |
| Indication |
| LED indicators |
Yes |
| Packaging content |
| Manual |
Yes |
| Logistics data |
| Export Control Classification Number (ECCN) |
EAR99 |
| Harmonized System (HS) code |
8518402000 |
Features
Biamp Commercial Audio MA120. Amplifier class: D, Total Harmonic Distortion (THD): 0.5%, Signal-to-Noise Ratio (SNR): 90 dB. Speakers connectivity type: Euroblock. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, DC input voltage: 24 V. Width: 483 mm, Depth: 300 mm, Height: 89 mm. Package width: 411.7 mm, Package depth: 516.9 mm, Package height: 190 mm
Product Description
MA120
The revolutionary MA120 mixing amplifier offers the enduser an unseen cutting-edge design and ease-of-use. The ground-breaking intuitive front panel is clear and easy to use without any unnecessary bells and whistles. The volume control rotary on the front panel is prominent, illuminated, bigger and put in the forefront while the mic volume control is smaller and recessed.
This class-d mixing power amplifier offers 120 watts in 70 or 100 volt mode and comes with three mic inputs balanced, along with four stereo line, mono summed inputs.
