Stock Status: 1x unit in stock

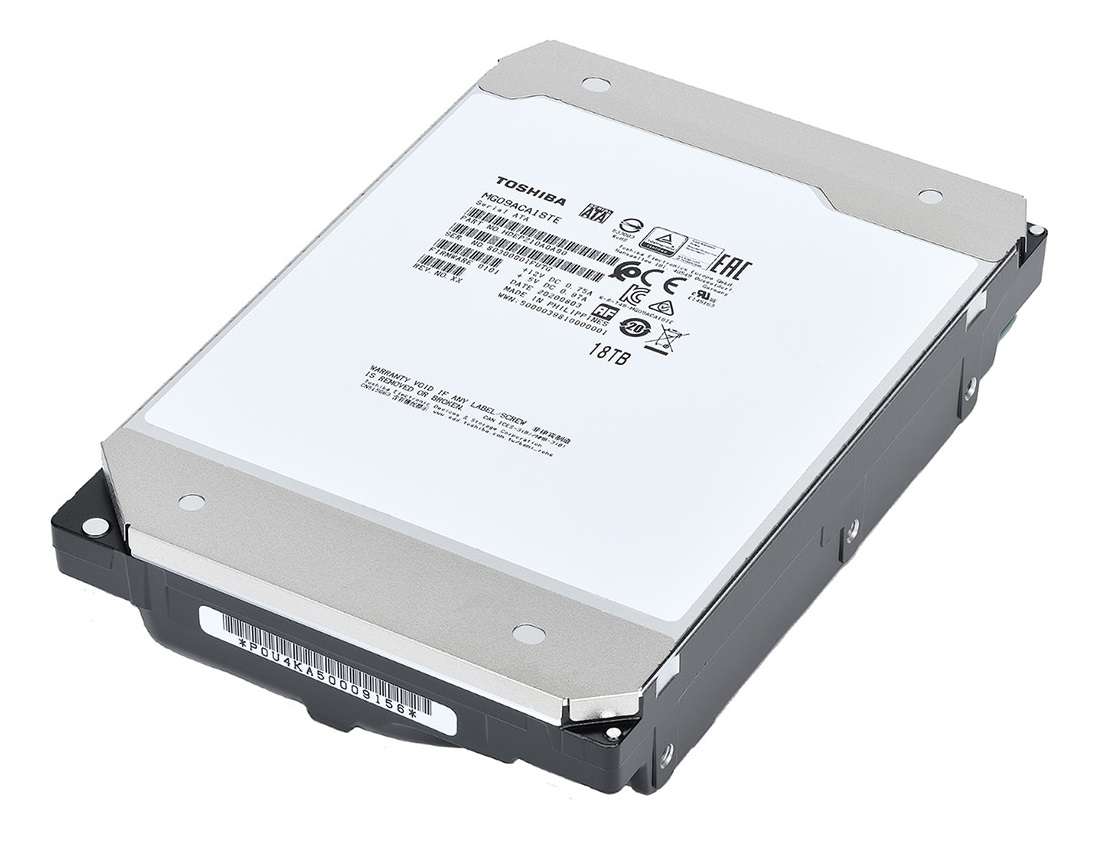

The MG09 Series features Toshiba’s third-generation, 9-disk Helium-sealed design to advance Conventional Magnetic Recording (CMR) density to 2TB per disk, achieving a total capacity of 18TB.The industry-standard 3.5-inch form-factor provides 7200rpm performance, and integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions.
The massive 18TB CMR capacity is delivered using Toshiba’s innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR) technology. These advances help the MG09 Series to achieve optimum storage capacity and application compatibility, with unsurpassed data reliability. Available with either a SATA 6.0Gbit/s or a 12.0Gbit/s SAS interface, the MG09 Series models integrate easily into standard 3.5-inch drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, File and Object storage systems, and business critical servers and storage systems.
Specs
| Weight & dimensions |
| Width |
101.8 mm |
| Height |
26.1 mm |
| Depth |
147 mm |
| Weight |
720 g |
| Power |
| Power consumption (typical) |
8.35 W |
| Power consumption (idle) |
4.16 W |
| Operating voltage |
5 / 12 V |
| Operational conditions |
| Operating temperature (T-T) |
5 - 55 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating vibration |
0.75 G |
| Non-operating vibration |
3 G |
| Operating altitude |
-305 - 3048 m |
| Non-operating altitude |
-305 - 12192 m |
| Operating shock |
70 G |
| Non-operating shock |
250 G |
| Features |
| HDD size |
3.5" |
| HDD capacity |
18000 GB |
| HDD speed |
7200 RPM |
| Interface |
Serial ATA III |
| Type |
HDD |
| Component for |
NAS |
| Hot-swap |
N |
| Storage drive buffer size |
512 MB |
| HDD interface transfer rate |
6 Gbit/s |
| HDD sustained transfer rate |
268 MiB/s |
| 24/7 operation |
Y |
| Start/stop cycles |
600000 |
| Workload rate limit |
550 TB/year |
| Noise level (idle) |
20 dB |
| Mean time to failure (MTTF) |
2500000 h |
| Packaging data |
| Quantity |
1 |
Features
Toshiba MG09. HDD size: 3.5", HDD capacity: 18000 GB, HDD speed: 7200 RPM
Product Description
The MG09 Series features Toshiba’s third-generation, 9-disk Helium-sealed design to advance Conventional Magnetic Recording (CMR) density to 2TB per disk, achieving a total capacity of 18TB.The industry-standard 3.5-inch form-factor provides 7200rpm performance, and integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions.
The massive 18TB CMR capacity is delivered using Toshiba’s innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR) technology. These advances help the MG09 Series to achieve optimum storage capacity and application compatibility, with unsurpassed data reliability. Available with either a SATA 6.0Gbit/s or a 12.0Gbit/s SAS interface, the MG09 Series models integrate easily into standard 3.5-inch drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, File and Object storage systems, and business critical servers and storage systems.
