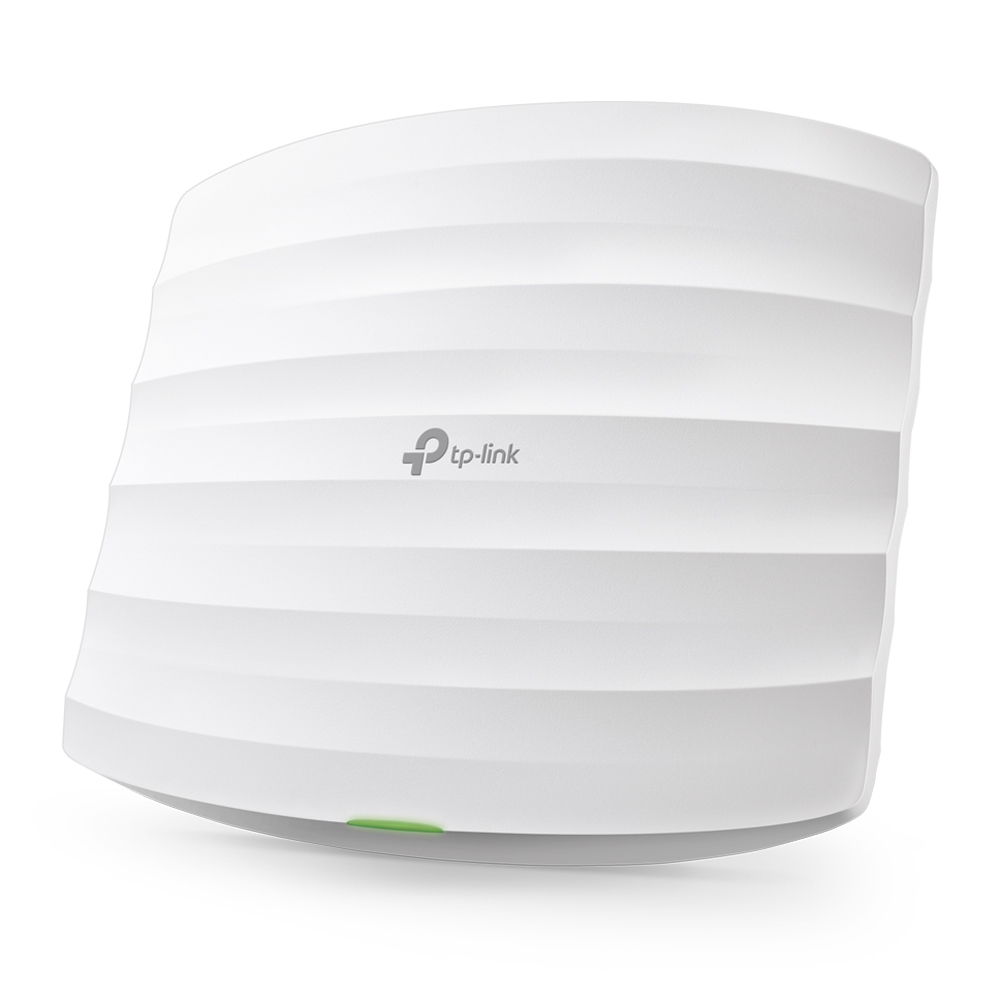

TP-Link 300Mbps Wireless N Access Point EAP110 - CMS01
[EAP110]

Name: TP-Link 300Mbps Wireless N Access Point EAP110 - CMS01
Brand: tp-link
SKU: EAP110
Price: 33.00 GBP
Availability: InStock

TEMPORARILY OUT OF STOCK

Part Number: EAP110

Manufacturer: tp-link

Condition: New

Short Description:

TP-Link 300Mbps Wireless N Access Point EAP110

£33.00
£39.60 - Inc VAT

Thank you for your request, PLEASE RE-TYPE THE PART NUMBER IN THE SEARCH BOX

Stock Status: 1x unit in stock

- EAP Controller Software enables administrators to easily manage hundreds of EAPs
- Supports passive PoE for convenient installation up to 100meters
- Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling
- Captive portal provides one convenient method of authentication for Wi-Fi guests
- Multi-SSID divides multiple wireless networks for different users
- Enterprise class Wi-Fi security help to decrease network security threats
What This Product Does
The TP-LINK’s EAP110 business Access Point provides a flexible, easy-to-deploy, manageable and robust security business-class wireless network solution. Simple mounting design to easily mount to a wall or ceiling. WLAN configuration and management are simplified through centralized management software. EAP110 also features captive portal and auto RF management, making it ideal for the high-density, intensive demanding businesses environment, include campus, hotels, malls and offices.
Flexible Placement - Easy mounting design & PoE
The EAP110’s “ceiling lamp” appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive Power over Ethernet (Passive PoE) to make deployment effortless and flexible.
Simple and Scalable Business Wi-Fi Management - EAP Controller Software
The EAP Controller Software represents a cost-effective 'centralized management' solution for wireless networks of both small and medium business sectors (SMB). The software enables administrators to manage hundreds of EAPs easily from any PC on the network. Includes such administrative features as centralized configuration, real-time monitoring, graphical analysis of network traffic and batch firmware updates.
Powerful and Intuitive Software
- Free controller software, no additional hardware controller required
- Easy-to-use, no special training necessary
- Upload floor plans for a more Intuitive Wi-Fi management
- Batch firmware update support for effective administration
- Advanced security features including Captive Portal, Rogue AP Detection
Visual Network Monitoring
- Intuitively view traffic on any individual AP on the network
- Graphical activity of clients connected to the network
- Visual analytics of overall network usage and traffic distribution
Efficient Guest Authentication - Captive Portal
Captive portal provides one convenient method of authentication for Wi-Fi guests. A captive portal requires users to perform certain actions before network access is allowed. The required action must be verified by an external portal server or customized database by the administrator, which can be simply viewing and agreeing to an acceptable use policy, or entering a user ID and password.
Robust Safety Strategy - Multiple Wi-Fi Security Measures
The EAP110 supports the enterprise class Wi-Fi security, including WPA/WPA2-enterprise encryption and 802.1X radius. In addition, Multi-SSID, Wireless Isolation, MAC Filtering and Rogue AP detection features help to decrease network security threats.
Applicable to Multi-user Environment - Designed for Enterprise Performance
With easy mounting design, PoE power supply, Centralized management software, Captive portal, enterprise class security, and Enterprise hardware, EAP110 is specially designed for the highest-density, most demanding enterprise environments, including schools, hotels, and enterprises.
- EAP Controller Software enables administrators to easily manage hundreds of EAPs
- Support Passive PoE for convenient and affordable installation
- Simple mounting design to easily mount to a wall or ceiling
- 300Mbps wireless data rate for uninterrupted wireless connection
- Captive portal provides one convenient method of authentication for Wi-Fi guests
- WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
- Multi-SSID divides multiple wireless network for different users
- Load balance ensures large numbers of users have smooth network experiences in large business networks
- Compatible with 802.11 b/g/n products
- Adopts Low Smoke Zero Halogen (LSOH) materials for UL2043 compliance
- Multiple operating modes satisfy different application conditions including managed AP and standalone AP modes
- QoS function prioritizes data, voice, and video applications to ensure time-sensitive traffic takes priority over all other traffic
- Prevents dust from dropping onto the PCB through bypass louver, which ensures long-term, unhindered operation.

Reviews

Specs

Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	189.4 mm
Depth	172.3 mm
Height	29.5 mm
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
WAN connection	Ethernet (RJ-45)
DC-in jack	Y
USB 2.0 ports quantity	0
System requirements
Compatible operating systems	Microsoft Windows 8, 7, Vista, XP
Power
Power consumption (typical)	2.8 W
Input voltage	24 V
Input current	1 A
Power over Ethernet (PoE)	Yes
AC input voltage	24 V
Security
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
MAC address filtering	Yes
Number of SSID support	8
Number of SSID supported	8
Service Set Identifier (SSID) features	Multiple SSIDs
Remote Authentication Dial-In User Service (RADIUS)	Yes
Access Control List (ACL)	Yes
Protocols
Management protocols	SNMP, Telnet, HTTP, HTTPS
Antenna
Antenna type	Internal
Antenna gain level (max)	4 dBi
Antennas quantity	2
Integrated antenna	Y
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Packaging content
Mounting kit	Y
Design
Internal	N
LED indicators	Power
Cable lock slot	Y
Colour of product	White
Cable lock slot type	Kensington
Product colour	White
Placement	Ceiling, Wall
Reset button	Yes
Certification	FCC, RoHS
Performance
Data transfer rate (max)	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Wi-Fi data rate (max)	300 Mbit/s
2.4 GHz	Y
Frequency band	2.4 - 2.4835 GHz
Quality of Service (QoS) support	Y
VLAN support	Y
Networking standards	IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Maximum outdoor range	100 m
Certification	CE, FCC, RoHS
Rate limiting	Y
Wi-Fi MultimediaÂ (WMM)/(WME)	Y
Reset button	Y
Maximum data transfer rate	300 Mbit/s
Compatible operating systems	Microsoft Windows 8, 7, Vista, XP
Logistics data
Harmonized System (HS) code	85176990
Features
2.4 GHz	Yes
Maximum data transfer rate	300 Mbit/s
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Wi-Fi MultimediaÂ (WMM)/(WME)	Y
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Maximum outdoor range	100 m
Wi-Fi Multimedia (WMM)/(WME)	Yes
5 GHz	No
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Cabling technology	10/100Base-T(X)
Automatic channel selection	Yes
Virtual LAN features	SSID-based VLAN assignment
Wireless isolation	Yes
Transmitting power (CE)	21 dBm
Receiver sensitivity	300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Wi-Fi Multimedia (WMM)/(WME)	Yes
Packaging data
Mounting kit	Y
Number of products included	1 pc(s)
PoE adapter included	Y
Cables included	AC
Quick start guide	Y
Package type	Box
Management features
Web-based management	Yes
Syslog	Yes
Technical details
Harmonized System (HS) code	85176990
Certification
Certification	FCC, RoHS
Packaging content
Number of products included	1 pc(s)
PoE adapter included	Yes
Cables included	AC
Mounting kit	Yes
Quick start guide	Yes
Quantity per pack	1 pc(s)
