| Wireless LAN features |
| Wi-Fi band |
Single-band (2.4 GHz) |
| Top Wi-Fi standard |
Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) |
300 Mbit/s |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| USB port |
Y |
| DC-in jack |
Y |
| Memory card slot(s) |
N |
| Mobile networking |
| 3G |
N |
| 4G |
N |
| Mobile network generation |
4G |
| Networking |
| Ethernet LAN |
Y |
| Ethernet LAN interface type |
Fast Ethernet |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Cabling technology |
10/100Base-T(X) |
| VPN support |
PPTP, L2TP, IPSec |
| Port triggering |
Y |
| Dynamic DNS (DDNS) |
Y |
| VPN Passthrough |
Y |
| Port forwarding |
Y |
| Number of guest networks (2.4 GHz) |
1 |
| Protocols |
| DHCP client |
Y |
| DHCP server |
Y |
| Universal Plug and Play (UPnP) |
Y |
| Supported network protocols |
IPv4, IPv6 |
| Antenna |
| Antenna type |
Internal |
| Receive power |
270M: -65dBm@10% PER , 130M: -70dBm@10% PER , 108M: -82dBm@10% PER , 54M: -73dBm@10% PER , 11M: -82dBm@8% PER , 6M: -86dBm@10% PER , 1M: -90dBm@8% PER |
| Transmit power |
CE: , <20dBm(2.4GHz) , FCC: , <30dBm |
| Antenna design |
Internal |
| Antennas quantity |
2 |
| Management features |
| Web-based management |
Y |
| Reset button |
Y |
| Quality of Service (QoS) support |
Y |
| Security |
| Security algorithms |
WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise |
| Firewall |
Y |
| Stateful Packet Inspection (SPI) |
Y |
| DoS attack prevention |
Y |
| Filtering |
Y |
| MAC address filtering |
Y |
| IP address filtering |
Y |
| DMZ support |
Y |
| Firewall security |
SPI |
| Power |
| Power source type |
USB |
| Output voltage |
5 V |
| Output current |
1 A |
| Weight & dimensions |
| Width |
57 mm |
| Depth |
57 mm |
| Height |
18 mm |
| System requirements |
| Windows operating systems supported |
Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, |
| Linux operating systems supported |
Y |
| Mac operating systems supported |
macOS |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Design |
| Product colour |
Blue, White |
| LED indicators |
Activity, LAN, Power, WLAN |
| On/off switch |
Y |

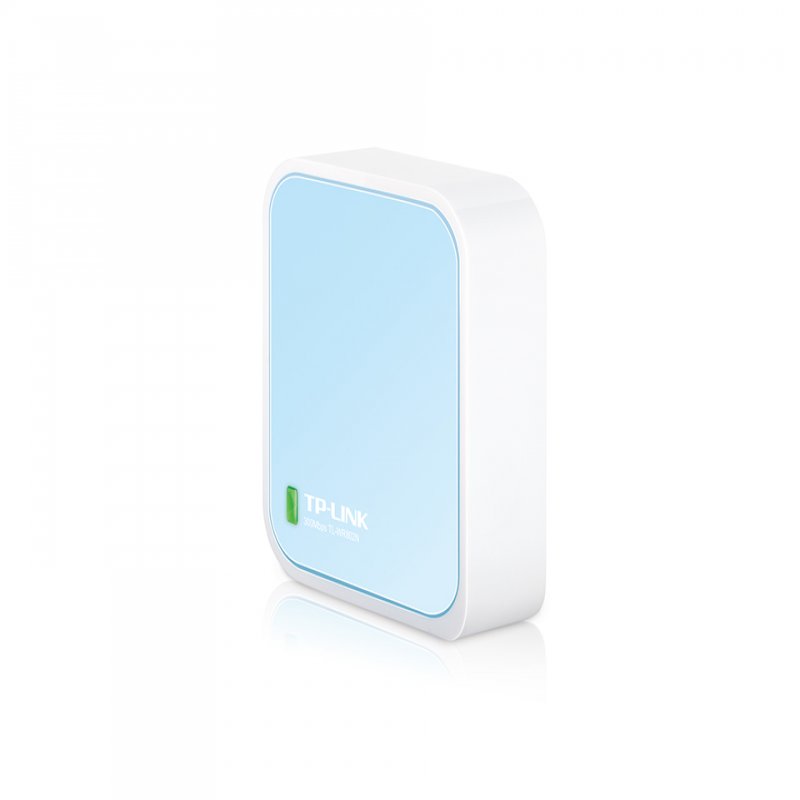

| Product type |
Portable router |
| Features |
| Certification |
CE, FCC, RoHS |
| Harmonized System (HS) code |
85176990 |
| Built-in processor |
Y |
| Processor cores |
1 |
| Other features |
| Mobile network connection |
Y |
| WLAN data transfer rates supported |
11,54,300 Mbit/s |
| Frequency range |
2.4 - 2.4835 GHz |
| USB ports quantity |
1 |
| Supported WAN type |
IP, Static IP, PPPoE, PPTP, L2TP |
| Frequency band |
2.4 GHz |
| Rack mounting |
N |
| xDSL connection |
N |
| WAN connection |
| Ethernet WAN |
Y |
| DSL WAN |
N |
| SIM card slot |
N |
| 3G/4G USB modem compatibility |
N |
| WAN connection type |
RJ-45 |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Packaging data |
| Manual |
Y |
| Quick installation guide |
Y |
| Package width |
110 mm |
| Package depth |
109 mm |
| Package height |
73.5 mm |
| Package weight |
240 g |
| Packaging content |
| Manual |
Y |
| Quick installation guide |
Y |
| Cables included |
LAN (RJ-45), USB |
| AC adapter included |
Y |
| Sustainability |
| Sustainability compliance |
Y |
| Sustainability certificates |
Federal Communications Commission (FCC) |
