Stock Status: 1x unit in stock
Powerful Pan Tilt
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.
Outdoor PoE Connection, Simple Wiring
Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.
Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
Active Defense
Warn potential intruders instantly with sound and light when abnormal events are detected.
Every Event is Under Your Control.
VIGI camera intelligently detects activities, informs you instantly, and responds automatically by smart detection and two-way audio.
Never miss a detail.
SmartVid-Smart Video Enhancement
Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to the camera at night.
Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).
Specs
| Image sensor |
| Sensor type |
CMOS |
| Optical sensor size |
25.4 / 3 mm (1 / 3") |
| Lens system |
| Number of lenses |
1 |
| Zoom capability |
Yes |
| Lens diameter |
4 mm |
| Camera |
| Camera pan control |
Yes |
| Camera tilt control |
Yes |
| Lens viewing angle, horizontal |
79° |
| Lens viewing angle, vertical |
43° |
| Lens viewing angle, diagonal |
93° |
| Tilt angle range |
0 - 120° |
| Pan range |
0 - 350° |
| Video |
| Maximum resolution |
2560 x 1440 pixels |
| Total megapixels |
4 MP |
| Video compression formats |
H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions |
320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
| Frame rate |
30 fps |
| Video streaming |
Yes |
| Noise reduction |
Yes |
| Noise reduction technology |
3D noise reduction |
| Image quality adjustment |
Brightness, Contrast, Mirror, Saturation, Sharpness |
| Privacy masking |
Yes |
| Bit rate |
256 Kbps - 4 Mbps |
| Digital Wide Dynamic Range (DWDR) |
Yes |
| Audio |
| Built-in speaker(s) |
Yes |
| Built-in microphone |
Yes |
| Networking |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Bluetooth |
No |
| Ethernet interface type |
Fast Ethernet |
| Supported network protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Live view |
Yes |
| Number of simultaneous live view channels |
3 channels |
| Security |
| Password protection |
Yes |
| IP address filtering |
Yes |
| HTTPS encryption |
Yes |
| Intelligent Video Surveillance (IVS) system features |
Human detection |
| Mirror |
Yes |
| Digest authentication |
Yes |
| Power |
| Power source type |
PoE |
| Power consumption (Power over Ethernet (PoE)) |
14 W |
| DC output voltage |
12 |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Operational conditions |
| Operating temperature (T-T) |
-30 - 60 °C |
| Weight & dimensions |
| Width |
120 mm |
| Depth |
172 mm |
| Height |
198 mm |
| Management features |
| Reset button |
Yes |
| Behavior analysis |
Intrusion detection, Line crossing detection |
| Packaging content |
| Number of cameras |
1 |
| Mounting kit |
Yes |
| Night vision |
| Night vision |
Yes |
| Night vision distance |
30 m |
| LED type |
IR |
| Storage |
| Built-in HDD |
No |
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash) |
| Maximum memory card size |
256 GB |
| Design |
| Mounting type |
Ceiling/wall |
| Product colour |
Black, White |
| Form factor |
Turret |
| Housing material |
Plastic |
| International Protection (IP) code |
IP66 |
| Performance |
| Type |
IP security camera |
| Placement supported |
Indoor & outdoor |
| Connectivity technology |
Wired |
| Certification |
RCM, BSMI, VCCI, NTRA, KC |
| Packaging data |
| Package width |
163 mm |
| Package depth |
213 mm |
| Package height |
243 mm |
| Package weight |
950 g |
| Sustainability |
| Compliance certificates |
CE, RoHS |
Features

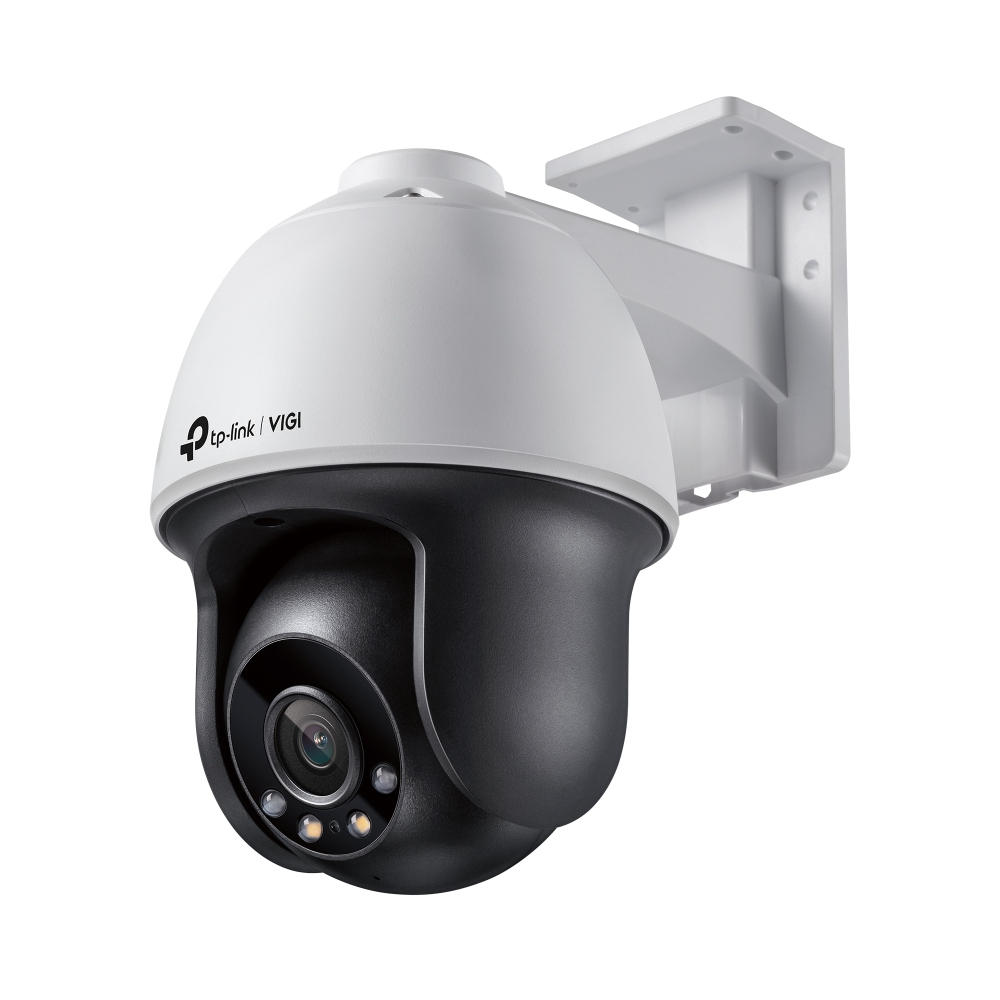

TP-Link VIGI 4MP Outdoor Full-Color Pan Tilt Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Turret. Lens viewing angle, horizontal: 79°, Lens viewing angle, vertical: 43°, Lens viewing angle, diagonal: 93°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Lens diameter: 4 mm
Product Description
Powerful Pan Tilt
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.
Outdoor PoE Connection, Simple Wiring
Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.
Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
Active Defense
Warn potential intruders instantly with sound and light when abnormal events are detected.
Every Event is Under Your Control.
VIGI camera intelligently detects activities, informs you instantly, and responds automatically by smart detection and two-way audio.
Never miss a detail.
SmartVid-Smart Video Enhancement
Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to the camera at night.
Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).
