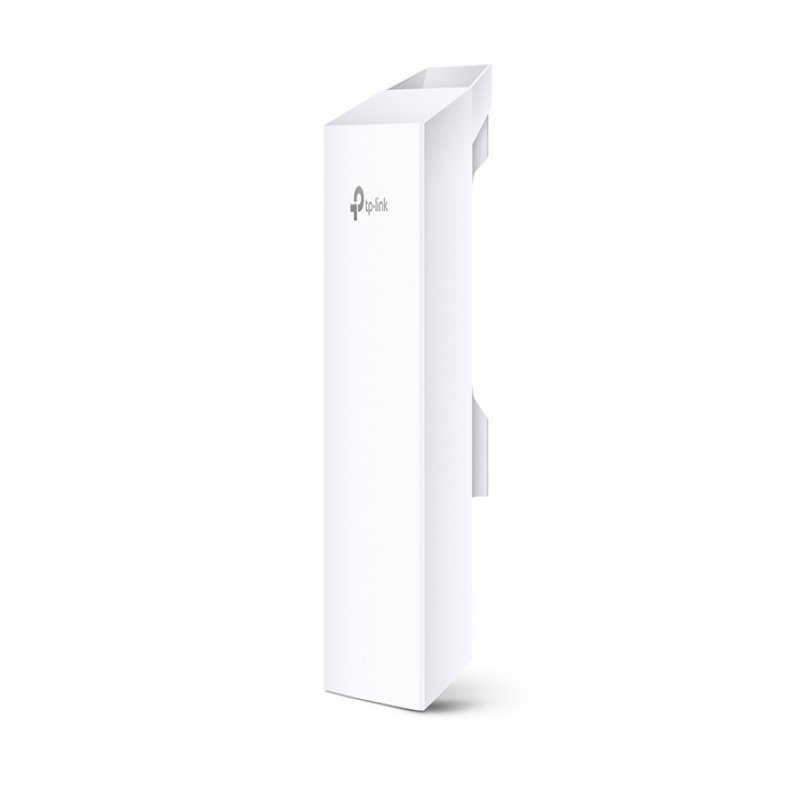

TP-Link 5GHZ 300mbs 13dbi outdoor CPE CPE510 - CMS01
[CPE510]

Name: TP-Link 5GHZ 300mbs 13dbi outdoor CPE CPE510 - CMS01
Brand: tp-link
SKU: CPE510
Price: 47.00 GBP
Availability: InStock

TEMPORARILY OUT OF STOCK

Part Number: CPE510

Manufacturer: tp-link

Condition: New

Short Description:

TP-Link 5GHZ 300mbs 13dbi outdoor CPE CPE510

£47.00
£56.40 - Inc VAT

Thank you for your request, PLEASE RE-TYPE THE PART NUMBER IN THE SEARCH BOX

Stock Status: 1x unit in stock

What this product does
TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.
Enterprise Hardware Design
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30? (-22?) to +70 ? (158?).
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna and dedicated metal reflection ensures higher gain and lower noise interference.
High Power & High Sensitivity
In advanced, high power Tx (up to 27dBm/500mw) and high sensitivity Rx (up to -95dBm) radio front-end design breaks down the barriers of traditional Wi-Fi transmission range, making CPE510 an ideal product for outdoor wireless networking applications.
Professional Outdoor Design
CPE510 is designed to work in harsh environments, even in some of the world’s most hostile climate conditions.
Weatherproof Design
With its outdoor weatherproof enclosure and industrial-level hardware design, CPE510 can continue operating in various weather conditions, such as sunshine, rainfall, wind, snow or extremely low/high temperature environment(-30°C~70°C).
Double Protection against ESD Attacks
Besides its grounding terminal, CPE510 offers another way to eliminate ESD attacks via the PoE adapter and Ethernet cable with grounding wire. The CPE510’s additional security measures provide up to 15KV ESD and 6000V lightning protection for more reliable operation.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience, to mitigate these effects, the CPE510 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE510 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
PharOS
User-friendly web-based management system allows professionals to apply more specific configurations

Reviews

Specs

Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	224 mm
Depth	75 mm
Height	60 mm
Ports & interfaces
Interface	Ethernet
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
System requirements
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vistaâ„¢ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Power
Power consumption (typical)	13 W
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Input current	0.8 A
Power over Ethernet (PoE) support	Yes
Power over Ethernet (PoE)	Y
Security
Security algorithms	64-bit WEP,128-bit WEP,152-bit WEP,TKIP,WPA,WPA-PSK,WPA2,WPA2-PSK
MAC address filtering	Y
IP address filtering	Y
Protocols
Management protocols	TDMA
Other features
Compatibility	PC
Wireless range	15000 m
Colour	Y
Antenna
Antenna gain level (max)	13 dBi
Antennas quantity	1
Detachable antenna(s)	N
Integrated antenna	Y
Antenna features	Integrated antenna
Antenna type	Internal
Antenna direction type	Omni-directional
Packaging content
Cables included	AC
Design
Internal	N
LED indicators	Y
Colour of product	White
Product colour	White
Reset button	Y
Certification	FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark RoHS
Placement	Pole
Housing material	Plastic
International Protection (IP) code	IP5X
Performance
Data transfer rate (max)	300 Mbit/s
Bandwidth	5 GHz
Ethernet LAN data rates	10,100 Mbit/s
Wi-Fi data rate (max)	300 Mbit/s
Frequency band	5.15 - 5.85 GHz
Management platform	PharOS
Flash memory	8 MB
Internal memory	64 MB
Receiver sensitivity	802.11a:\n54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm\n\n802.11n:\nMCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,\nMCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,\nMCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,\nMCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm,\nM
Web-based management	Y
Networking standards	IEEE 802.11a,IEEE 802.11n
Maximum outdoor range	15000 m
Built-in processor	Y
Reset button	Y
Certification	- FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark\n- RoHS
Maximum data transfer rate	300 Mbit/s
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Processor model	Qualcomm Atheros
Processor frequency	560 MHz
Processor architecture	MIPS 74Kc
Features
Maximum data transfer rate	300 Mbit/s
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Frequency band	5.15 - 5.85 GHz
Bandwidth	5 GHz
Networking standards	IEEE 802.11a,IEEE 802.11n
Maximum outdoor range	15000 m
Receiver sensitivity	802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83
2.4 GHz	Y
5 GHz	N
Throughput data rate	300 Mbit/s
Cabling technology	10/100Base-T(X)
Automatic channel selection	Y
Automatic channel scanning	Y
Packaging data
Cables included	AC
Management features
Web-based management	Y
Management platform	Pharos Control
