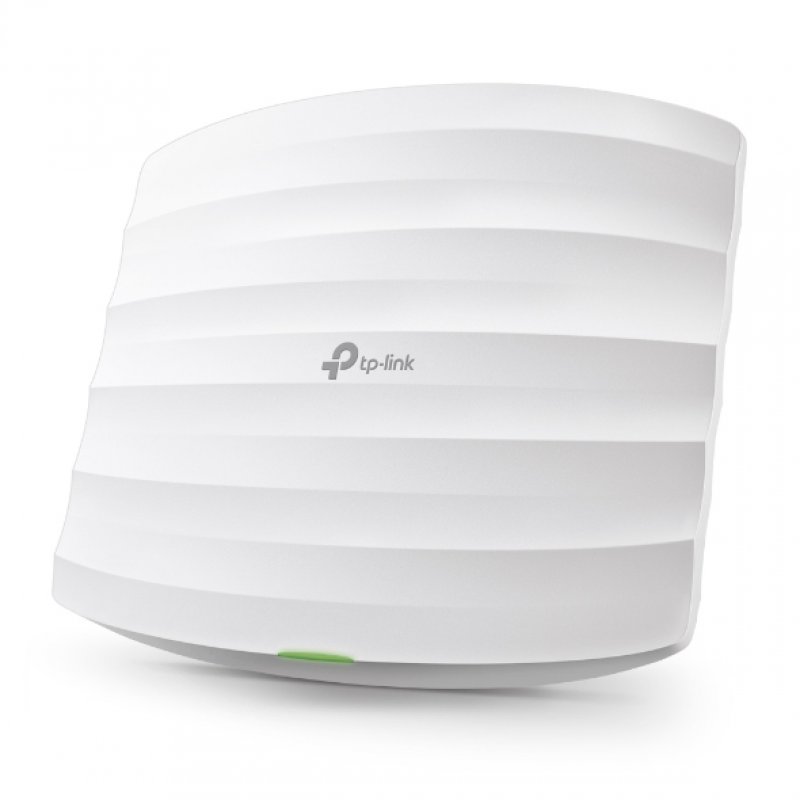

TP-Link AC1750 Dual Band Access Point EAP245 - CMS01
[EAP245]

Name: TP-Link AC1750 Dual Band Access Point EAP245 - CMS01
Brand: tp-link
SKU: EAP245
Price: 56.00 GBP
Availability: InStock

TEMPORARILY OUT OF STOCK

Part Number: EAP245

Manufacturer: tp-link

Condition: New

Short Description:

TP-Link AC1750 Dual Band Access Point EAP245

£56.00
£67.20 - Inc VAT

Thank you for your request, PLEASE RE-TYPE THE PART NUMBER IN THE SEARCH BOX

Stock Status: 1x unit in stock

Superior Wi-Fi Speeds and Performance
QCA enterprise class chipsets, dedicated high-power amplifier and professional antenna along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior 1750 Mbps Wi-Fi speeds and long-range coverage over 2.4GHz and 5GHz wireless bands.
Seamless Roaming
802.11k/802.11v seamless roaming switches clients automatically to the access point with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Secure Guest Network with Facebook W-Fi and SMS Login
Guest Network provides secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Multiple PoE Options for Easy Installation
EAP245 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter. The addition of elegant appearance and simple mounting design for easy attachment to a wall or ceiling further makes deployment effortless and flexible.
Free Cloud Centralized Management
- Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.

Reviews

Specs

Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	205.4 mm
Depth	181.6 mm
Height	37.4 mm
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
DC-in jack	Yes
System requirements
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Power
Power consumption (typical)	12.3 W
Input voltage	12 V
Input current	1.5 A
Power over Ethernet (PoE)	Yes
AC input voltage	12 V
Security
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes
Port-based Network Access Control (PNAC)	Yes
Number of SSID support	16
Number of SSID supported	16
Access Control List (ACL)	Yes
Antenna
Antenna type	Internal
Antenna gain level (max)	4 dBi
Integrated antenna	Y
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Packaging content
AC adapter included	Y
Mounting kit	Y
CD quick installation guide	Y
Design
Internal	N
Placement	Ceiling, Wall
Cable lock slot	Yes
Cable lock slot type	Kensington
LED indicators	Power
Product colour	White
Reset button	Yes
Certification	CE, FCC, RoHS
Performance
Data transfer rate (max)	1300 Mbit/s
2.4 GHz	Y
5 GHz	Y
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x,IEEE 802.3af
Frequency band	2.4, 5 GHz
Web-based management	Y
Quality of Service (QoS) support	Y
Rate limiting	Y
Transmitting power	27 dBmW
Wireless isolation	Y
Automatic channel selection	Y
Syslog	Y
Reset button	Y
Certification	CE, FCC, RoHS
Maximum data transfer rate	1300 Mbit/s
MIMO	Y
MIMO type	Multi User MIMO
Load balancing	Y
Airtime Fairness (ATF)	Y
Compatible operating systems	Microsoft Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10
Logistics data
Harmonized System (HS) code	85176990
Software
SSID-based VLAN assignment	Y
Access Control List (ACL)	Y
Features
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1300 Mbit/s
Frequency band	2.4, 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af
Automatic channel selection	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Virtual LAN features	SSID-based VLAN assignment
Rate limiting	Yes
Wireless isolation	Yes
Load balancing	Y
Airtime Fairness (ATF)	Yes
Quality of Service (QoS) support	Yes
Transmitting power	27 dBmW
Maximum data transfer rate (2.4 GHz)	450 Mbit/s
Maximum data transfer rate (5 GHz)	1300 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Packaging data
AC adapter included	Y
Mounting kit	Y
PoE adapter included	Y
Quick start guide	Y
Management features
Web-based management	Yes
Syslog	Yes
Technical details
Harmonized System (HS) code	85176990
Packaging content
PoE adapter included	Yes
Mounting kit	Yes
Quick start guide	Yes

Related Products

Refurbished Printers

Features

TP-Link EAP245. Maximum data transfer rate: 1300 Mbit/s, Maximum data transfer rate (2.4 GHz): 450 Mbit/s, Maximum data transfer rate (5 GHz): 1300 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK. AC input voltage: 12 V, Input current: 1.5 A, Power consumption (typical): 12.3 W. Placement: Ceiling, Wall, Product colour: White, Cable lock slot type: Kensington. Antenna type: Internal, Antenna direction type: Omni-directional, Antenna features: Integrated antenna

Product Description

Superior Wi-Fi Speeds and Performance
QCA enterprise class chipsets, dedicated high-power amplifier and professional antenna along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior 1750 Mbps Wi-Fi speeds and long-range coverage over 2.4GHz and 5GHz wireless bands.
Seamless Roaming
802.11k/802.11v seamless roaming switches clients automatically to the access point with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Secure Guest Network with Facebook W-Fi and SMS Login
Guest Network provides secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Multiple PoE Options for Easy Installation
EAP245 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter. The addition of elegant appearance and simple mounting design for easy attachment to a wall or ceiling further makes deployment effortless and flexible.
Free Cloud Centralized Management
- Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
