Stock Status: 1x unit in stock
Exploring the New Era of Home Wi-Fi

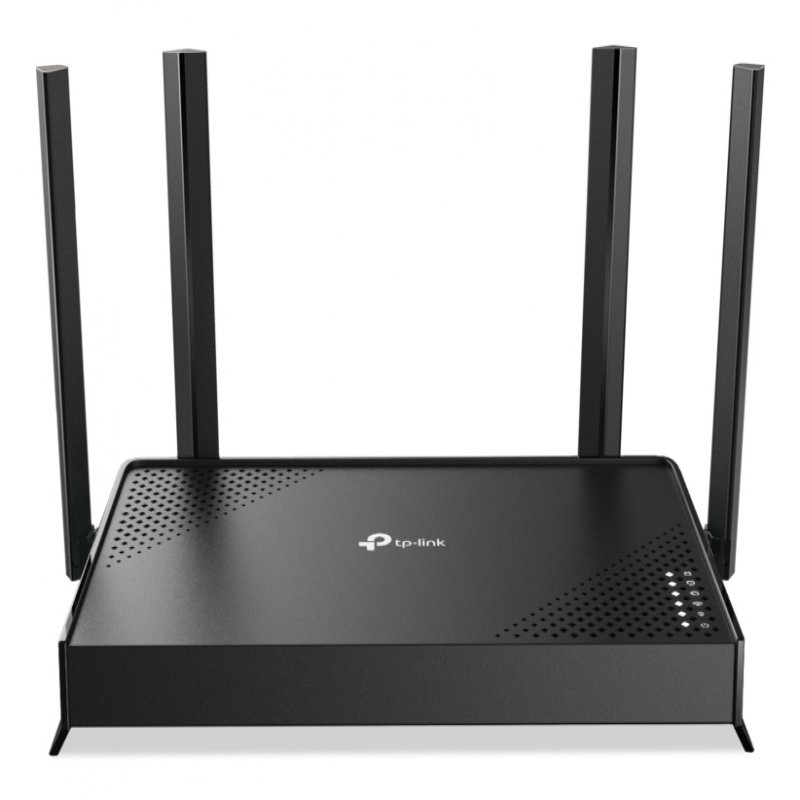

BE3600 Dual-Band Wi-Fi 7 Router
Next-Level Experience Realised with 3.6 Gbps Wi-Fi 7
Powered by Wi-Fi 7 technology, Archer BE220 delivers an incredible wireless rate of up to 3.6 Gbps, enabling your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
Full Gigabit Ports for Premium Wired Performance
Gigabit Ethernet ports deliver maximum wired speeds. Plug in PCs, smart TVs, and game consoles for fast and reliable connections
Boosted Wi-Fi Coverage Throughout Your Home
4× high-performance antennas boost Wi-Fi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.
Flexibly Create Whole Home Mesh Wi-Fi
Archer BE220 is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh Wi-Fi. No more searching for a stable connection.
- Wi-Fi Dead Zone Killer
Eliminate weak signal areas with Wi-Fi coverage for the whole house
- Smart Roaming
Uninterrupted streaming when moving around your home
- One Wi-Fi Name
No more switching Wi-Fi network names
Your Security is Our Priority
With TP-Link HomeShield, enjoy advanced security features that deliver a safe environment that protects your family and network's data and privacy.
- Home Network Scanner
Real-time network scanner to detect potential threats and security issues.
- Parental Controls
Manage time online and block inappropriate content to keep your family safe online.
- Quality of Service
Assign your favorite devices to have the fastest connections for top performance.
VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer BE220 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
Setup Got Easier than Ever
Install the Tether app and simply follow the on-screen directions. In just three easy steps your entire home can be blanketed in strong and reliable Wi-Fi.
Specs
| Wireless LAN features |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) |
2882 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (first band) |
688 Mbit/s |
| WLAN data transfer rate (second band) |
2882 Mbit/s |
| Modulation |
OFDMA |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
4 |
| USB port |
No |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Port forwarding |
Yes |
| Port triggering |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Number of guest networks (2.4 GHz) |
1 |
| Number of guest networks (5 GHz) |
1 |
| VPN server |
: OpenVPN, PPTP, L2TP, Wireguard VPN Server |
| Protocols |
| Universal Plug and Play (UPnP) |
Yes |
| Antenna |
| Antenna design |
External |
| Antenna type |
2x2 |
| Antennas quantity |
4 |
| Receive power |
97 dBmW |
| Transmit power |
30 dBmW |
| Management features |
| Quality of Service (QoS) support |
Yes |
| Reset button |
Yes |
| WPS push button |
Yes |
| MU-MIMO technology |
Yes |
| Security |
| Security algorithms |
WPA, WPA2, WPA3 |
| Firewall |
Yes |
| Firewall security |
SPI Firewall |
| Access Control List (ACL) |
Yes |
| Parental control |
Yes |
| DMZ support |
Yes |
| Power |
| Power source type |
AC |
| Output voltage |
12 V |
| Weight & dimensions |
| Width |
210 mm |
| Depth |
123.5 mm |
| Height |
37 mm |
| System requirements |
| Browser supported |
Microsoft Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser |
| Mac compatibility |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Design |
| Product type |
Tabletop router |
| Product colour |
Black |
| On/off switch |
Yes |
| Features |
| Firmware upgradeable |
Yes |
| WAN connection |
| Ethernet WAN |
Yes |
| DSL WAN |
No |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
No |
| WAN connection type |
RJ-45 |
| Certification |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Packaging content |
| Cables included |
LAN (RJ-45) |
| AC adapter included |
Yes |
| Quick installation guide |
Yes |
Features
TP-Link Archer BE220. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 7 (802.11be), WLAN data transfer rate (max): 2882 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, VPN server: : OpenVPN, PPTP, L2TP, Wireguard VPN Server. Security algorithms: WPA, WPA2, WPA3, Firewall security: SPI Firewall. Product type: Tabletop router, Product colour: Black
Product Description
Exploring the New Era of Home Wi-Fi
BE3600 Dual-Band Wi-Fi 7 Router
Next-Level Experience Realised with 3.6 Gbps Wi-Fi 7
Powered by Wi-Fi 7 technology, Archer BE220 delivers an incredible wireless rate of up to 3.6 Gbps, enabling your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
Full Gigabit Ports for Premium Wired Performance
Gigabit Ethernet ports deliver maximum wired speeds. Plug in PCs, smart TVs, and game consoles for fast and reliable connections
Boosted Wi-Fi Coverage Throughout Your Home
4× high-performance antennas boost Wi-Fi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.
Flexibly Create Whole Home Mesh Wi-Fi
Archer BE220 is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh Wi-Fi. No more searching for a stable connection.
- Wi-Fi Dead Zone Killer
Eliminate weak signal areas with Wi-Fi coverage for the whole house
- Smart Roaming
Uninterrupted streaming when moving around your home
- One Wi-Fi Name
No more switching Wi-Fi network names
Your Security is Our Priority
With TP-Link HomeShield, enjoy advanced security features that deliver a safe environment that protects your family and network's data and privacy.
- Home Network Scanner
Real-time network scanner to detect potential threats and security issues.
- Parental Controls
Manage time online and block inappropriate content to keep your family safe online.
- Quality of Service
Assign your favorite devices to have the fastest connections for top performance.
VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer BE220 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
Setup Got Easier than Ever
Install the Tether app and simply follow the on-screen directions. In just three easy steps your entire home can be blanketed in strong and reliable Wi-Fi.
