| Wireless LAN features |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) |
1800 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) |
574 Mbit/s |
| WLAN data transfer rate (second band) |
1201 Mbit/s |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
4 |
| USB port |
Yes |
| USB 2.0 ports quantity |
1 |
| Memory card slot(s) |
No |
| DC-in jack |
Yes |
| Mobile networking |
| 3G |
No |
| 4G |
No |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Full duplex |
Yes |
| Flow control support |
Yes |
| Port forwarding |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Static route |
Yes |
| Protocols |
| DHCP client |
Yes |
| DHCP server |
Yes |
| Universal Plug and Play (UPnP) |
Yes |
| Antenna |
| Antenna design |
External |
| Management features |
| Web-based management |
Yes |
| Web-based setup wizard |
Yes |
| Quality of Service (QoS) support |
Yes |
| Reset button |
Yes |
| WPS push button |
Yes |
| Security |
| Security algorithms |
64-bit WEP, 128-bit WEP, WMM, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Guest access |
Yes |
| Access Control List (ACL) |
Yes |
| IP address filtering |
Yes |
| URL filtering |
Yes |
| System event log |
Yes |
| DMZ support |
Yes |
| Network address translation (NAT) |
Yes |
| NAT functionality |
Port Forwarding, Port Triggering, UPnP, DMZ |
| Power |
| Power source type |
AC |
| Output voltage |
12 V |
| Output current |
1.5 A |
| Weight & dimensions |
| Width |
260.2 mm |
| Depth |
135 mm |
| Height |
38.6 mm |
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2 |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Design |

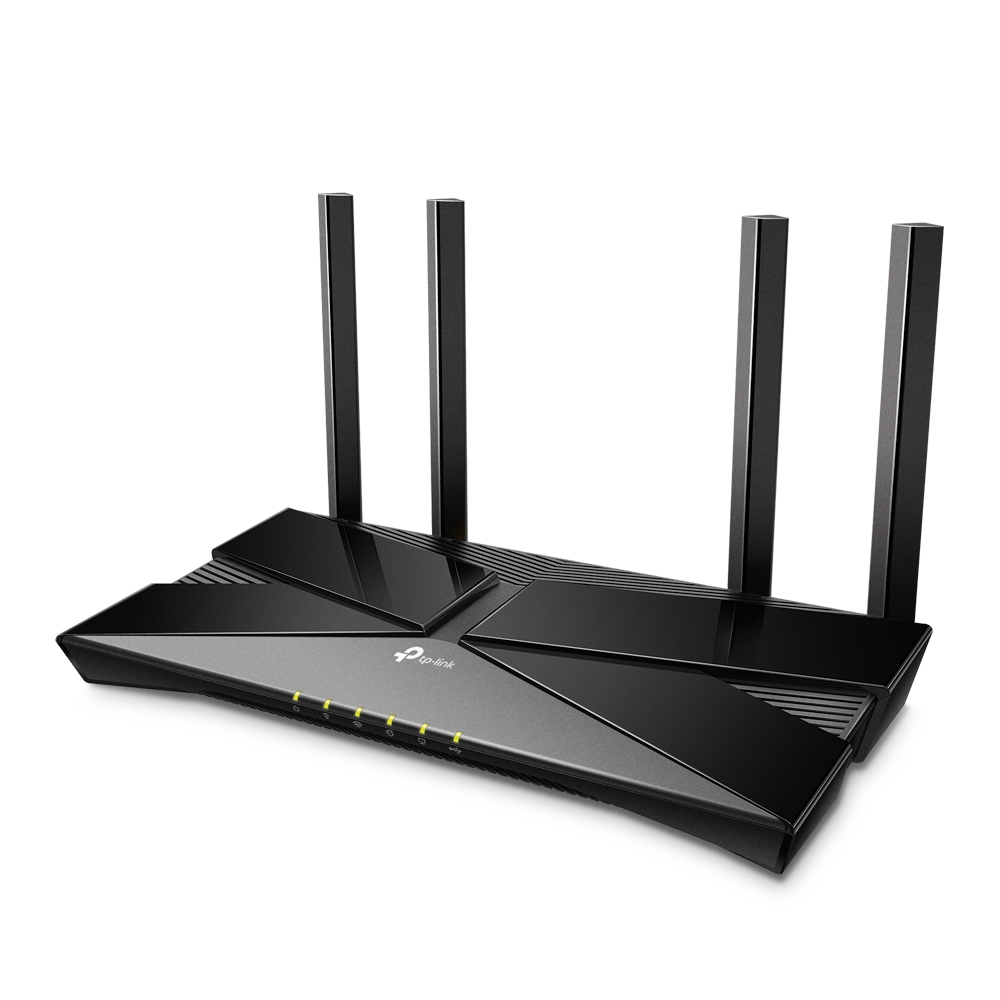

| Product type |
Tabletop router |
| Product colour |
Black |
| LED indicators |
LAN, Power, WAN, WLAN |
| On/off switch |
Yes |
| Features |
| Built-in processor |
Yes |
| Processor frequency |
1500 MHz |
| Other features |
| Compatible operating systems |
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux |
| Minimum system requirements |
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet |
| WAN connection |
| Ethernet WAN |
Yes |
| DSL WAN |
No |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
No |
| WAN connection type |
RJ-45 |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Packaging data |
| Package width |
330 mm |
| Package depth |
240 mm |
| Package height |
73 mm |
| Package weight |
890 g |
| Certification |
| Certification |
FCC, CE, RoHS |
| Packaging content |
| Cables included |
LAN (RJ-45) |
| AC adapter included |
Yes |
| Warranty card |
Yes |
| Quick installation guide |
Yes |
