Stock Status: 1x unit in stock

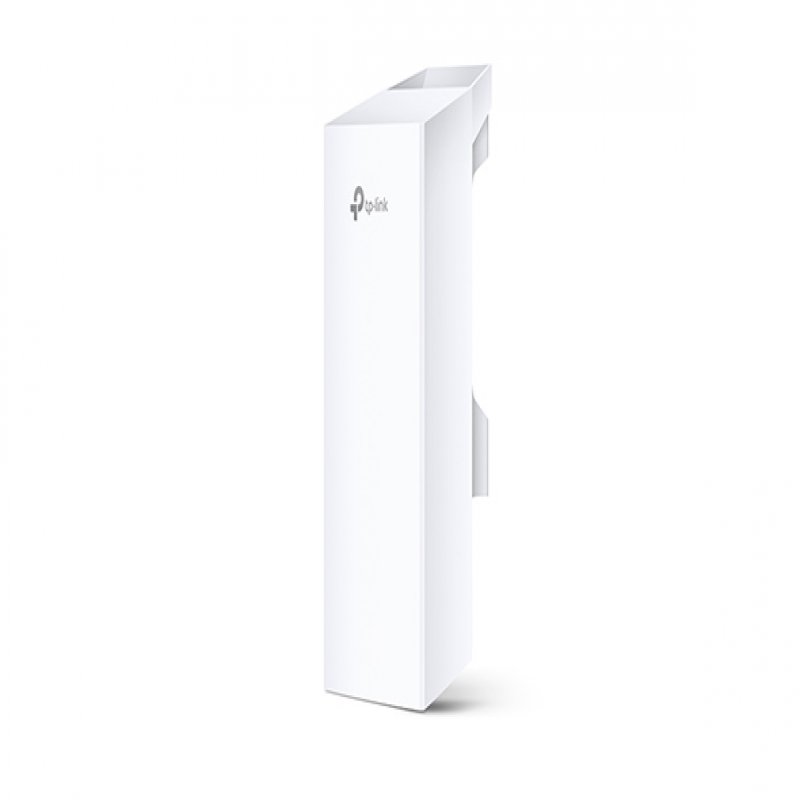

TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30? (-22?) to +70 ? (158?).
Advanced Antenna System
- Built-in High Gain Dual-Polarized Antenna
- Dedicated metal reflector ensures higher gain and lower noise interference
15km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+ , tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.
Specs
| Operational conditions |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-30 - 70 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
| Width |
224 mm |
| Depth |
75 mm |
| Height |
60 mm |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| WAN connection |
Ethernet (RJ-45) |
| Power |
| Power over Ethernet (PoE) |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Input current |
0.8 A |
| Power consumption (typical) |
13 W |
| Security |
| Security algorithms |
64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering |
Yes |
| Protocols |
| Management protocols |
TDMA |
| Antenna |
| Antenna features |
Integrated antenna |
| Antennas quantity |
1 |
| Antenna gain level (max) |
13 dBi |
| Design |
| Product colour |
White |
| Reset button |
Yes |
| LED indicators |
Yes |
| Internal |
No |
| Performance |
| Built-in processor |
Yes |
| Flash memory |
8 MB |
| Internal memory |
64 MB |
| Compatible operating systems |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Features |
| Maximum data transfer rate |
300 Mbit/s |
| Wi-Fi data rate (max) |
300 Mbit/s |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Frequency band |
5.15 - 5.85 GHz |
| Bandwidth |
5 GHz |
| Networking standards |
IEEE 802.11a, IEEE 802.11n |
| Maximum outdoor range |
15000 m |
| Receiver sensitivity |
802.11a:
54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm
802.11n:
MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,
MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,
MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,
MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm,
MCS3: -83 |
| Management features |
| Web-based management |
Yes |
| Management platform |
Pharos Control |
| Certification |
| Certification |
FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
RoHS |
| Packaging content |
| Cables included |
AC |
Features
TP-Link CPE510. Maximum data transfer rate: 300 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White
Product Description
TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30? (-22?) to +70 ? (158?).
Advanced Antenna System
- Built-in High Gain Dual-Polarized Antenna
- Dedicated metal reflector ensures higher gain and lower noise interference
15km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+ , tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.
