Stock Status: 1x unit in stock
Meet the Next-Gen Mesh Wi-Fi

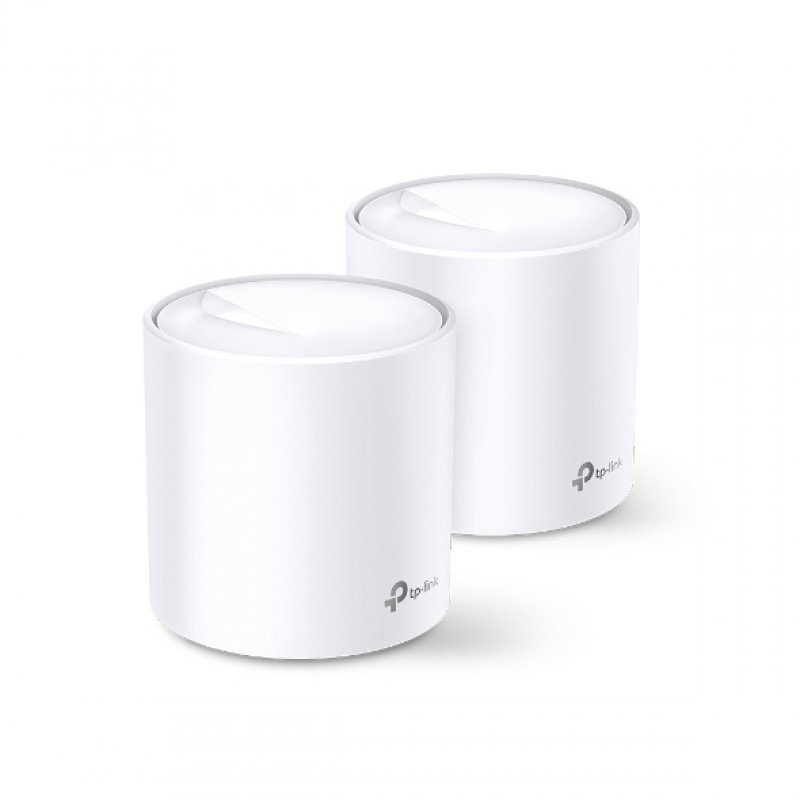

Next-Gen AX1800 Whole Home Mesh Wi-Fi 6 System
Advanced Mesh Powered by Wi-Fi 6
Armed with Wi-Fi 6 technology, Deco whole home mesh Wi-Fi is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh Wi-Fi to enjoy the future network that loads faster and connects more.
Wi-Fi Dead Zone Killer
With clearer and stronger signals enhanced by BSS Color and Beamforming, Deco X20 boosts broader whole home Wi-Fi up to 200 sqm (1-pack). Wireless connections and optional Ethernet backhaul work together to link Deco units, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another Deco.
True Seamless Roaming for Greater Experiences
TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless Wi-Fi experience.
More Connections for Immersive Streaming
Enjoy a more efficient network with 4× the average throughput on connected devices in dense environments thanks to Wi-Fi 6 technology?. Deco X20 is tested to connect over 150 devices without dragging down performance.
Faster Wi-Fi 6 Speed = No Wait
The latest 1024-QAM and higher symbol rate combines to boost speeds up to 1.8 Gbps—ideal for bandwidth-intensive tasks like cloud gaming and 4K UHD video. Families will enjoy immersive live-streaming with flawless video and clear audio without buffering.
Greatly Red uced Lag, More Fun
Wi-Fi 6 brings stable and responsive Wi-Fi connections to tomorrow's hyper-connected home. Enjoy more responsive gaming and seamless video chatting even when multiple compatible devices are connected and transmitting data at the same time.
Setup Just Got a Lot Easier
Unbox Deco, install the app and then simply follow the on-screen directions. Deco app will take care of the rest, getting your network up and running in minutes.
Wi-Fi Made Easy
Easy Management
Manage your Wi-Fi at home or away on the Deco app, including seeing all connected devices, prioritizing your own, setting up a guest network, and more.
Voice Control
Pair with Alexa to control Deco X20 with simple voice commands. Enjoy the convenient life.
All Decos Work Together
Deco X20 is compatible with every other Deco model to form a mesh network. Expand mesh Wi-Fi coverage anytime by simply adding more Decos.
Specs
| Design |
| Product colour |
White |
| Antenna type |
Internal |
| Product type |
Mesh system |
| LED indicators |
Power |
| Antennas quantity |
4 |
| Transmit power |
FCC: <30 dBm, CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz) |
| Reset button |
Yes |
| Packaging content |
| Number of products included |
2 pc(s) |
| AC adapter included |
Yes |
| Number of units included |
2 pc(s) |
| Ethernet cable |
Yes |
| Power |
| AC input voltage |
100-240 V |
| AC adapter input current |
0.4 A |
| AC input frequency |
50-60 Hz |
| AC adapter output voltage |
12 V |
| AC adapter output current |
1 A |
| Weight & dimensions |
| Width |
110 mm |
| Depth |
110 mm |
| Height |
114 mm |
| Wireless LAN features |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) |
1775 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) |
1201 Mbit/s |
| WLAN data transfer rate (second band) |
574 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Security algorithms |
WPA-PSK, WPA2-PSK, WPA3 |
| Number of guest networks (5 GHz) |
1 |
| Number of guest networks (2.4 GHz) |
1 |
| Guest access |
Yes |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
2 |
| Ethernet WAN |
Yes |
| DC-in jack |
Yes |
| Features |
| Built-in processor |
Yes |
| Processor cores |
4 |
| Quality of Service (QoS) support |
Yes |
| Firewall security |
SPI |
| DHCP client |
Yes |
| DHCP server |
Yes |
| Parental control |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Sustainability |
| Sustainability compliance |
Yes |
| Certificates |
| Compliance certificates |
CE, RoHS |
| Certification |
FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Packaging data |
| Package width |
314 mm |
| Package depth |
240 mm |
| Package height |
125 mm |
| Package weight |
1.66 kg |
Features
TP-Link AX1800 Whole Home Mesh Wi-Fi 6 System, 2-Pack. Product colour: White, Antenna type: Internal, Product type: Mesh system. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 1775 Mbit/s. Firewall security: SPI. AC input voltage: 100-240 V, AC adapter input current: 0.4 A, AC input frequency: 50-60 Hz. Compliance certificates: CE, RoHS, Certification: FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC
Product Description
Meet the Next-Gen Mesh Wi-Fi
Next-Gen AX1800 Whole Home Mesh Wi-Fi 6 System
Advanced Mesh Powered by Wi-Fi 6
Armed with Wi-Fi 6 technology, Deco whole home mesh Wi-Fi is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh Wi-Fi to enjoy the future network that loads faster and connects more.
Wi-Fi Dead Zone Killer
With clearer and stronger signals enhanced by BSS Color and Beamforming, Deco X20 boosts broader whole home Wi-Fi up to 200 sqm (1-pack). Wireless connections and optional Ethernet backhaul work together to link Deco units, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another Deco.
True Seamless Roaming for Greater Experiences
TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless Wi-Fi experience.
More Connections for Immersive Streaming
Enjoy a more efficient network with 4× the average throughput on connected devices in dense environments thanks to Wi-Fi 6 technology?. Deco X20 is tested to connect over 150 devices without dragging down performance.
Faster Wi-Fi 6 Speed = No Wait
The latest 1024-QAM and higher symbol rate combines to boost speeds up to 1.8 Gbps—ideal for bandwidth-intensive tasks like cloud gaming and 4K UHD video. Families will enjoy immersive live-streaming with flawless video and clear audio without buffering.
Greatly Red uced Lag, More Fun
Wi-Fi 6 brings stable and responsive Wi-Fi connections to tomorrow's hyper-connected home. Enjoy more responsive gaming and seamless video chatting even when multiple compatible devices are connected and transmitting data at the same time.
Setup Just Got a Lot Easier
Unbox Deco, install the app and then simply follow the on-screen directions. Deco app will take care of the rest, getting your network up and running in minutes.
Wi-Fi Made Easy
Easy Management
Manage your Wi-Fi at home or away on the Deco app, including seeing all connected devices, prioritizing your own, setting up a guest network, and more.
Voice Control
Pair with Alexa to control Deco X20 with simple voice commands. Enjoy the convenient life.
All Decos Work Together
Deco X20 is compatible with every other Deco model to form a mesh network. Expand mesh Wi-Fi coverage anytime by simply adding more Decos.
