Stock Status: 1x unit in stock
- Built for outdoor Wi-Fi applications
- Up to 300Mbps Wi-Fi with 2x2 MIMO technology
- High transmission power and high gain antennas provide a long-range coverage area
- Durable, weatherproof enclosure to withstand fair and foul weather
- Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation
- Free Auranet Controller Software lets administrators easily manage hundreds of EAPs
- Captive portal provides a convenient method for guest authentication
Specs
| Operational conditions |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-30 - 65 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| Power over Ethernet (PoE) |
Y |
| Output voltage |
24 V |
| Output current |
0.6 A |
| Power consumption (typical) |
6.3 W |
| Security |
| Security algorithms |
64-bit WEP,128-bit WEP,152-bit WEP,802.1x RADIUS,HTTPS,SSH,WPA,WPA-PSK,WPA2-PSK |
| MAC address filtering |
Y |
| Number of SSID supported |
8 |
| Protocols |
| Management protocols |
HTTP/HTTPS, SNMP, Telnet |
| Antenna |
| Antenna type |
External |
| Antennas quantity |
2 |
| Antenna gain level (max) |
5 dBi |
| Design |
| Placement |
Pole,Wall |
| Product colour |
White |
| Reset button |
Y |
| LED indicators |
Y |
| Certification |
CE, FCC, RoHS |
| Internal |
N |
| Features |
| 2.4 GHz |
Y |
| 5 GHz |
N |
| Maximum data transfer rate |
300 Mbit/s |
| Wi-Fi data rate (max) |
300 Mbit/s |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Networking standards |
IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Automatic channel selection |
Y |
| Wi-Fi Multimedia (WMM)/(WME) |
Y |
| Virtual LAN features |
Tagged VLAN |
| Rate limiting |
Y |
| Wireless isolation |
Y |
| Quality of Service (QoS) support |
Y |
| Transmitting power |
27 dBmW |
| Packaging data |
| PoE adapter included |
Y |
| Cables included |
AC |
| Mounting kit |
Y |
| Management features |
| Web-based management |
Y |
| Syslog |
Y |
Features

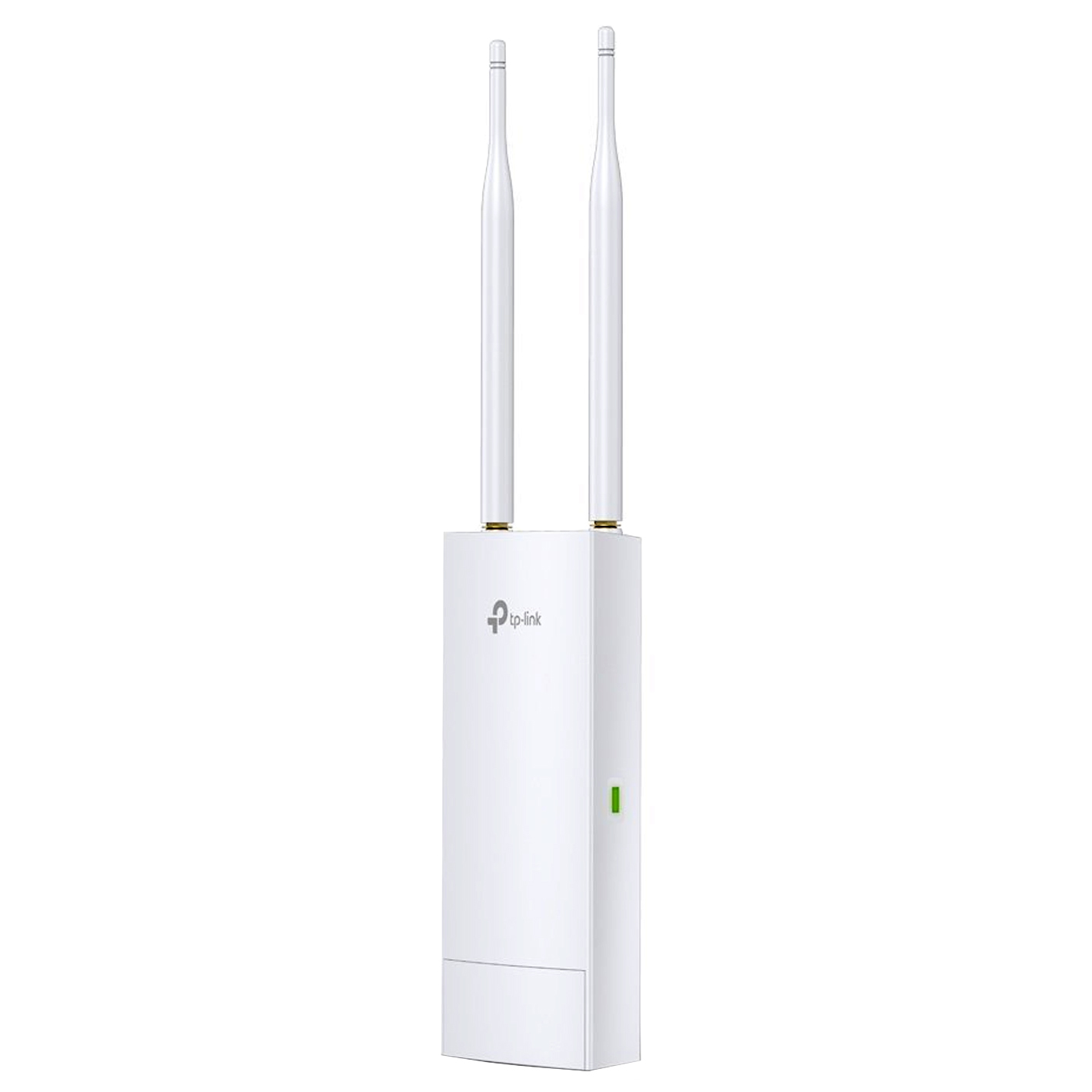

TP-LINK EAP110-Outdoor. Maximum data transfer rate: 300 Mbit/s, Wi-Fi data rate (max): 300 Mbit/s, Ethernet LAN data rates: 10,100 Mbit/s. Security algorithms: 64-bit WEP,128-bit WEP,152-bit WEP,802.1x RADIUS,HTTPS,SSH,WPA,WPA-PSK,WPA2-PSK. Management protocols: HTTP/HTTPS, SNMP, Telnet. Output voltage: 24 V, Output current: 0.6 A, Power consumption (typical): 6.3 W. Placement: Pole,Wall, Product colour: White, Certification: CE, FCC, RoHS
Product Description
- Built for outdoor Wi-Fi applications
- Up to 300Mbps Wi-Fi with 2x2 MIMO technology
- High transmission power and high gain antennas provide a long-range coverage area
- Durable, weatherproof enclosure to withstand fair and foul weather
- Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation
- Free Auranet Controller Software lets administrators easily manage hundreds of EAPs
- Captive portal provides a convenient method for guest authentication
