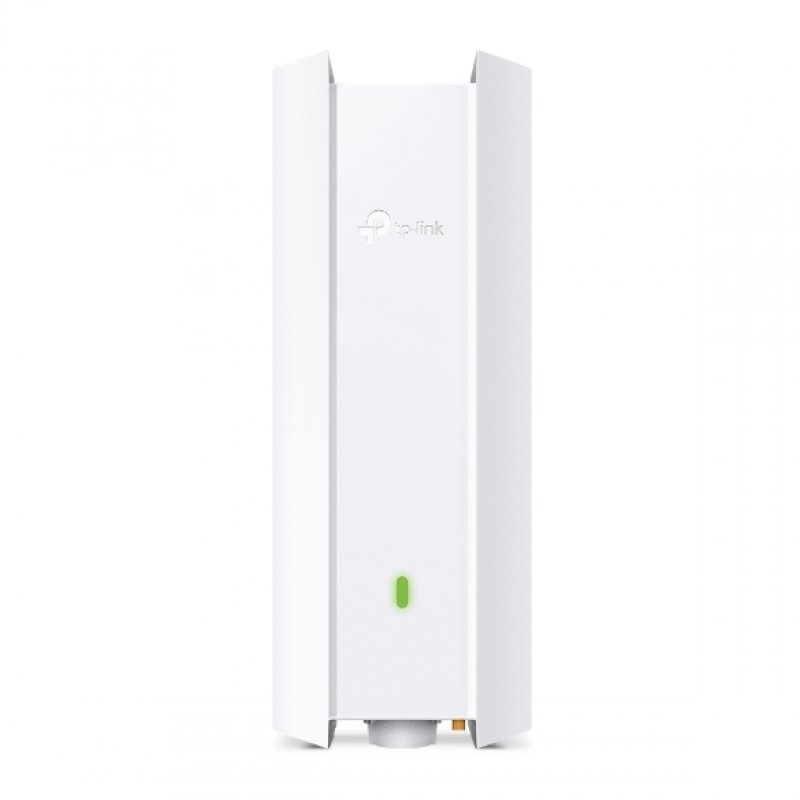

Performance-Driven WiFi 6 for Demanding Outdoor Environments
Dual-Band WiFi 6 Connectivity
Powered by the latest WiFi 6 technology, the AP delivers speeds of up to 1.8 Gbps, providing higher data rates on both 5 GHz and 2.4 GHz bands for demanding multi-user scenarios, such as outdoor swimming pools, cafés, and amusement parks.
Long-Range Coverage
Professional antennas equipped with high-power amplifiers utilize WiFi 6 technology to provide strong and expansive wireless coverage to various outdoor environments.
Connect Numerous Devices
OFDMA and MU-MIMO greatly improve multi-user efficiency to provide simultaneous connections for dozens of clients in large open areas.
Seamless Integration into Omada SDN Platform
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.
Always Stay Smooth with Fast Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
IP67 Weatherproof Enclosure for Outdoor Environments
EAP610-Outdoor is totally resistant to dust ingress, shock, vibration, and moisture, withstanding the most extreme environments.
Versatile Mounting Solutions
Our mounting kits provide flexible installation, whether inside or outside.
Multiple PoE Options for Easy Installation
The AP supports both 802.3at PoE+ and Passive PoE power supply. It can be either powered by a PoE switch or the provided PoE adapter for convenient deployment.
Easy Management with the Omada App
Follow the configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Specs
| Operational conditions |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-30 - 70 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
| Width |
280.4 mm |
| Depth |
106.5 mm |
| Height |
56.9 mm |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| Power over Ethernet (PoE) |
Yes |
| AC input voltage |
8 V |
| Input current |
0.5 A |
| Security |
| Security algorithms |
WEP, WPA, WPA2, WPA3 |
| MAC address filtering |
Yes |
| Number of SSID supported |
16 |
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Protocols |
| Management protocols |
SNMP v1/v2c |
| Antenna |
| Antenna type |
Internal |
| Antenna features |
Integrated antenna |
| Antenna gain level (max) |
5 dBi |
| Design |
| Placement |
Pole, Wall |
| Product colour |
White |
| International Protection (IP) code |
IP67 |
| LED indicators |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Features |
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| 6 GHz |
No |
| Maximum data transfer rate |
1201 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Automatic channel selection |
Yes |
| Automatic channel scanning |
Yes |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| VLAN support |
Yes |
| Rate limiting |
Yes |
| Wireless isolation |
Yes |
| Band steering |
Yes |
| Quality of Service (QoS) support |
Yes |
| BeamForming |
Yes |
| Packaging data |
| Package width |
241 mm |
| Package depth |
325 mm |
| Package height |
67 mm |
| Package weight |
1.29 kg |
| Management features |
| Web-based management |
Yes |
| Syslog |
Yes |
| Management platform |
Omada |
| Packaging content |
| Number of products included |
1 pc(s) |
| PoE adapter included |
Yes |
| Mounting kit |
Yes |
Features
TP-Link EAP610-OUTDOOR. Maximum data transfer rate: 1201 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Security algorithms: WEP, WPA, WPA2, WPA3. Management protocols: SNMP v1/v2c. Management platform: Omada. AC input voltage: 8 V, Input current: 0.5 A
