Stock Status: 1x unit in stock
BE3600 WiFi 7 Wall
Plate Access Point for
Ultra-Fast Connectivity
Optimized Wired Performance
with 2.5G PoE Ports
With 2.5G PoE input and pass-through ports, along with two Gigabit RJ45 ports, enjoy high-speed data transfers and connect multiple devices to your gigabit network. Wired devices, such as IP Phones, can be powered without the need for additional electrical cables.
Seamless Integration into the Omada SDN
Remotely manage your access points, switches, and routers across multiple sites — all from a single interface.
Specs
| Operational conditions |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
| Width |
86 mm |
| Depth |
40 mm |
| Height |
143 mm |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
3 |
| Power |
| Power over Ethernet (PoE) |
Yes |
| Power consumption (max) |
17 W |
| Security |
| MAC address filtering |
Yes |
| Number of SSID supported |
16 |
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Access Control List (ACL) |
Yes |
| Antenna |
| Antenna type |
Internal |
| Antennas quantity |
4 |
| Antenna gain level (max) |
5 dBi |
| Design |
| Placement |
Ceiling, Wall |
| Product colour |
White |
| Reset button |
Yes |
| LED indicators |
Yes |
| Performance |
| Compatible operating systems |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Features |
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| 6 GHz |
No |
| Maximum data transfer rate |
5012 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
688 Mbit/s |
| Maximum data transfer rate (5 GHz) |
2882 Mbit/s |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Number of users |
250 user(s) |
| VLAN support |
Yes |
| Airtime Fairness (ATF) |
Yes |
| BeamForming |
Yes |
| Packaging data |
| Package type |
Box |
| Certification |
| Certification |
FCC, RoHS |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Mounting kit |
Yes |
Features

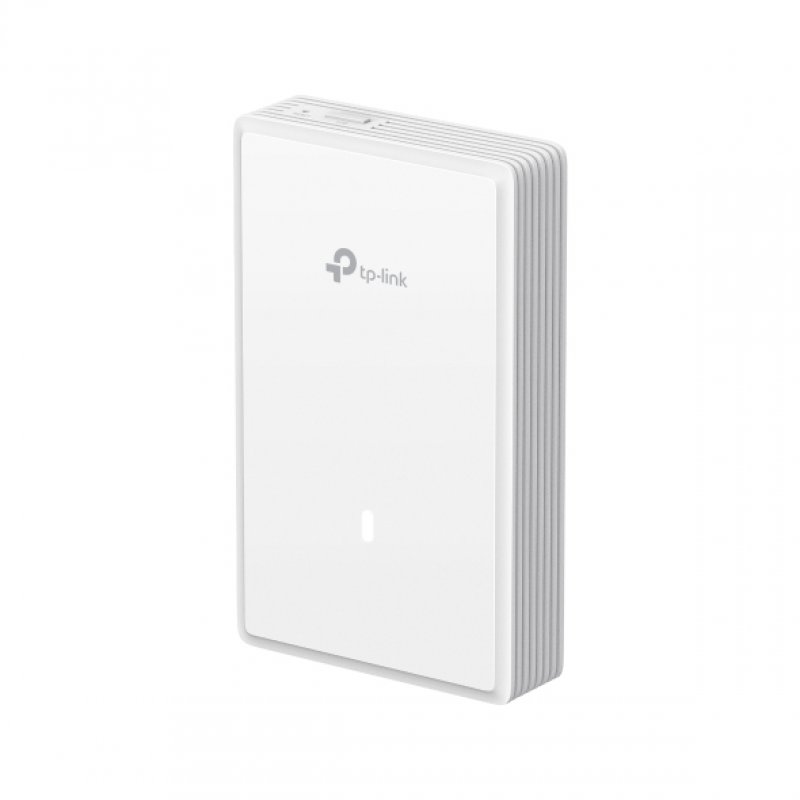

TP-Link EAP725-Wall. 2.4 GHz, 5 GHz, Maximum data transfer rate: 5012 Mbit/s, Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 17 W
Product Description
BE3600 WiFi 7 Wall
Plate Access Point for
Ultra-Fast Connectivity
Optimized Wired Performance
with 2.5G PoE Ports
With 2.5G PoE input and pass-through ports, along with two Gigabit RJ45 ports, enjoy high-speed data transfers and connect multiple devices to your gigabit network. Wired devices, such as IP Phones, can be powered without the need for additional electrical cables.
Seamless Integration into the Omada SDN
Remotely manage your access points, switches, and routers across multiple sites — all from a single interface.
