Stock Status: 1x unit in stock
Blazing Speed without Wait
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.
Professional-Standard 23 dBi Directional
Antenna for Long-range Wireless Transmission

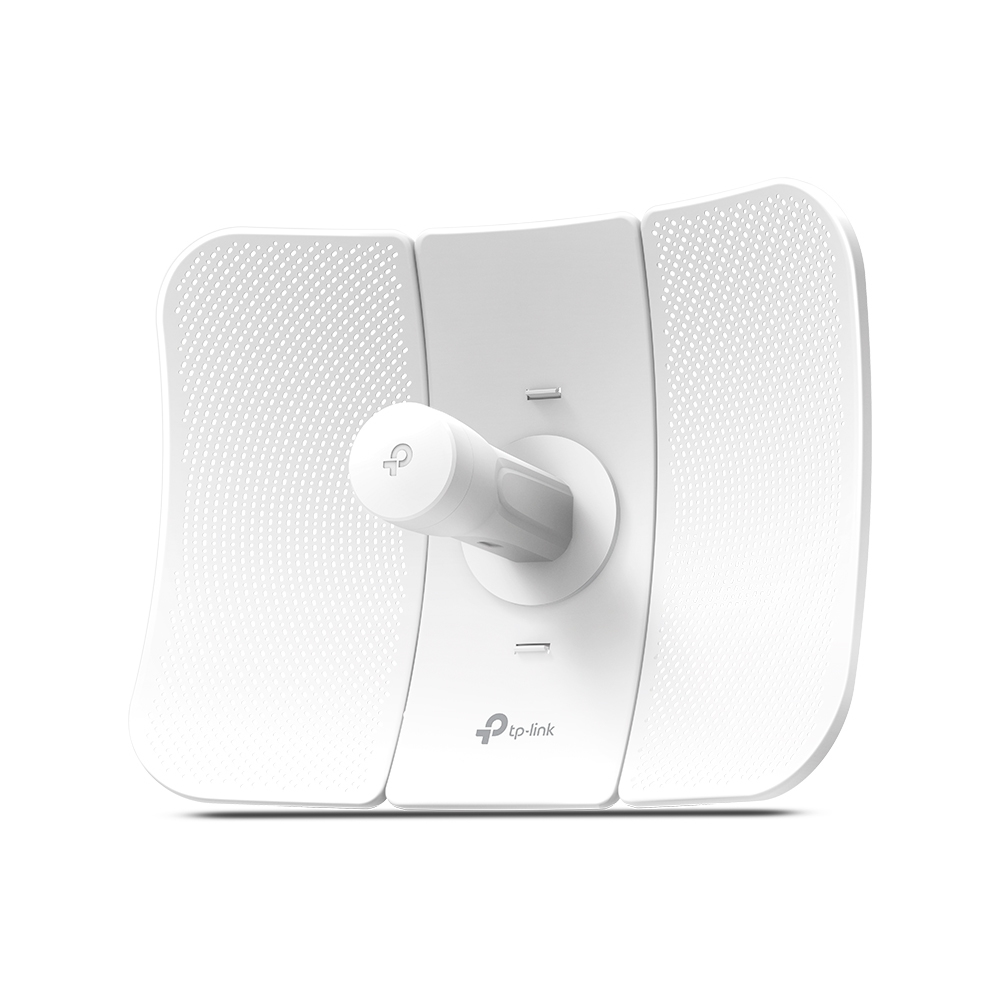

With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.
Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics, and retail.
Pharos Control – Centralized Management System
CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.
Specs
| Operational conditions |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-40 - 70 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
| Width |
366 mm |
| Depth |
280 mm |
| Height |
207 mm |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| Power over Ethernet (PoE) |
Y |
| Input voltage |
100 - 240 V |
| Input frequency |
50/60 Hz |
| Output voltage |
24 V |
| Output current |
0.6 A |
| Security |
| Security algorithms |
HTTPS,SNMP,SSH,WPA,WPA2,WPA2-AES,WPA2-PSK,WPA2-TKIP |
| MAC address filtering |
Y |
| Service Set Identifier (SSID) features |
Multiple SSIDs, SSID broadcast, SSID broadcast on/off |
| IGMP snooping |
Y |
| Auto Wireless Distribution System (WDS) |
Y |
| Protocols |
| Universal Plug and Play (UPnP) |
Y |
| Antenna |
| Antenna gain level (max) |
23 dBi |
| Design |
| Placement |
Pole |
| Product colour |
White |
| Housing material |
Plastic |
| International Protection (IP) code |
IP65 |
| Reset button |
Y |
| LED indicators |
Power |
| Certification |
CE, FCC, RoHS, IC |
| Performance |
| Built-in processor |
Y |
| Processor frequency |
750 MHz |
| Flash memory |
16 MB |
| Internal memory |
128 MB |
| Compatible operating systems |
Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX, Linux |
| Features |
| 2.4 GHz |
N |
| 5 GHz |
Y |
| Maximum data transfer rate |
867 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Frequency band |
5.15 - 5.85 GHz |
| Networking standards |
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11n |
| Channel bandwidth |
80 MHz |
| Automatic channel selection |
Y |
| MIMO |
Y |
| Wireless isolation |
Y |
| Dynamic Frequency Selection (DFS) |
Y |
| Transmitting power |
27 dBmW |
| Packaging data |
| PoE adapter included |
Y |
| Cables included |
AC |
| Quick start guide |
Y |
| Package type |
Box |
| Management features |
| Web-based management |
Y |
| Syslog |
Y |
Features
TP-LINK CPE710. Maximum data transfer rate: 867 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s, Frequency band: 5.15 - 5.85 GHz. Security algorithms: HTTPS,SNMP,SSH,WPA,WPA2,WPA2-AES,WPA2-PSK,WPA2-TKIP, Service Set Identifier (SSID) features: Multiple SSIDs, SSID broadcast, SSID broadcast on/off. Input voltage: 100 - 240 V, Input frequency: 50/60 Hz, Output voltage: 24 V. Placement: Pole, Product colour: White, Housing material: Plastic. Antenna gain level (max): 23 dBi
Product Description
Blazing Speed without Wait
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.
Professional-Standard 23 dBi Directional
Antenna for Long-range Wireless Transmission
With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.
Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics, and retail.
Pharos Control – Centralized Management System
CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.
