Stock Status: 1x unit in stock
Fast. Stable. Everywhere.

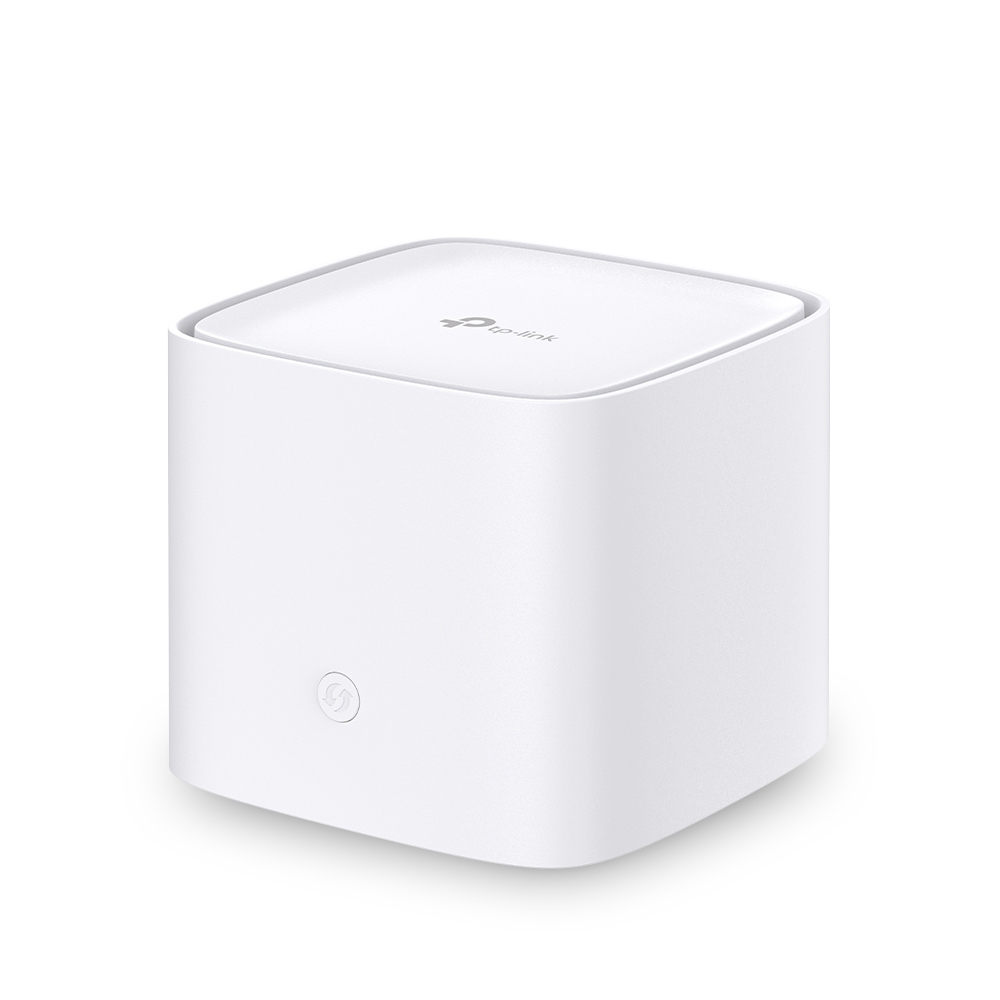

AC1200 Whole Home Mesh WiFi System
Whole Home Coverage
Empowered by EasyMesh technology, HC220-G5 provides a strong WiFi signal in every corner of your home. Wireless connections and optional Ethernet backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another HC220-G5 whenever you want.
Seamless Roaming with One Wi-Fi Name
All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless WiFi experience.
2-in-1 Router and Access Point Modes
Flexible and multifunctional, HC220-G5 includes a variety of features to serve as a router or access point. Choose the mode for actual network demands and experience maximum wireless flexibility.
Robust Network Protection
WPA3 Security
Higher password safety and enhanced protection against brute-force attacks
Multi-SSID
Create guest networks for visitors and keep your main network secure
Parental Controls
Block inappropriate content and restrict time spent online
Easy to Set Up and Use
You can set up your device in minutes, whether you prefer the intuitive Aginet app or the powerful web interface. The Aginet app allows you to manage network settings from your smart phone or tablet.
Support TR-069 Remote Management
ISPs can remotely configure and manage the devices via ACS (Auto-Configuration Server). High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols.
Aginet Solution:
End-to-End Management System for ISPs
Aginet Solutions offer ISPs powerful and flexible platforms to manage multiple devices for connected home, such as dynamic service provisioning, zero-touch firmware upgrading and remote troubleshooting and mesh WiFi diagnostics.
Specs
| Design |
| Product colour |
White |
| Antenna type |
Internal |
| Product type |
Mesh system |
| LED indicators |
Yes |
| Transmit power |
30 dBmW |
| Reset button |
Yes |
| Packaging content |
| Number of products included |
1 pc(s) |
| AC adapter included |
Yes |
| Number of units included |
1 pc(s) |
| Ethernet cable |
Yes |
| Power |
| AC input voltage |
12 V |
| AC adapter input current |
1 A |
| Weight & dimensions |
| Width |
100 mm |
| Depth |
100 mm |
| Height |
89.5 mm |
| Wireless LAN features |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) |
1200 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) |
300 Mbit/s |
| WLAN data transfer rate (second band) |
867 Mbit/s |
| Networking standards |
IEEE 802.11k, IEEE 802.11r, IEEE 802.11v |
| Security algorithms |
SSID, WMM, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3 |
| Point-to-point protocol over Ethernet (PPPoE) |
Yes |
| Dynamic IP |
Yes |
| Static IP |
Yes |
| IGMP snooping |
Yes |
| Apps supported |
TP-Link Tether |
| Protocols |
| Supported network protocols (IPv6) |
IPv4 IPv6 |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
3 |
| Ethernet WAN |
Yes |
| DC-in jack |
Yes |
| Features |
| Built-in processor |
Yes |
| Processor cores |
2 |
| Processor frequency |
0.88 GHz |
| Band steering |
Yes |
| Quality of Service (QoS) support |
Yes |
| Port forwarding |
Yes |
| Firewall security |
SPI |
| BeamForming |
Yes |
| Transmitting power (CE) |
20 dBm |
| Transmitting power (FCC) |
30 dBm |
| NAT functionality |
IPTV, IGMPV2/3 and IGMP Snooping |
| DHCP client |
Yes |
| DHCP server |
Yes |
| Mobile operating systems supported |
Android, iOS |
| Parental control |
Yes |
| SSID Broadcast |
Yes |
| Supported WAN type |
Dynamic IP/Static IP/PPPoE |
| MU-MIMO technology |
Yes |
| MIMO |
Yes |
| Operating modes |
Router Mode, Access Point Mode |
| Mobile network |
| Mobile network generation |
Not supported |
| Certificates |
| Compliance certificates |
CE, Federal Communications Commission (FCC) |
| Certification |
CE, FCC |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
Features
TP-Link AC1200 Whole Home Mesh WiFi System. Product colour: White, Antenna type: Internal, Product type: Mesh system. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 1200 Mbit/s. Processor frequency: 0.88 GHz, Firewall security: SPI, Transmitting power (CE): 20 dBm. Supported network protocols (IPv6): IPv4 IPv6. AC input voltage: 12 V, AC adapter input current: 1 A
Product Description
Fast. Stable. Everywhere.
AC1200 Whole Home Mesh WiFi System
Whole Home Coverage
Empowered by EasyMesh technology, HC220-G5 provides a strong WiFi signal in every corner of your home. Wireless connections and optional Ethernet backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another HC220-G5 whenever you want.
Seamless Roaming with One Wi-Fi Name
All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless WiFi experience.
2-in-1 Router and Access Point Modes
Flexible and multifunctional, HC220-G5 includes a variety of features to serve as a router or access point. Choose the mode for actual network demands and experience maximum wireless flexibility.
Robust Network Protection
WPA3 Security
Higher password safety and enhanced protection against brute-force attacks
Multi-SSID
Create guest networks for visitors and keep your main network secure
Parental Controls
Block inappropriate content and restrict time spent online
Easy to Set Up and Use
You can set up your device in minutes, whether you prefer the intuitive Aginet app or the powerful web interface. The Aginet app allows you to manage network settings from your smart phone or tablet.
Support TR-069 Remote Management
ISPs can remotely configure and manage the devices via ACS (Auto-Configuration Server). High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols.
Aginet Solution:
End-to-End Management System for ISPs
Aginet Solutions offer ISPs powerful and flexible platforms to manage multiple devices for connected home, such as dynamic service provisioning, zero-touch firmware upgrading and remote troubleshooting and mesh WiFi diagnostics.
