Stock Status: 1x unit in stock

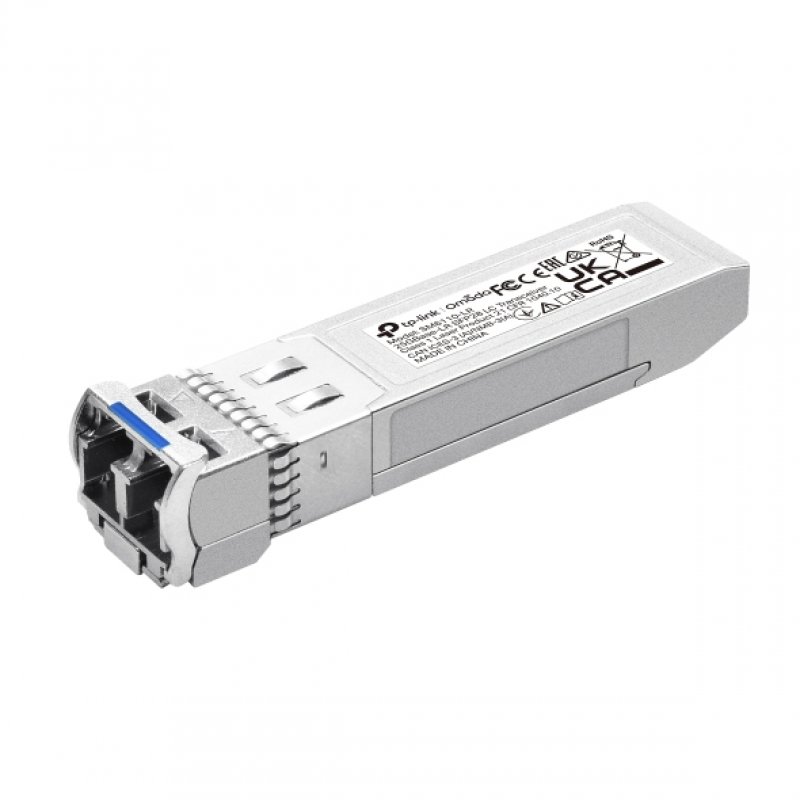

The SM6110-LR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-LR high performance 1310 nm single-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
Specs
| Operational conditions |
| Minimum operating temperature |
0 °C |
| Maximum operating temperature |
70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
| Width |
57 mm |
| Depth |
14 mm |
| Height |
12 mm |
| Power |
| Input voltage |
3.3 V |
| Performance |
| SFP transceiver type |
Fiber optic |
| Maximum data transfer rate |
25780 Mbit/s |
| Interface type |
SFP+ |
| Fiber cable diameters supported (core/cladding) |
9/125 µm |
| Maximum transfer distance |
10000 m |
| Wavelength |
1310 nm |
| Features |
| Product colour |
Grey |
| Hot-Plug support |
Yes |
| Hot-swap |
Yes |
| Packaging content |
| Quantity per pack |
1 pc(s) |
Features
TP-Link SM6110-LR. SFP transceiver type: Fiber optic, Maximum data transfer rate: 25780 Mbit/s, Interface type: SFP+. Product colour: Grey. Input voltage: 3.3 V. Width: 57 mm, Depth: 14 mm, Height: 12 mm. Quantity per pack: 1 pc(s)
Product Description
The SM6110-LR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-LR high performance 1310 nm single-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
