Stock Status: 1x unit in stock
Unprecedented Thin Design with 11mm

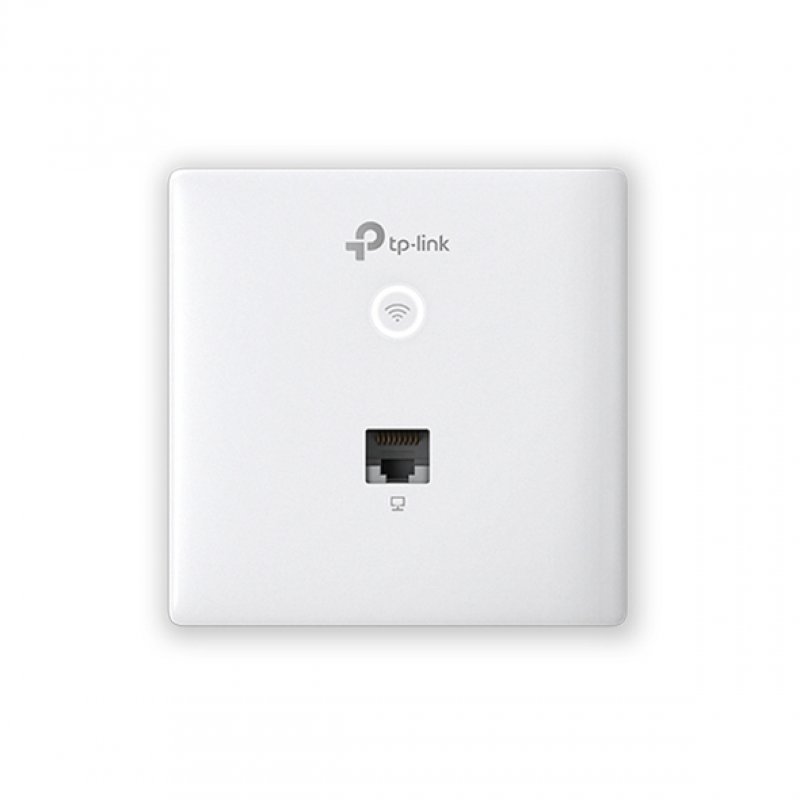

Omada EAP230-Wall
AC Access Point
Private Connection for Every Room.
EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user.
MU-MIMO + Dual-Band: Faster Connection for More Devices
802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various devices.
Seamlessly Blends with any Décor
The same size and shape as a light switch or power outlet faceplate to fit in perfectly in any room.
High-Speed Gigabit Port
Equipped with a Gigabit port to deliver the fastest possible wired transmission.
Effortless Deployment with Power over Ethernet
802.3af/802.3at PoE support means there’s no need for extra wiring. Plug in existing Ethernet cables to transmit both power and data to your APs.
Quick, Simple Installation
1.Detach and remove the faceplate of the junction box.
2.Plug an Ethernet cable in to the port.
3.Secure the Access Point to the wall using the provided screws.
4.Press the faceplate back into position.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Specs
| Operational conditions |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
| Width |
86.8 mm |
| Depth |
30.2 mm |
| Height |
86.8 mm |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| Power over Ethernet (PoE) |
Y |
| Power consumption (typical) |
7 W |
| Security |
| Security algorithms |
64-bit WEP,128-bit WEP,152-bit WEP,SNMP,SNMPv2,WPA,WPA-PSK,WPA2-Enterprise,WPA2-PSK |
| MAC address filtering |
Y |
| Number of SSID supported |
16 |
| Access Control List (ACL) |
Y |
| Protocols |
| Secure File Transfer Protocol (SFTP) using SSH v2 |
Y |
| Antenna |
| Antenna type |
Internal |
| Antennas quantity |
2 |
| Antenna gain level (max) |
3.6 dBi |
| Design |
| Placement |
In-wall |
| Product colour |
White |
| LED indicators |
Operation |
| Certification |
CE, RoHS |
| Performance |
| Compatible operating systems |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Features |
| 2.4 GHz |
Y |
| 5 GHz |
Y |
| Maximum data transfer rate |
1000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
300 Mbit/s |
| Maximum data transfer rate (5 GHz) |
867 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Networking standards |
IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Cabling technology |
10/100/1000Base-T(X) |
| Automatic channel selection |
Y |
| VLAN support |
Y |
| Rate limiting |
Y |
| Quality of Service (QoS) support |
Y |
| Transmitting power (CE) |
20 - 23 dBm |
| Packaging data |
| Number of products included |
2 pc(s) |
| Management features |
| Web-based management |
Y |
| Syslog |
Y |
Features
TP-LINK Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point. Maximum data transfer rate: 1000 Mbit/s, Maximum data transfer rate (2.4 GHz): 300 Mbit/s, Maximum data transfer rate (5 GHz): 867 Mbit/s. Security algorithms: 64-bit WEP,128-bit WEP,152-bit WEP,SNMP,SNMPv2,WPA,WPA-PSK,WPA2-Enterprise,WPA2-PSK. Power consumption (typical): 7 W. Placement: In-wall, Product colour: White, LED indicators: Operation. Antenna type: Internal, Antenna gain level (max): 3.6 dBi
Product Description
Unprecedented Thin Design with 11mm
Omada EAP230-Wall
AC Access Point
Private Connection for Every Room.
EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user.
MU-MIMO + Dual-Band: Faster Connection for More Devices
802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various devices.
Seamlessly Blends with any Décor
The same size and shape as a light switch or power outlet faceplate to fit in perfectly in any room.
High-Speed Gigabit Port
Equipped with a Gigabit port to deliver the fastest possible wired transmission.
Effortless Deployment with Power over Ethernet
802.3af/802.3at PoE support means there’s no need for extra wiring. Plug in existing Ethernet cables to transmit both power and data to your APs.
Quick, Simple Installation
1.Detach and remove the faceplate of the junction box.
2.Plug an Ethernet cable in to the port.
3.Secure the Access Point to the wall using the provided screws.
4.Press the faceplate back into position.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
