TP-Link Omada EAP230 - V1 - Wireless Router 1GbE - Wi-Fi 5 - Dual Band - Wall-mountable EAP230-WALL - C2000
[EAP230-WALL]

Name: TP-Link Omada EAP230 - V1 - Wireless Router 1GbE - Wi-Fi 5 - Dual Band - Wall-mountable EAP230-WALL - C2000
Brand: tp-link
SKU: EAP230-WALL
Price: 68.00 GBP
Availability: InStock

TEMPORARILY OUT OF STOCK

Part Number: EAP230-WALL

Manufacturer: tp-link

Condition: New

Short Description:

TP-Link Omada EAP230 - V1 - Wireless Router 1GbE - Wi-Fi 5 - Dual Band - Wall-mountable EAP230-WALL

£68.00
£81.60 - Inc VAT

Thank you for your request, PLEASE RE-TYPE THE PART NUMBER IN THE SEARCH BOX

Stock Status: 1x unit in stock

Unprecedented Thin Design with 11mm

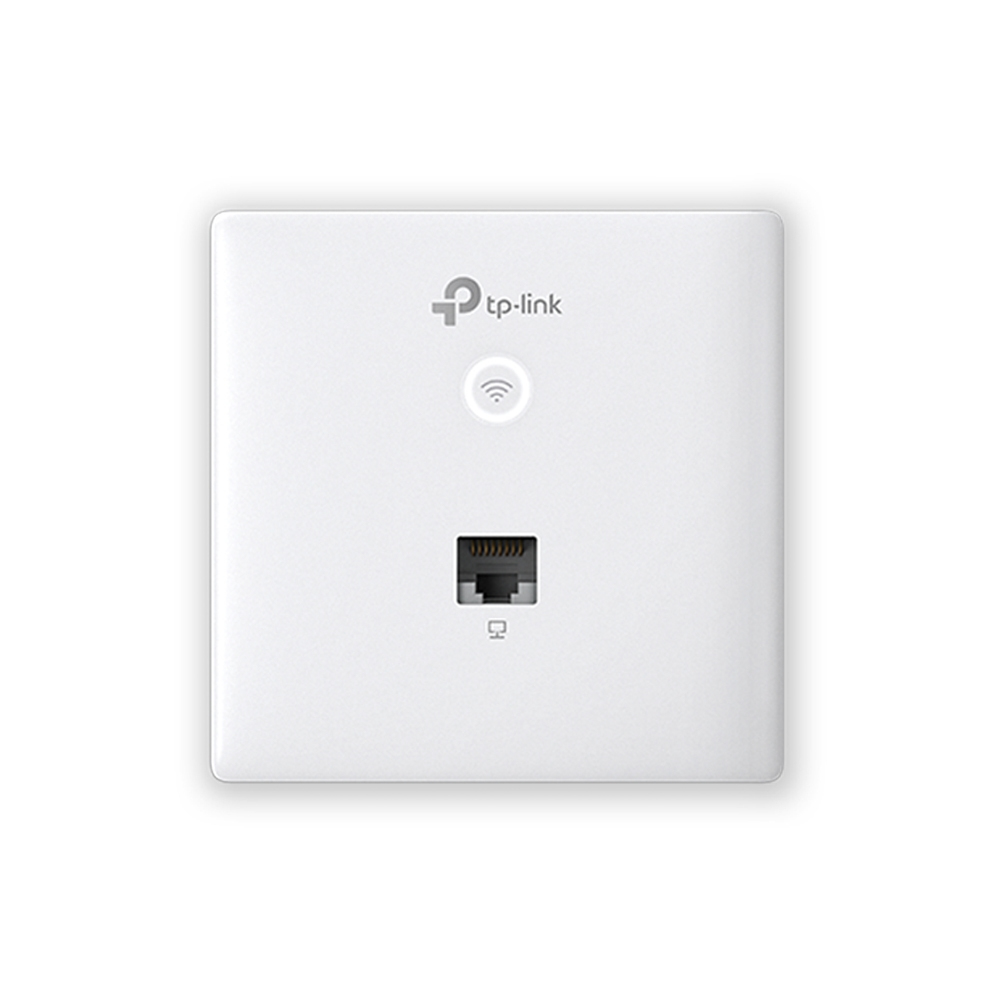

Omada EAP230-Wall
AC Access Point

Private Connection for Every Room.
EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user.

MU-MIMO + Dual-Band: Faster Connection for More Devices
802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various devices.

Seamlessly Blends with any Décor
The same size and shape as a light switch or power outlet faceplate to fit in perfectly in any room.

High-Speed Gigabit Port
Equipped with a Gigabit port to deliver the fastest possible wired transmission.

Effortless Deployment with Power over Ethernet
802.3af/802.3at PoE support means there’s no need for extra wiring. Plug in existing Ethernet cables to transmit both power and data to your APs.

Quick, Simple Installation
1.Detach and remove the faceplate of the junction box.
2.Plug an Ethernet cable in to the port.
3.Secure the Access Point to the wall using the provided screws.
4.Press the faceplate back into position.

Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Reviews

Specs

Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	86.8 mm
Depth	86.8 mm
Height	30.2 mm
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
WAN connection	Ethernet (RJ-45)
Power
Power over Ethernet (PoE)	Yes
Power consumption (typical)	9 W
Power consumption (max)	25.5 W
Security
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	16
Access Control List (ACL)	Yes
Protocols
Secure File Transfer Protocol (SFTP) using SSH v2	Yes
Antenna
Antenna type	Internal
Antenna features	Integrated antenna
Antennas quantity	2
Antenna gain level (max)	3.6 dBi
Design
Placement	Wall
Product colour	White
Reset button	Yes
LED indicators	Operation
Performance
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Logistics data
Harmonized System (HS) code	85176990
Features
2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	1167 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Cabling technology	10/100/1000Base-T(X)
Automatic channel selection	Yes
Automatic channel scanning	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN, VLAN mapping
Rate limiting	Yes
Band steering	Yes
Quality of Service (QoS) support	Yes
BeamForming	Yes
Transmitting power (CE)	20 - 23 dBm
Packaging data
Package width	118 mm
Package depth	130 mm
Package height	47 mm
Package weight	210 g
Management features
Web-based management	Yes
Syslog	Yes
Technical details
Compliance certificates	CE, RoHS
Packaging content
Number of products included	2 pc(s)
Mounting kit	Yes
Quick start guide	Yes
Sustainability
Sustainability compliance	Yes

Features

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1167 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 25.5 W

Product Description

Unprecedented Thin Design with 11mm
Omada EAP230-Wall
AC Access Point

Private Connection for Every Room.
EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user.

MU-MIMO + Dual-Band: Faster Connection for More Devices
802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various devices.

Seamlessly Blends with any Décor
The same size and shape as a light switch or power outlet faceplate to fit in perfectly in any room.

High-Speed Gigabit Port
Equipped with a Gigabit port to deliver the fastest possible wired transmission.

Effortless Deployment with Power over Ethernet
802.3af/802.3at PoE support means there’s no need for extra wiring. Plug in existing Ethernet cables to transmit both power and data to your APs.

Quick, Simple Installation
1.Detach and remove the faceplate of the junction box.
2.Plug an Ethernet cable in to the port.
3.Secure the Access Point to the wall using the provided screws.
4.Press the faceplate back into position.

Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
