Stock Status: 1x unit in stock
Smart. Secure. Easy.
Always Know What Matters Most to You.

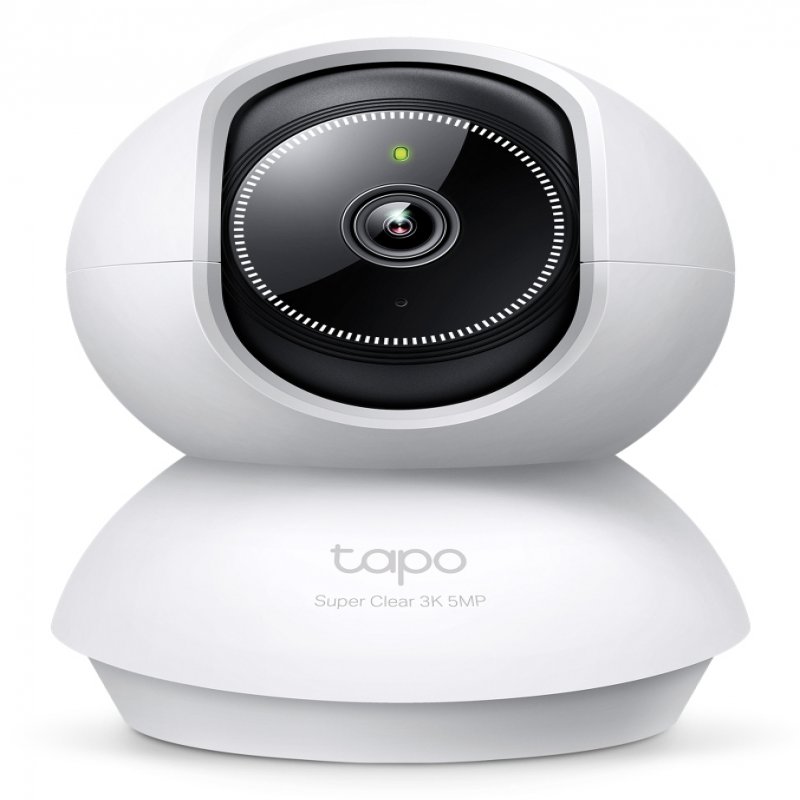

Pan/Tilt AI Home Security Wi-Fi Camera
Razor-Sharp 3K 5MP View
Record all of life's wonderful moments with the realistic 3K 5MP. Zoom to see the sharp views.
Smart AI Detection and Notification
Smart AI identifies people, pets, and vehicles while recognizing a baby crying and other sounds, notifying users as needed.
Motion Detection and Notifications
Customizable Your Activity Zones to Know What Matters
Control what alerts you receive by creating multiple custom activity zones around areas that matter.
Pan/Tilt View
Get detailed look at your room
A wide range of coverage to capture every moment.
Precise Smart Motion Tracking
Always Know What Matters Most to You
When motion activity is detected, tracks and follows the subject to keep it within view.
Flexible Storage Choices
Save recorded videos on the microSD Card†(up to 512 GB) or by using Tapo Care‡ cloud storage services.
Two-Way Audio
Use crisp two-way audio to communicate with nosy roommates, family, or even mischievous pets.
Protect Your Privacy from the Very Beginning
Set customizable block zones to keep certain spaces from being recorded so you never need to worry about personal moments being leaked.
Filter out any personal spaces, like your bed, and only record areas that require monitoring such as doorways and windows to ensure your privacy remains just that—private.
Tapo Sharing
Funny Clips
To share funny records with your families or guests.
Specs
| Image sensor |
| Sensor type |
CMOS |
| Number of sensors |
1 |
| Optical sensor size |
25.4 / 3 mm (1 / 3") |
| Progressive scan |
Yes |
| Lens system |
| Number of lenses |
1 |
| Zoom capability |
No |
| Focal length range |
4 mm |
| Maximum aperture number |
2 |
| Minimum aperture number |
2 |
| Camera |
| Camera pan control |
Yes |
| Camera tilt control |
Yes |
| Field of view (FOV) angle |
88° |
| Lens viewing angle, horizontal |
75° |
| Lens viewing angle, vertical |
41° |
| Lens viewing angle, diagonal |
88° |
| Tilt angle range |
0 - 69° |
| Pan range |
0 - 340° |
| Video |
| Maximum resolution |
2880 x 1620 pixels |
| Total megapixels |
5 MP |
| Video formats supported |
H.264 |
| Supported graphics resolutions |
2880 x 1620 |
| Supported video modes |
1620p |
| Frame rate |
30 fps |
| Noise reduction |
Yes |
| Image quality adjustment |
DNR |
| Back Light Compensation (BLC) |
Yes |
| Audio |
| Built-in speaker(s) |
Yes |
| Audio system |
2-way |
| Audio formats supported |
RTSP |
| Built-in microphone |
Yes |
| Networking |
| Wi-Fi |
Yes |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Supported network protocols |
TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Live view |
Yes |
| Security |
| Built-in siren |
Yes |
| Siren noise level |
99 dB |
| Video motion detection |
Yes |
| Security algorithms |
128-bit AES, SSL/TLS, WPA, WPA2-PSK |
| Intelligent Video Surveillance (IVS) system features |
Human detection, Line crossing detection, Pet detection, Vehicle detection |
| Power |
| Power source type |
AC, DC |
| AC input voltage |
100-240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (typical) |
3 W |
| Power consumption (max) |
5.7 W |
| DC output voltage |
9 |
| DC output current |
0.6 A |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Storage relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
| Width |
85.4 mm |
| Depth |
86.8 mm |
| Height |
117.7 mm |
| Weight |
190 g |
| Cable length |
3 m |
| Management features |
| Cloud-managed |
Yes |
| Reset button |
Yes |
| Packaging content |
| Number of cameras |
1 |
| Packaging content |
Tapo C230 Camera
Power Adapter
Quick Start Guide
Mounting Anchors
Mounting Screws
Mounting Template
Camera Base |
| Night vision |
| Night vision |
Yes |
| Night vision distance |
12 m |
| LED type |
IR |
| Infra-red wavelength |
850 nm |
| Storage |
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash) |
| Maximum memory card size |
512 GB |
| Design |
| Mounting type |
Ceiling/Desk |
| Product colour |
White |
| Form factor |
Bulb |
| Performance |
| Type |
IP security camera |
| Placement supported |
Indoor |
| Connectivity technology |
Wireless |
| Virtual assistant |
Amazon Alexa & Google Assistant |
| Packaging data |
| Package width |
160 mm |
| Package depth |
190 mm |
| Package height |
110 mm |
| Package weight |
430 g |
| Package type |
Box |
Features
TP-Link Tapo C230. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wireless. Mounting type: Ceiling/Desk, Product colour: White, Form factor: Bulb. Field of view (FOV) angle: 88°, Lens viewing angle, horizontal: 75°, Lens viewing angle, vertical: 41°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Focal length range: 4 mm
