Stock Status: 1x unit in stock
Internet For A Brighter Life

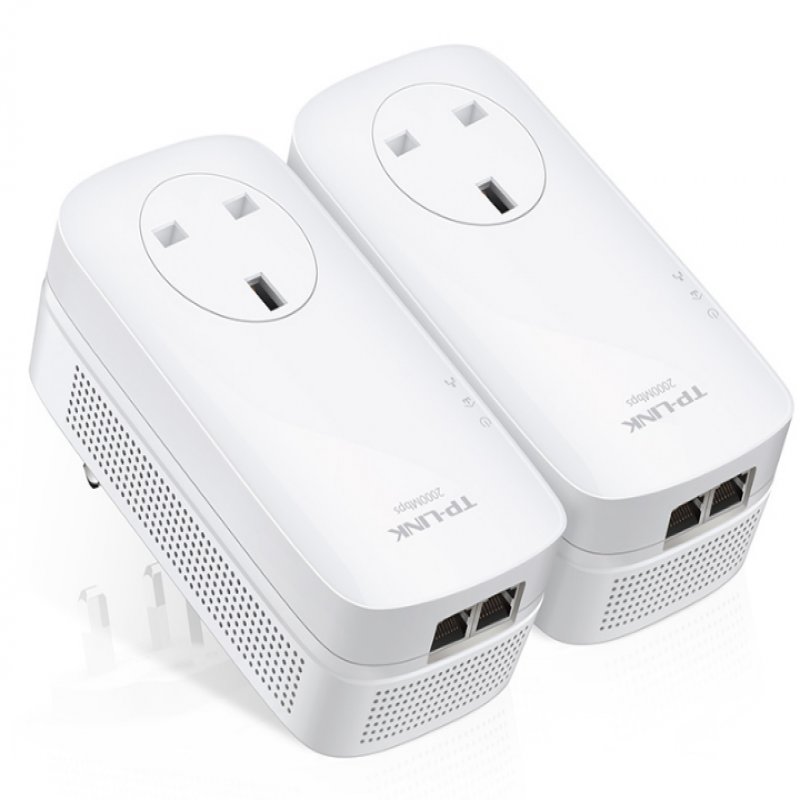

AV2000 Gigabit Passthrough Powerline Starter Kit
TL-PA9020P KIT
Take Your Powerline Network to the Next Level
With advanced HomePlug AV2 MIMO, the TL-PA9020p delivers high speed of up to 2000Mbps over Powerline to provide superior network performance that supports all of your online needs. With a lag-free connection, you will never miss out again.
An Exclusive Fast Lane for Your Favorite Devices
The TL-PA9020p creates fast, high performance wired connections that support all of your favorite devices, like 4K HDTV. Now you can plug in to enjoy an exclusive fast lane out of a
crowded network without slowing down.
Fluid Streaming and Gaming with 2X2 MIMO
2X2 MIMO with Beamforming Technology significantly improves speeds,
especially during peak hours.
More Stable Connections
2X2 MIMO is like adding extra lanes to a highway. It establishes multiple simultaneous connection for you to enjoy higher speeds and greater stability.
Enhanced Long Distance Performance
2X2 MIMO with Beamforming Technology also offers the benefit of improved coverage throughout the home, particularly for previously hard to reach outlets.
Wiring up with Gigabit Speeds
Connect to Gigabit speeds for your smart TVs, game consoles, computers and
network attached storage devices. Just use an Ethernet cable to attach your devices
to the Powerline adapter to get started!
Simplified Network for a Better Life
Plug, Pair and Play!
1. First, connect your TL-PA9020P to the router
2. Then, plug in another one wherever you need extra coverage
3. Finally, press the “Pair” button on each adapter
Congratulations! You are ready to enjoying seamless wired connections.
No Power Outlet
is Going to Waste
The integrated power socket means that you can still get power from the outlet for your other devices. Simply plug your device into the integrated socket the same way you would with a normal wall outlet. The built-in noise filter also helps to eliminate electrical signal noise that might otherwise affect powerline transmission performance.
Specs
| Weight & dimensions |
| Width |
130.7 mm |
| Depth |
71.7 mm |
| Height |
66.3 mm |
| Power |
| Power consumption (typical) |
5.8 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
230 V |
| AC input frequency |
50 Hz |
| Current |
12 A |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Packaging content |
| Quantity per pack |
2 pc(s) |
| Quick installation guide |
Yes |
| Cables included |
LAN (RJ-45) |
| System requirements |
| Windows operating systems supported |
Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ult |
| Linux operating systems supported |
Yes |
| Mac compatibility |
Yes |
| Mac operating systems supported |
macOS |
| Design |
| Product colour |
White |
| Antenna type |
Internal |
| LED indicators |
LAN, Power |
| Certification |
CE |
| Performance |
| Maximum data transfer rate |
1000 Mbit/s |
| Ethernet LAN |
Yes |
| Networking standards |
IEEE 1901, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Built-in power socket |
Yes |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
2 |
| PowerLine standard |
HomePlug AV2 |
| Modulation |
OFDM |
| Security algorithms |
128-bit AES |
| Maximum operating distance |
300 m |
| Plug and Play |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85171800 |
| Certificates |
| Compliance certificates |
RoHS |
| Packaging data |
| Package width |
230 mm |
| Package depth |
190 mm |
| Package height |
100 mm |
| Package weight |
780 g |
Features
TP-Link AV2000 2-Port Gigabit Passthrough Powerline Starter Kit. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 1901, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Ethernet LAN interface type: Gigabit Ethernet. Power consumption (typical): 5.8 W, Power consumption (standby): 0.5 W, AC input voltage: 230 V. Product colour: White, Antenna type: Internal, LED indicators: LAN, Power. Windows operating systems supported: Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64,..., Mac operating systems supported: macOS. Width: 130.7 mm, Depth: 71.7 mm, Height: 66.3 mm
Product Description
Internet For A Brighter Life
AV2000 Gigabit Passthrough Powerline Starter Kit
TL-PA9020P KIT
Take Your Powerline Network to the Next Level
With advanced HomePlug AV2 MIMO, the TL-PA9020p delivers high speed of up to 2000Mbps over Powerline to provide superior network performance that supports all of your online needs. With a lag-free connection, you will never miss out again.
An Exclusive Fast Lane for Your Favorite Devices
The TL-PA9020p creates fast, high performance wired connections that support all of your favorite devices, like 4K HDTV. Now you can plug in to enjoy an exclusive fast lane out of a
crowded network without slowing down.
Fluid Streaming and Gaming with 2X2 MIMO
2X2 MIMO with Beamforming Technology significantly improves speeds,
especially during peak hours.
More Stable Connections
2X2 MIMO is like adding extra lanes to a highway. It establishes multiple simultaneous connection for you to enjoy higher speeds and greater stability.
Enhanced Long Distance Performance
2X2 MIMO with Beamforming Technology also offers the benefit of improved coverage throughout the home, particularly for previously hard to reach outlets.
Wiring up with Gigabit Speeds
Connect to Gigabit speeds for your smart TVs, game consoles, computers and
network attached storage devices. Just use an Ethernet cable to attach your devices
to the Powerline adapter to get started!
Simplified Network for a Better Life
Plug, Pair and Play!
1. First, connect your TL-PA9020P to the router
2. Then, plug in another one wherever you need extra coverage
3. Finally, press the “Pair” button on each adapter
Congratulations! You are ready to enjoying seamless wired connections.
No Power Outlet
is Going to Waste
The integrated power socket means that you can still get power from the outlet for your other devices. Simply plug your device into the integrated socket the same way you would with a normal wall outlet. The built-in noise filter also helps to eliminate electrical signal noise that might otherwise affect powerline transmission performance.
