Stock Status: 1x unit in stock

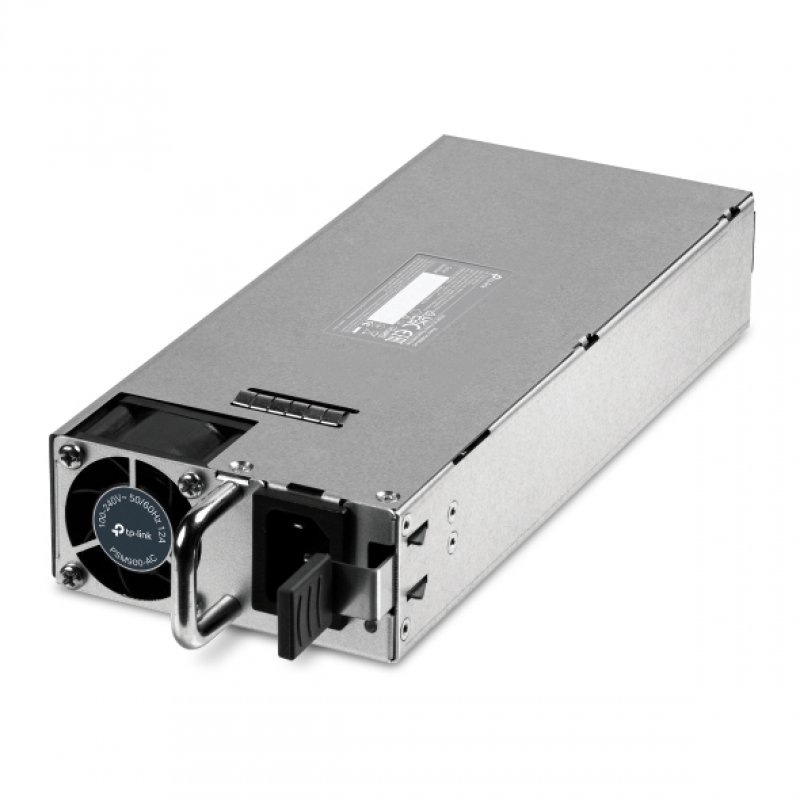

The TP-Link Power Supply Module PSM900-AC is an AC-input and DC-output power supply module. It can convert the input voltage to 53.5 Volts with a maximum output power of 900 Watts. The power supply module is fully hot-swappable, helping to ensure no system interruption during installation or replacement. The TP-Link Power Supply Module is applicable to multiple TP-Link Omada and TP-Link Omada Pro switch models, such as SG6428XHP, SG6654XHP, S6500-24GP4XF, 6500-48GP6XF, S6500-24MPP4Y, and S6500-48MPP6Y.
Specs
| Power |
| Total power |
900 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Maximum input current (@110V) |
12 A |
| Maximum input current (@220V) |
10 A |
| Power protection features |
Over current, Over voltage, Short circuit, Under voltage |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
| Width |
95.8 mm |
| Depth |
259.5 mm |
| Height |
40.1 mm |
| Other features |
| Mounting type |
Rack mounting |
| Performance |
| Compatible products |
SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y, S6500-48MPP6Y |
| Design |
| Product colour |
Metallic |
| LED indicators |
Yes |
| Logistics data |
| Quantity per pack |
1 pc(s) |
Features
TP-Link PSM900-AC. Total power: 900 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Compatible products: SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y, S6500-48MPP6Y. Product colour: Metallic. Width: 95.8 mm, Depth: 259.5 mm, Height: 40.1 mm. Quantity per pack: 1 pc(s)
Product Description
The TP-Link Power Supply Module PSM900-AC is an AC-input and DC-output power supply module. It can convert the input voltage to 53.5 Volts with a maximum output power of 900 Watts. The power supply module is fully hot-swappable, helping to ensure no system interruption during installation or replacement. The TP-Link Power Supply Module is applicable to multiple TP-Link Omada and TP-Link Omada Pro switch models, such as SG6428XHP, SG6654XHP, S6500-24GP4XF, 6500-48GP6XF, S6500-24MPP4Y, and S6500-48MPP6Y.
