Stock Status: 1x unit in stock

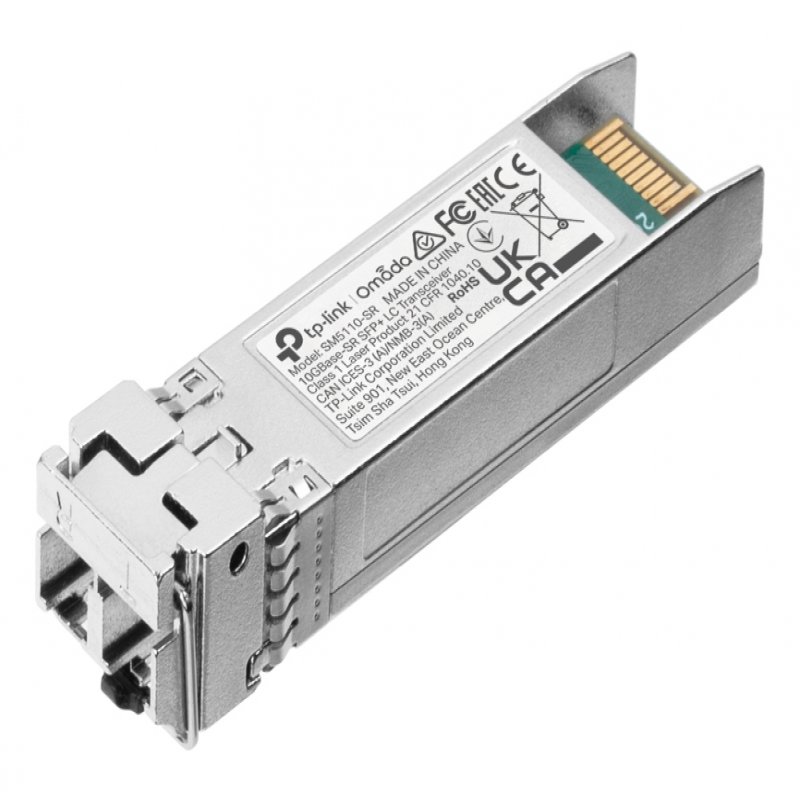

The SM5110-SR (TL-SM5110-SR) is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
Specs
| Operational conditions |
| Minimum operating temperature |
0 °C |
| Maximum operating temperature |
70 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 80 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
| Width |
61.3 mm |
| Depth |
14.5 mm |
| Height |
12.2 mm |
| Power |
| Input voltage |
3.3 V |
| Performance |
| SFP transceiver type |
Fiber optic |
| Maximum data transfer rate |
10000 Mbit/s |
| Interface type |
SFP+ |
| Multi-mode fiber (MMF) supported |
Yes |
| Fiber optic connector |
LC (UPC) |
| Fiber cable diameters supported (core/cladding) |
50/125,62.5/125 µm |
| Maximum transfer distance |
300 m |
| Wavelength |
850 nm |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Features |
| Product colour |
Silver |
| Hot-swap |
Yes |
| Packaging data |
| Package width |
220 mm |
| Package depth |
270 mm |
| Package height |
275 mm |
| Package weight |
60 g |
| Certification |
| Certification |
FCC, CE |
| Packaging content |
| Quantity per pack |
1 pc(s) |
Features
TP-Link Omada 10Gbase-SR SFP+ LC Transceiver SPEC: 850nm Multi-mode, LC Duplex Connector, Up to 300m Distance. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver. Input voltage: 3.3 V. Certification: FCC, CE. Width: 61.3 mm, Depth: 14.5 mm, Height: 12.2 mm
Product Description
The SM5110-SR (TL-SM5110-SR) is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
