Stock Status: 1x unit in stock

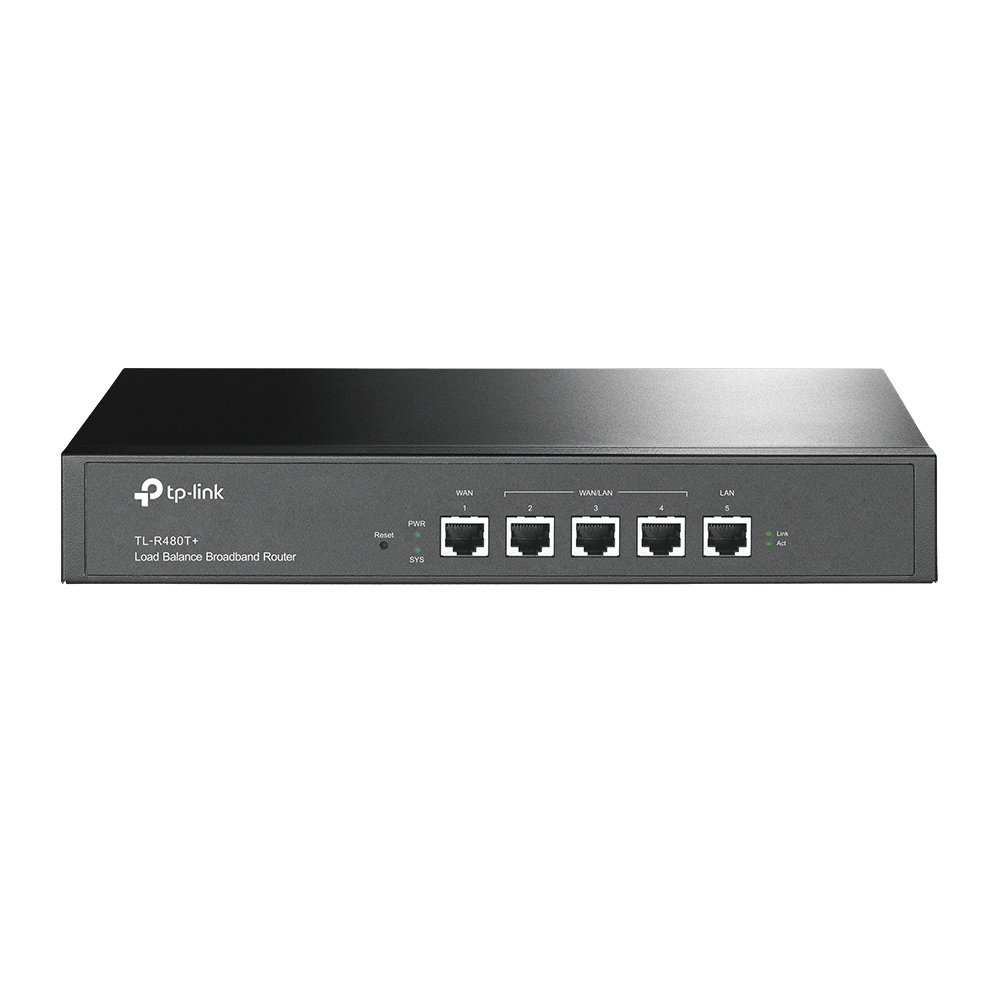

The TL-R480T+ load balance broadband router is a wise choice for small business. It brings you high return on investment with low overhead. Featured with three changeable WAN/LAN ports, TL-R480T+ supports up to 4 WAN ports, which can satisfy various Internet access requirements through one device. TL-R480T+ integrates multiple load balancing strategies, advanced QoS and strong firewall to provide you with consistent network uptime and reliable Ethernet connectivity. Moreover, it is easy to manage the TL-R480T+ via a web-based utility, which makes building and managing your network more convenient.
Three Changeable WAN/LAN Ports
The TL-R480T+ features three changeable ports that can be set to either LAN or WAN, allowing the router to support up to four WAN ports to satisfy various Internet access requirements through one device. The router also has an integrated smart load balancing function which automatically selects the most efficient line according to load and bandwidth requirements, providing users with consistent network uptime and reliable Ethernet connectivity.
Abundant Security Features
For defense against external threats, TL-R470T+ can automatically detect and block Denial of service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death and other related threats. Moreover, this router provides IP/MAC/URL/Web filtering functions, which forcefully prevent attacks from intruders and viruses. For better management of the internal network, TL-R480T+ allows administrators to set rules to block specific web sites and IM/P2P applications with just one click, and restrict staff to use specific services such as FTP, HTTP and SMTP.
Efficient Access Management
By setting a PPPoE Server to allocate PPPoE accounts to private network users, the router only allows users with legal accounts that have passed authentication to access the Internet. Cooperating with IP-based Bandwidth Control, it is capable of confining bandwidth usage of certain PPPoE accounts. Moreover, the E-Bulletin function is able to release a bulletin in the form of webpage to certain user groups periodically, which notifies the users about the expiration date of the PPPoE account. With the above features, the router will prioritize different users in surfer jurisdictions for more efficient management.
Safety Minded Enterprise Investments
Professional lightning protection technology is designed to prevent electrical surges from penetrating the interior of the device, to be discharged harmlessly into the Earth. This router is designed to prevent lightning damage of up to 4Kv in the well-grounded connection conditions. This feature ensures that networking infrastructure investments remain as safe as possible from one of Mother Nature’s more violent elements.
Specs
| Networking |
| Networking standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Static route |
Yes |
| VLAN support |
Yes |
| Auto MDI/MDI-X |
No |
| Policy-based routing |
Yes |
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Power |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Weight & dimensions |
| Width |
294 mm |
| Depth |
180 mm |
| Height |
44 mm |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
6 |
| Fiber ports quantity |
1 |
| DC-in jack |
Yes |
| RS-232 ports |
1 |
| Security |
| Security algorithms |
IPSec |
| MAC address filtering |
Yes |
| URL filtering |
Yes |
| IP address filtering |
Yes |
| DoS attack prevention |
Yes |
| Access Control List (ACL) |
Yes |
| IP-MAC-Port binding |
Yes |
| System event log |
Yes |
| Wireless LAN features |
| Dual-band |
No |
| Protocols |
| DHCP client |
Yes |
| DHCP server |
Yes |
| DMZ support |
Yes |
| Management protocols |
SNTP, HTTP |
| Supported network protocols |
TCP/IP, DHCP, ICMP |
| Management features |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Universal Plug and Play (UPnP) |
No |
| Reset button |
Yes |
| Firmware upgradeable |
Yes |
| Other features |
| Switch type |
Unmanaged |
| Maximum data transfer rate |
0.1 Gbit/s |
| Dimensions (WxDxH) |
294 x 180 x 44 mm |
| Connectivity technology |
Wired |
| Input frequency |
50/60 Hz |
| Dimensions (W x D x H) (imperial) |
294.6 x 180.3 x 43.2 mm (11.6 x 7.1 x 1.7") |
| Mobile networking |
| Mobile network generation |
Not supported |
| Design |
| Product colour |
Black |
| Rack mounting |
Yes |
| Rack capacity |
1U |
| LED indicators |
LAN, Power, Status, WAN |
| WAN connection |
| Ethernet WAN |
Yes |
| Features |
| Flash memory |
16 MB |
| Internal memory |
128 MB |
| Windows operating systems supported |
Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Minimum system requirements |
1 |
Features
TP-Link TL-R480T+. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Cabling technology: 10/100Base-T(X), Ethernet LAN data rates: 10,100 Mbit/s. Management protocols: SNTP, HTTP, Supported network protocols: TCP/IP, DHCP, ICMP. Security algorithms: IPSec. Flash memory: 16 MB, Internal memory: 128 MB, Windows operating systems supported: Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home.... Product colour: Black, Rack capacity: 1U, LED indicators: LAN, Power, Status, WAN
Product Description
The TL-R480T+ load balance broadband router is a wise choice for small business. It brings you high return on investment with low overhead. Featured with three changeable WAN/LAN ports, TL-R480T+ supports up to 4 WAN ports, which can satisfy various Internet access requirements through one device. TL-R480T+ integrates multiple load balancing strategies, advanced QoS and strong firewall to provide you with consistent network uptime and reliable Ethernet connectivity. Moreover, it is easy to manage the TL-R480T+ via a web-based utility, which makes building and managing your network more convenient.
Three Changeable WAN/LAN Ports
The TL-R480T+ features three changeable ports that can be set to either LAN or WAN, allowing the router to support up to four WAN ports to satisfy various Internet access requirements through one device. The router also has an integrated smart load balancing function which automatically selects the most efficient line according to load and bandwidth requirements, providing users with consistent network uptime and reliable Ethernet connectivity.
Abundant Security Features
For defense against external threats, TL-R470T+ can automatically detect and block Denial of service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death and other related threats. Moreover, this router provides IP/MAC/URL/Web filtering functions, which forcefully prevent attacks from intruders and viruses. For better management of the internal network, TL-R480T+ allows administrators to set rules to block specific web sites and IM/P2P applications with just one click, and restrict staff to use specific services such as FTP, HTTP and SMTP.
Efficient Access Management
By setting a PPPoE Server to allocate PPPoE accounts to private network users, the router only allows users with legal accounts that have passed authentication to access the Internet. Cooperating with IP-based Bandwidth Control, it is capable of confining bandwidth usage of certain PPPoE accounts. Moreover, the E-Bulletin function is able to release a bulletin in the form of webpage to certain user groups periodically, which notifies the users about the expiration date of the PPPoE account. With the above features, the router will prioritize different users in surfer jurisdictions for more efficient management.
Safety Minded Enterprise Investments
Professional lightning protection technology is designed to prevent electrical surges from penetrating the interior of the device, to be discharged harmlessly into the Earth. This router is designed to prevent lightning damage of up to 4Kv in the well-grounded connection conditions. This feature ensures that networking infrastructure investments remain as safe as possible from one of Mother Nature’s more violent elements.
