Stock Status: 1x unit in stock

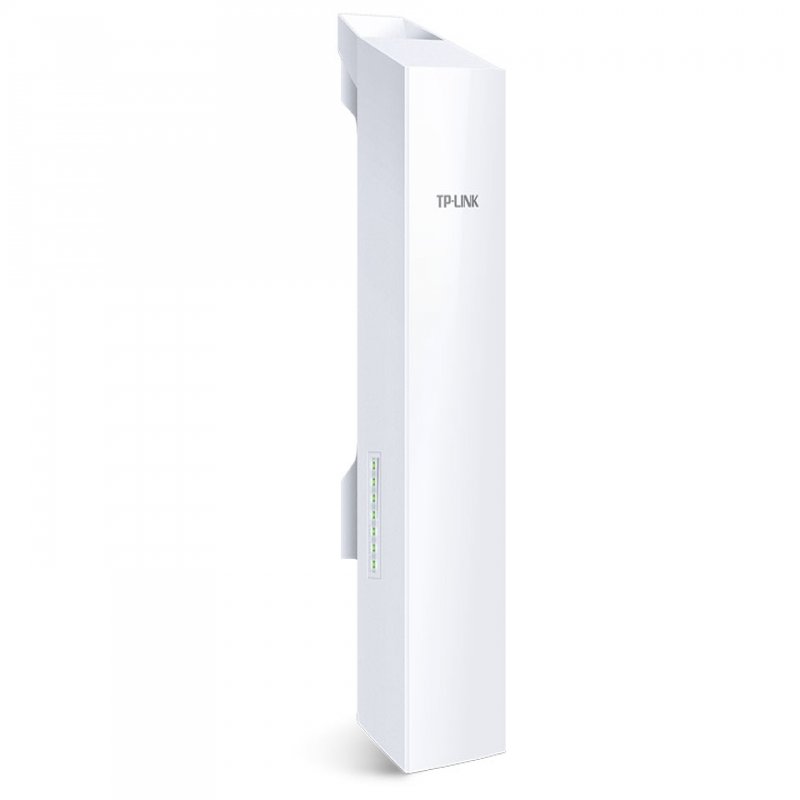

TP-LINK’s 2.4GHz 300Mbps 12dBi Outdoor CPE, the CPE220 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE220 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE220 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30? (-22?) to +70 ? (158?).
Advanced Antenna System
- Built-in High Gain Dual-Polarized Antenna
- Dedicated metal reflector ensures higher gain and lower noise interference
13km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 13km+, tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE220 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE220 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
PharOS
User-friendly web-based management system allows professionals to do more specific configurations.
Specs
| Operational conditions |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-30 - 70 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
| Width |
110 mm |
| Depth |
57 mm |
| Height |
33.5 mm |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 2.0 ports quantity |
0 |
| Internal RJ-45 ports quantity |
1 |
| DC-in jack |
Yes |
| Power |
| Power over Ethernet (PoE) |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Input current |
0.8 A |
| Output voltage |
24 V |
| Output current |
1 A |
| Power consumption (max) |
10.8 W |
| Security |
| Security algorithms |
64-bit WEP, 128-bit WEP, 152-bit WEP, AES, HTTPS, SNMP, SSH, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering |
Yes |
| IP address filtering |
Yes |
| Service Set Identifier (SSID) features |
SSID broadcast on/off |
| Number of SSID supported |
1 |
| IGMP snooping |
Yes |
| Auto Wireless Distribution System (WDS) |
Yes |
| Protocols |
| Universal Plug and Play (UPnP) |
Yes |
| DHCP client |
Yes |
| Management protocols |
TDMA |
| Antenna |
| Antenna type |
Internal |
| Antenna features |
Integrated antenna |
| Antennas quantity |
2 |
| Antenna gain level (max) |
12 dBi |
| Design |
| Product colour |
White |
| International Protection (IP) code |
IPX5 |
| Reset button |
Yes |
| LED indicators |
Power |
| Internal |
No |
| Performance |
| Built-in processor |
Yes |
| Flash memory |
8 MB |
| Internal memory |
64 MB |
| Features |
| 2.4 GHz |
Yes |
| 5 GHz |
No |
| Maximum data transfer rate |
300 Mbit/s |
| Wi-Fi data rate (max) |
300 Mbit/s |
| Frequency band |
2.4 - 2.483 GHz |
| Bandwidth |
2.4 GHz |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Channels quantity |
5 channels |
| Channel bandwidth |
40 MHz |
| Automatic channel selection |
Yes |
| VLAN support |
Yes |
| RTS/CTS threshold |
Yes |
| Management features |
| Web-based management |
Yes |
| Management platform |
Pharos Control |
| Certification |
| Certification |
- CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
- RoHS, IPX5 |
| Packaging content |
| AC adapter included |
Yes |
| Mounting kit |
Yes |
| Quick start guide |
Yes |
Features
TP-Link CPE220. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, AES, HTTPS, SNMP, SSH, SSID, TKIP, WPA, WPA-PSK, WPA2,.... Power over Ethernet (PoE). Product colour: White. Power consumption (max): 10.8 W
Product Description
TP-LINK’s 2.4GHz 300Mbps 12dBi Outdoor CPE, the CPE220 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE220 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE220 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30? (-22?) to +70 ? (158?).
Advanced Antenna System
- Built-in High Gain Dual-Polarized Antenna
- Dedicated metal reflector ensures higher gain and lower noise interference
13km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 13km+, tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE220 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE220 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
PharOS
User-friendly web-based management system allows professionals to do more specific configurations.
