Stock Status: 1x unit in stock
- Simultaneous 300Mbps on 2.4GHz and 867Mbps on 5GHz totals 1200Mbps Wi-Fi speeds
- Free EAP Controller Software lets administrators easily manage hundreds of EAPs
- Support Power over Ethernet(802.3af) for convenient and affordable installation
- Captive portal provides a convenient method for guest authentication
- Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
Specs
| Wireless LAN features |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) |
867 Mbit/s |
| WLAN data transfer rate (first band) |
300 Mbit/s |
| WLAN data transfer rate (second band) |
867 Mbit/s |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| USB port |
N |
| Memory card slot(s) |
N |
| DC-in jack |
Y |
| Mobile networking |
| 3G |
N |
| 4G |
N |
| Networking |
| Ethernet LAN |
Y |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Networking standards |
IEEE 802.3af |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Antenna |
| Antenna type |
Internal |
| Management features |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Security |
| Security algorithms |
64-bit WEP,128-bit WEP,152-bit WEP,SSID,WPA,WPA-PSK,WPA2,WPA2-PSK |
| Guest access |
Y |
| Power |
| Power source type |
AC |
| Output voltage |
12 V |
| Output current |
1.5 A |
| Power supply |
10.15 W |
| Weight & dimensions |
| Width |
180 mm |
| Depth |
180 mm |
| Height |
47.5 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Design |
| Product type |
Portable router |
| Product colour |
White |
| Wall mountable |
Y |
| Indication light |
Y |
| LED indicators |
Power,WLAN |
| On/off switch |
Y |
| WAN connection |
| Ethernet WAN |
Y |
| DSL WAN |
N |
| SIM card slot |
N |
| 3G/4G USB modem compatibility |
N |
| Packaging data |
| AC adapter included |
Y |
| Quick start guide |
Y |
| Package type |
Box |
Features

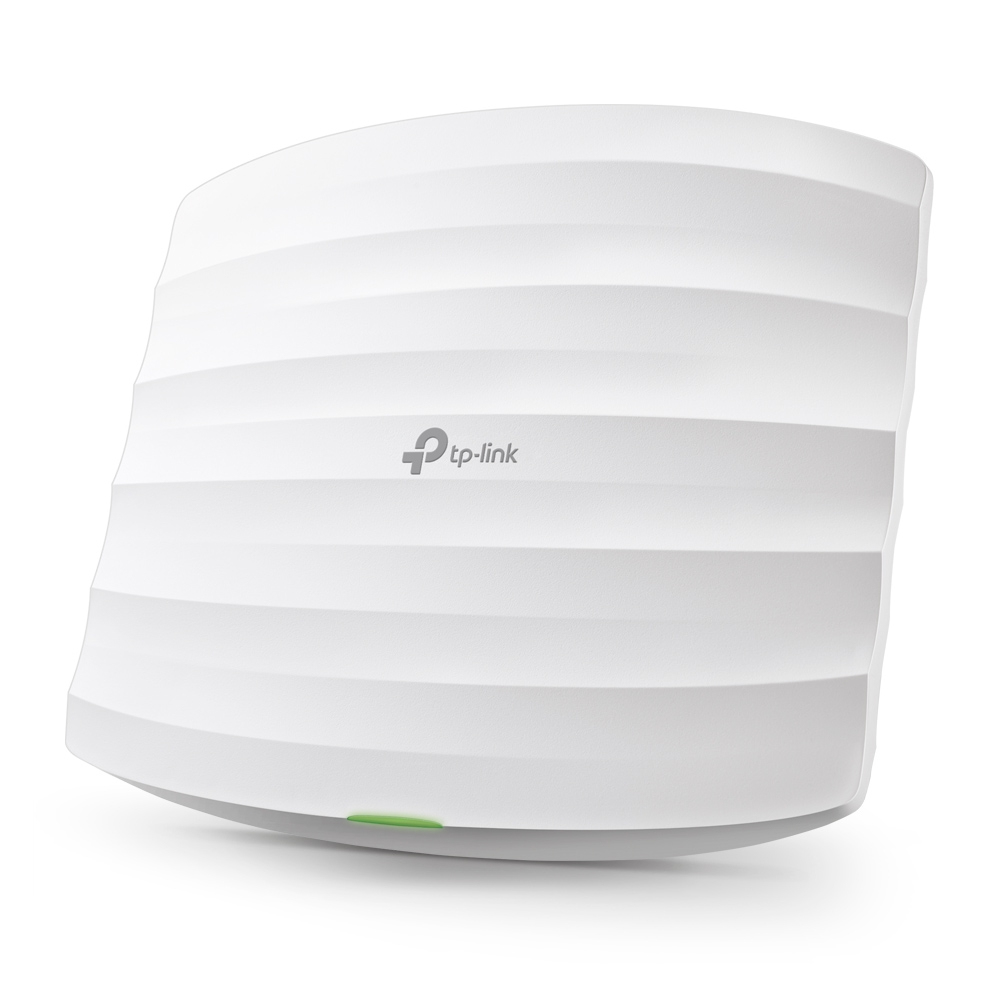

TP-LINK EAP225. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Networking standards: IEEE 802.3af, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: 64-bit WEP,128-bit WEP,152-bit WEP,SSID,WPA,WPA-PSK,WPA2,WPA2-PSK. Product type: Portable router, Product colour: White, LED indicators: Power,WLAN. Antenna type: Internal
Product Description
- Simultaneous 300Mbps on 2.4GHz and 867Mbps on 5GHz totals 1200Mbps Wi-Fi speeds
- Free EAP Controller Software lets administrators easily manage hundreds of EAPs
- Support Power over Ethernet(802.3af) for convenient and affordable installation
- Captive portal provides a convenient method for guest authentication
- Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
