Stock Status: 1x unit in stock

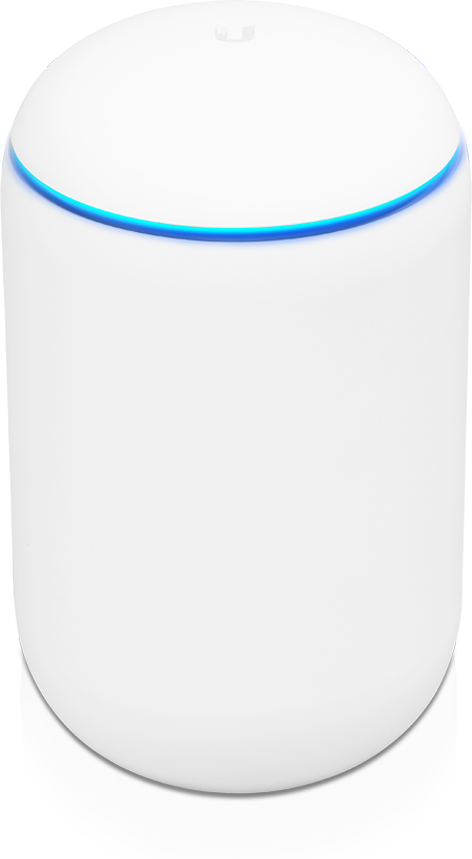

UniFi Dream Machine (UDM) is the easiest way to introduce UniFi to homes and businesses. The UDM includes everything you need for a small-scale wired or Wi-Fi network. It's easy to use and still offers all the benefits of UniFi for homes and businesses.
Specs
| Operational conditions |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-10 - 45 °C |
| Weight & dimensions |
| Width |
110 mm |
| Height |
184.2 mm |
| Weight |
1.05 kg |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
4 |
| Internal RJ-45 ports quantity |
1 |
| WAN connection |
Ethernet (RJ-45) |
| DC-in jack |
Y |
| Power |
| Input voltage |
100 - 240 V |
| Input current |
0.6 A |
| Power consumption (max) |
26 W |
| Security |
| Security algorithms |
AES,TKIP,WEP,WPA,WPA-Enterprise,WPA-PSK,WPA2 |
| Protocols |
| DHCP server |
Y |
| Antenna |
| Antenna type |
Internal |
| Antenna features |
Integrated antenna |
| Antennas quantity |
1 |
| Antenna gain level (max) |
4.5 dBi |
| Design |
| Placement |
Table |
| Product colour |
White |
| Reset button |
Y |
| Performance |
| Built-in processor |
Y |
| Processor frequency |
1700 MHz |
| Flash memory |
16000 MB |
| Internal memory |
2000 MB |
| Features |
| 2.4 GHz |
Y |
| 5 GHz |
Y |
| Maximum data transfer rate |
1733 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
300 Mbit/s |
| Maximum data transfer rate (5 GHz) |
1733 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Throughput data rate |
1000 Mbit/s |
| Networking standards |
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| MIMO |
Y |
| MIMO type |
Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) |
Y |
| VLAN support |
Y |
| Virtual LAN features |
Tagged VLAN |
| Dynamic Frequency Selection (DFS) |
Y |
| Quality of Service (QoS) support |
Y |
| Packaging data |
| Number of products included |
1 pc(s) |
Features
Ubiquiti Networks UniFi Dream Machine. Maximum data transfer rate: 1733 Mbit/s, Maximum data transfer rate (2.4 GHz): 300 Mbit/s, Maximum data transfer rate (5 GHz): 1733 Mbit/s. Security algorithms: AES,TKIP,WEP,WPA,WPA-Enterprise,WPA-PSK,WPA2. WAN connection: Ethernet (RJ-45). Input voltage: 100 - 240 V, Input current: 0.6 A, Power consumption (max): 26 W. Placement: Table, Product colour: White
Product Description
UniFi Dream Machine (UDM) is the easiest way to introduce UniFi to homes and businesses. The UDM includes everything you need for a small-scale wired or Wi-Fi network. It's easy to use and still offers all the benefits of UniFi for homes and businesses.
