Stock Status: 1x unit in stock
About this item
.Dual 10GbE Network Ports: Two 10GbE high-speed network ports that can be aggregated into 20G bandwidth for download speeds of up to 2500MB/s. Transfer large files smoothly like a breeze. Load between the two port links can be dynamically adjusted and balanced to improve transmission efficiency.
.Unparalleled Processing Performance: With a 12th Gen, 10-core 12-thread Intel Core i5 Processor, processing performance is improved by leaps and bounds compared to previous processors.
.6-Bay, 196TB Massive Data Storage: Equipped with six SATA and two M.2 NVMe drive bays, the NASync DXP6800 Pro has a maximum storage capacity of up to 196TB. And supports JBOD/Basic/RAID0/RAID1/RAID5/RAID6/RAID10 RAID levels. Store thousands of HD movies, pictures, and documents, Making NASync a movie library, photo album, and file storage space all in one.
.One, All-Inclusive App: Rather than downloading individual applications for specific functions, the NAS App incorporates these functions into one place. Access Storage Manager, Files, Photos, and more, all from one convenient location. (Please follow the instructions to upgrade the firmware for a better experience.)
.Professional Data Security: Compared with cloud drives, NASync allows users to store massive personal data in trusted local devices, preventing leakage and surveillance to the greatest extent. Data transmission and accounts can be fully protected with professional encryption and multi-factor authentication.
Specs
| Power |
| Power supply location |
Built-in |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10000 Mbit/s |
| Jumbo frames support |
Yes |
| iSCSI support |
Yes |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
2 |
| USB port |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| Thunderbolt 4 ports quantity |
1 |
| Memory |
| Internal memory |
8 GB |
| Internal memory type |
DDR5 |
| Maximum RAM supported |
64 GB |
| Memory slots |
2 |
| Memory form factor |
SO-DIMM |
| Processor |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Processor model |
i5-1235U |
| Processor frequency |
4.4 GHz |
| Processor cores |
10 |
| Processor threads |
12 |
| Other features |
| Warranty period |
3 year(s) |
| Storage |
| Storage drives installed |
No |
| RAID support |
Yes |
| Storage drive sizes supported |
2.5,3.5,M.2 |
| Maximum supported storage capacity |
196 TB |
| Total installed system drives capacity |
128 GB |
| System drive type |
SSD |
| Number of M.2 (M & B) slots |
2 |
| RAID levels |
0, 1, 5, 6, 10, JBOD |
| Online RAID migration |
Yes |
| Online RAID expansion |
Yes |
| RAID rebuild |
Yes |
| Supported file systems |
BTRFS, FAT32, HFS+, NTFS, exFAT, ext4 |
| Auto-rebuild |
Yes |
| Bad block scan |
Yes |
| Packaging content |
| External power adapter |
Yes |
| Performance |
| Type |
NAS |
| Device class |
Small & Medium Business |
| Backup function |
Yes |
| Backup features |
Cloud, USB drive, iSCSI LUN |
| Buzzer |
Yes |
| Multilingual support |
Yes |
| Third-party support |
Yes |
| Card reader integrated |
Yes |
| Snapshot |
Yes |
| Web-based management |
Yes |
| Share folder access right management |
Yes |
| On/off switch |
Yes |
| Built-in FTP server |
Yes |
| Network Time Protocol (NTP) client |
Yes |
| System log |
Yes |
| Password authentication |
Yes |
| Disk scan |
Yes |
| S.M.A.R.T. support |
Yes |
| Remotely operated |
Yes |
| Design |
| Chassis type |
Desktop |
| Logistics data |
| Country of origin |
China |
| Software |
| Operating system installed |
UGOS PRO |
Features

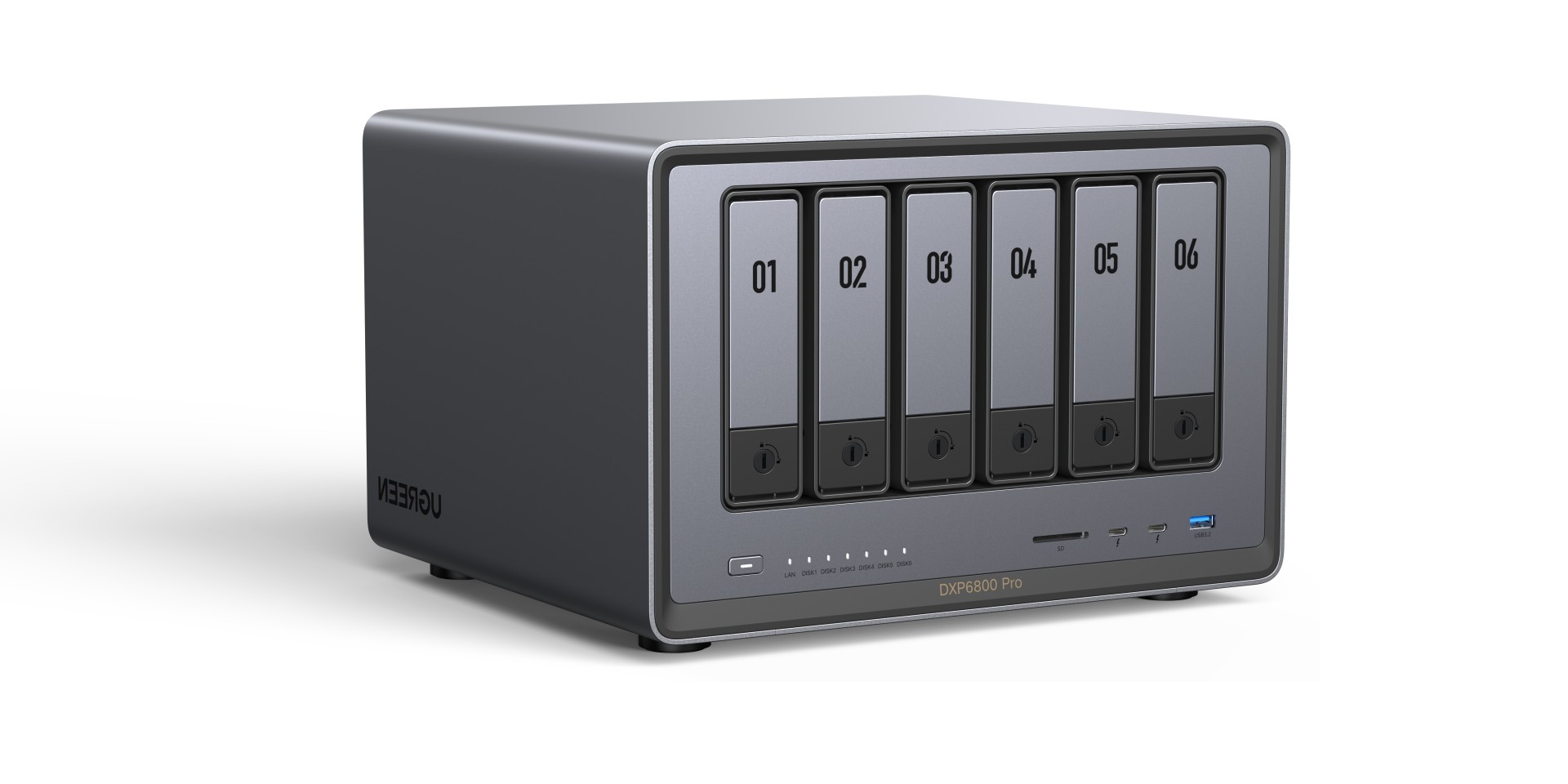

Ugreen NETWORK ATTACHED DXP6800PR DISKLESUK. Type: NAS. Chassis type: Desktop. Device class: Small & Medium Business. Processor family: Intel® Core™ i5, Processor model: i5-1235U, Processor frequency: 4.4 GHz. Internal memory: 8 GB, Internal memory type: DDR5. Operating system installed: UGOS PRO
Product Description
About this item
.Dual 10GbE Network Ports: Two 10GbE high-speed network ports that can be aggregated into 20G bandwidth for download speeds of up to 2500MB/s. Transfer large files smoothly like a breeze. Load between the two port links can be dynamically adjusted and balanced to improve transmission efficiency.
.Unparalleled Processing Performance: With a 12th Gen, 10-core 12-thread Intel Core i5 Processor, processing performance is improved by leaps and bounds compared to previous processors.
.6-Bay, 196TB Massive Data Storage: Equipped with six SATA and two M.2 NVMe drive bays, the NASync DXP6800 Pro has a maximum storage capacity of up to 196TB. And supports JBOD/Basic/RAID0/RAID1/RAID5/RAID6/RAID10 RAID levels. Store thousands of HD movies, pictures, and documents, Making NASync a movie library, photo album, and file storage space all in one.
.One, All-Inclusive App: Rather than downloading individual applications for specific functions, the NAS App incorporates these functions into one place. Access Storage Manager, Files, Photos, and more, all from one convenient location. (Please follow the instructions to upgrade the firmware for a better experience.)
.Professional Data Security: Compared with cloud drives, NASync allows users to store massive personal data in trusted local devices, preventing leakage and surveillance to the greatest extent. Data transmission and accounts can be fully protected with professional encryption and multi-factor authentication.
