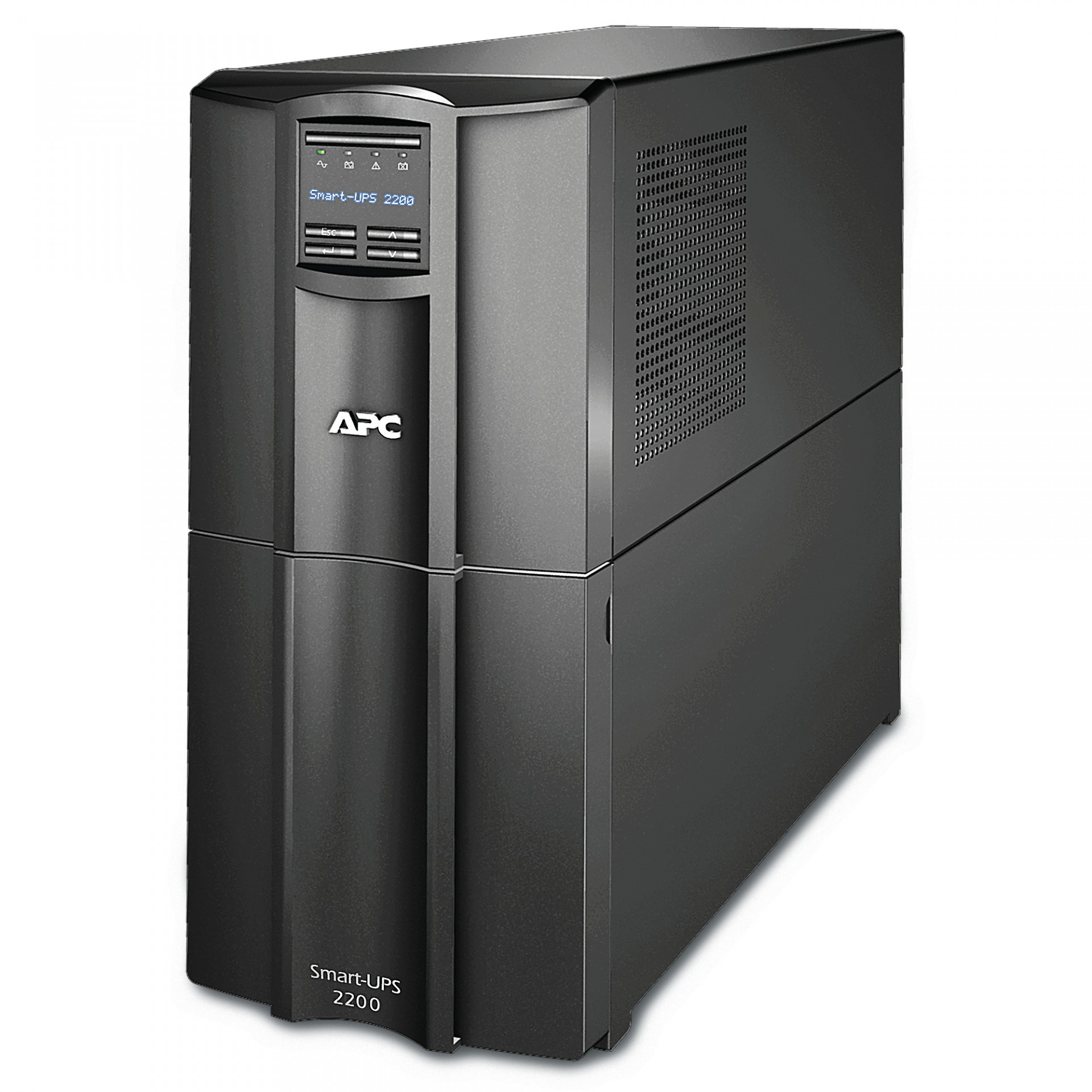

S-ups Linein 2200va 230v Smt2200ic - WC01
[SMT2200IC]

Name: S-ups Linein 2200va 230v Smt2200ic - WC01
Brand: SchneiderElectric
SKU: SMT2200IC
Price: 1020.00 GBP
Availability: InStock

TEMPORARILY OUT OF STOCK

Part Number: SMT2200IC

Manufacturer: SchneiderElectric

Condition: New

Short Description:

S-ups Linein 2200va 230v Smt2200ic

£1,020.00
£1,224.00 - Inc VAT

Thank you for your request, PLEASE RE-TYPE THE PART NUMBER IN THE SEARCH BOX

Stock Status: 1x unit in stock

Reviews

Specs

Weight & dimensions
Width	197 mm
Depth	544 mm
Height	435 mm
Weight	48.8 kg
Package width	381 mm
Package depth	762 mm
Package height	699 mm
Package weight	61.9 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Ports & interfaces
AC outlets quantity	9 AC outlet(s)
USB port	Yes
USB 2.0 ports quantity	1
USB port type	USB Type-A
Serial interface	Yes
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
SmartSlot	Yes
Battery
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at full load	8.7 min
Typical backup time at half load	25 min
Battery life (max)	5 year(s)
Battery recharge time	3 h
Design
Product colour	Black
Display type	LCD
LED indicators	Yes
Certification	CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
Features
UPS topology	Line-Interactive
Output power capacity	2.2 kVA
Output power	1980 W
Waveform	Sine
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Input frequency	50/60 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	365 J
Response time	6 ms
Emergency Power Off (EPO)	Yes
Output voltage Total Harmonic Distortion (THD)	5%
Noise level	45 dB
Power protection features	Over voltage, Overload
Audible alarm(s)	Yes
Audible alarm modes	Alarm when on battery, Low battery alarm, Battery replacement
Auto-restart	Yes
Logistics data
Products per pallet	9 pc(s)
Harmonized System (HS) code	85078000
Packaging data
Cables included	RS-232, USB cable
Software CD	Yes
Technical details
Sustainability certificates	Green Premium, RoHS
