Stock Status: 1x unit in stock

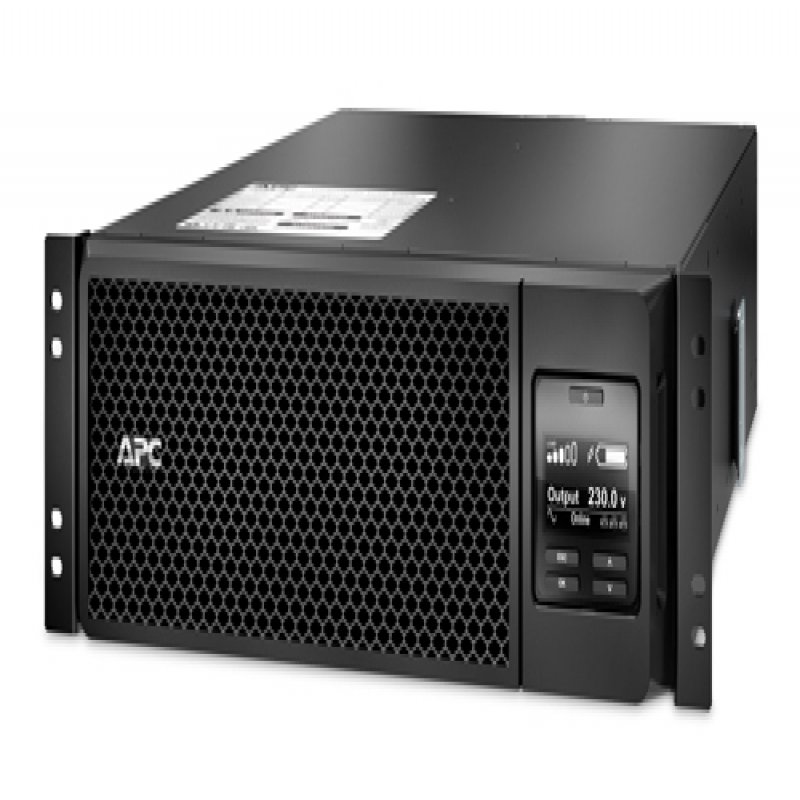

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) and 3-wire (1P+N+E) inputs, hard wire 3-wire (H+N+E), 3-wire (H+N+G) and 3-wire (2PH+G) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Specs
| Weight & dimensions |
| Width |
432 mm |
| Depth |
719 mm |
| Height |
130 mm |
| Weight |
55.8 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Ports & interfaces |
| AC outlet types |
Hard Wire 3-wire (2PH + G) |
| Power plug |
Hardwire |
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RJ-45 |
| SmartSlot |
Yes |
| Other features |
| Number of phases |
3 |
| Battery type |
APCRBC140 |
| Output connections |
1x Hard Wire 3-wire (2PH + G)
1x Hard Wire 3-wire (H N + G) |
| Battery |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery capacity |
845 VAh |
| Number of batteries supported |
1 |
| Typical backup time at full load |
4 min |
| Typical backup time at half load |
11.8 min |
| Battery life (max) |
5 year(s) |
| Battery recharge time |
1.5 h |
| Hot-swap battery |
Yes |
| Automatic battery test |
Yes |
| Cold start |
Yes |
| Design |
| Form factor |
Rackmount |
| Product colour |
Black |
| Rack capacity |
3U |
| Display type |
LCD |
| LED indicators |
Status |
| International Protection (IP) code |
IP20 |
| Features |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
5 kVA |
| Output power |
4500 W |
| Waveform |
Sine |
| Input operation voltage (min) |
100 V |
| Input operation voltage (max) |
275 V |
| Input frequency |
40 - 70 Hz |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Output frequency regulation |
50/60 Hz |
| Surge energy rating |
480 J |
| Efficiency |
93.8% |
| Crest factor |
3:1 |
| Emergency Power Off (EPO) |
Yes |
| Noise level |
55 dB |
| Surge protection |
Yes |
| Audible alarm(s) |
Yes |
| Auto-restart |
Yes |
| Logistics data |
| Products per pallet |
6 pc(s) |
| Harmonized System (HS) code |
85078000 |
| Total carbon footprint (kg of CO2e) |
8442.38 |
| Packaging data |
| Package width |
610 mm |
| Package depth |
960 mm |
| Package height |
330 mm |
| Package weight |
68 kg |
| Certification |
| Compliance certificates |
RoHS |
| Certification |
REACH, CE, CE Mark, CSA C22.2 No.107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IRAM, NOM, RCM, UL |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
Features
APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 208V/230V, Hard wire 3-wire(2PH+G)+3-wire(H+N+E)+3-wire(H+N+G) outlets, Network Card+SmartSlot, W/ rail kit. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 4500 W. AC outlet types: Hard Wire 3-wire (2PH + G), Power plug: Hardwire, Serial interface type: RJ-45. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 845 VAh, Typical backup time at full load: 4 min. Form factor: Rackmount, Product colour: Black, Rack capacity: 3U. Compliance certificates: RoHS, Certification: REACH, CE, CE Mark, CSA C22.2 No.107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class...
Product Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) and 3-wire (1P+N+E) inputs, hard wire 3-wire (H+N+E), 3-wire (H+N+G) and 3-wire (2PH+G) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
