Stock Status: 1x unit in stock

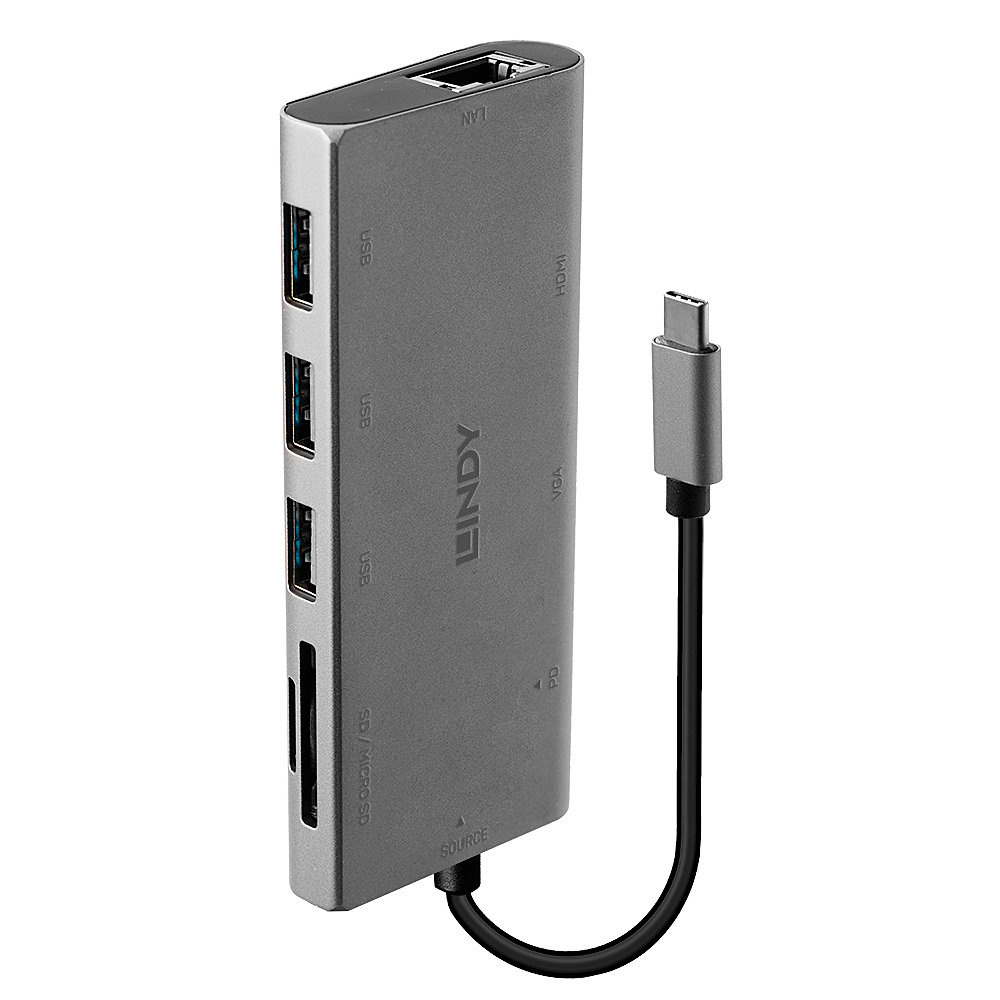

The DST-Mini Plus with VGA is a compact, multifunctional solution for hybrid workers. Housed in a robust aluminium with a high-quality braided USB-C cable, this dock has been designed for durability during travel. With support for HDMI and VGA, it is ideal for those who have an older legacy monitor they wish to plug their device into.
Extended Displays
This docking station can support a 4k extended display at 30Hz or 1080p Full HD 60Hz via its HDMI port. It does this through a single USB-C connection using DisplayPort Alternate Mode. Alternatively, you can access crisp 1080p Full HD via the legacy VGA connection. If both video outputs are connected, 1080p Full HD is possible with the displays showing mirroring content
Added Connectivity
Providing three SuperSpeed USB Type A ports (5Gbps), Card Readers (SD and microSD), USB-C PD, Gigabit Ethernet, VGA and HDMI, the DST-Mini Plus unlocks a world of connectivity for your device. With a single USB-C connection, you can connect USB accessories such as keyboard and mice as well as expand your storage and take advantage of a lightening quick wired Ethernet connection.
Pass-through Charging
Thanks to the USB-C Power Delivery, by connecting a USB-C charger to the docking station you can expect up to 100W charging to any connected laptop (depending on the USB-C charger and how much power the dock is using). Simply connect one USB-C cable and be confident that all your connected device will be fully charged and ready to go.
Plug-and-Play
This docking station does not require any driver installation. This allows for seamless large-scale implementation and a hassle-free experience.
Specs
| Weight & dimensions |
| Width |
180 mm |
| Depth |
17 mm |
| Height |
49 mm |
| Weight |
90 g |
| Ports & interfaces |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery revision |
3.0 |
| USB Power Delivery up to |
100 W |
| VGA (D-Sub) ports quantity |
1 |
| HDCP |
Yes |
| HDCP version |
2.2 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Power |
| Power supply type |
USB |
| Packaging content |
| Manual |
Yes |
| Other features |
| Chipset |
RTL8153B, EP9632G, GL3510 |
| Maximum operating temperature |
45 °C |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
20 - 80% |
| Networking |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Performance |
| Product colour |
Grey |
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Hub interfaces |
HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, VGA |
| Housing material |
Aluminium |
| Certification |
CE, UKCA, FCC, REACH, RoHS, CP65 |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
174 mm |
| Package depth |
194 mm |
| Package weight |
100 g |
| Logistics data |
| Harmonized System (HS) code |
84719000 |
Features
Lindy DST-Mini Plus, USB-C Laptop Mini Docking Station with 4K HDMI, VGA Support and 100W Pass-Through Charging. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), SD, Hub interfaces: HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, VGA. Power supply type: USB. Width: 180 mm, Depth: 17 mm, Height: 49 mm
Product Description
The DST-Mini Plus with VGA is a compact, multifunctional solution for hybrid workers. Housed in a robust aluminium with a high-quality braided USB-C cable, this dock has been designed for durability during travel. With support for HDMI and VGA, it is ideal for those who have an older legacy monitor they wish to plug their device into.
Extended Displays
This docking station can support a 4k extended display at 30Hz or 1080p Full HD 60Hz via its HDMI port. It does this through a single USB-C connection using DisplayPort Alternate Mode. Alternatively, you can access crisp 1080p Full HD via the legacy VGA connection. If both video outputs are connected, 1080p Full HD is possible with the displays showing mirroring content
Added Connectivity
Providing three SuperSpeed USB Type A ports (5Gbps), Card Readers (SD and microSD), USB-C PD, Gigabit Ethernet, VGA and HDMI, the DST-Mini Plus unlocks a world of connectivity for your device. With a single USB-C connection, you can connect USB accessories such as keyboard and mice as well as expand your storage and take advantage of a lightening quick wired Ethernet connection.
Pass-through Charging
Thanks to the USB-C Power Delivery, by connecting a USB-C charger to the docking station you can expect up to 100W charging to any connected laptop (depending on the USB-C charger and how much power the dock is using). Simply connect one USB-C cable and be confident that all your connected device will be fully charged and ready to go.
Plug-and-Play
This docking station does not require any driver installation. This allows for seamless large-scale implementation and a hassle-free experience.
