Stock Status: 1x unit in stock
Create a mobile workstation wherever you work
Enable dual-4K displays, high-speed device connectivity, power, and networking from a single USB-C dock for consistent productivity anywhere.
Deploy Multi-Display Setups with Ease
Drive two 4K 60Hz DisplayPort displays on Windows, Linux, and ChromeOS to increase screen real estate. Ideal for hot desks and remote users who need instant multi-monitor setups.
Connect Devices and Keep Ports Free
Connect modern and legacy high-speed devices with 3x USB-C and 2x USB-A (5Gbps), while a dedicated USB-A 2.0 port handles keyboard and mouse dongles or other essential peripherals. Reduce hub sprawl and keep critical ports available for storage, capture, or field tools.
Deliver a Consistent Desktop Experience Anywhere
Provide 100W PD charging passthrough and Gigabit Ethernet for stable, wired performance at home, in the office, or while travelling. Standardize deployments with the same display, USB, and network experience to simplify rollouts and support.
Built for Sustainability, Designed for Performance
This hub features a housing made from 85% post-consumer recycled (PCR) plastic. The product also ships in FSC Mix packaging made from responsibly sourced materials. These materials help align your IT infrastructure with your organization's sustainability goals, without compromising on quality or durability.
Specs
| Weight & dimensions |
| Width |
55 mm |
| Depth |
150 mm |
| Height |
16.5 mm |
| Weight |
100 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
0 |
| Microphone in |
No |
| Headphone outputs |
0 |
| USB 2.0 Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
3 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
100 W |
| DisplayPorts quantity |
2 |
| DisplayPort version |
1.2 |
| Power |
| Output voltage |
5 V |
| Power consumption (typical) |
15 W |
| USB cable length |
0.3 m |
| Packaging content |
| User guide |
Yes |
| Other features |
| Chipset |
Synaptics - VMM5220, VIA - VL103, VIA - VL817S, Realtek - RTL8153E |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wake-on-LAN ready |
Yes |
| Full duplex |
Yes |
| Performance |
| Product colour |
Grey |
| Card reader integrated |
No |
| Data transfer rate |
5 Gbit/s |
| HD type |
4K Ultra HD |
| Maximum digital resolution |
3840 x 2160 pixels |
| Housing material |
Plastic |
| Mean time between failures (MTBF) |
103855 h |
| Software |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Linux operating systems supported |
Yes |
| Other operating systems supported |
ChromeOS |
| Packaging data |
| Package width |
193 mm |
| Package depth |
117 mm |
| Package height |
24 mm |
| Package weight |
190 g |
| Logistics data |
| Products per master (outer) case |
80 pc(s) |
| Master (outer) case width |
540 mm |
| Master (outer) case length |
425 mm |
| Master (outer) case height |
270 mm |
Features

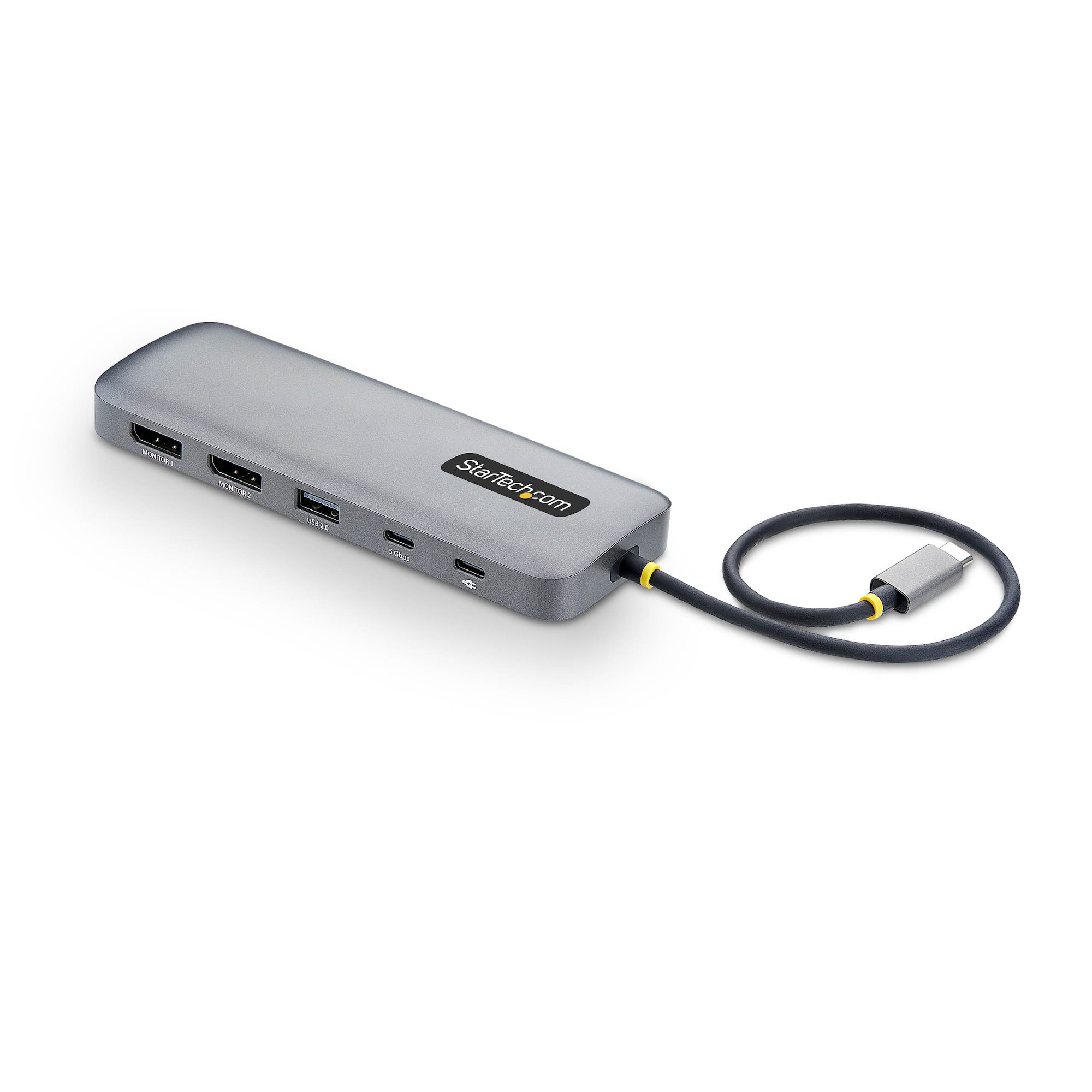

StarTech.com 10-in-1 USB-C to Dual-DisplayPort Multiport Adapter, 100W Power Delivery Charging, 2x 4K 60Hz, 5-Port 5Gbps Hub, Gigabit Ethernet, Type-C Mini Dock. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Data transfer rate: 5 Gbit/s, HD type: 4K Ultra HD. Output voltage: 5 V, Power consumption (typical): 15 W, USB cable length: 0.3 m. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Other operating systems supported: ChromeOS
Product Description
Create a mobile workstation wherever you work
Enable dual-4K displays, high-speed device connectivity, power, and networking from a single USB-C dock for consistent productivity anywhere.
Deploy Multi-Display Setups with Ease
Drive two 4K 60Hz DisplayPort displays on Windows, Linux, and ChromeOS to increase screen real estate. Ideal for hot desks and remote users who need instant multi-monitor setups.
Connect Devices and Keep Ports Free
Connect modern and legacy high-speed devices with 3x USB-C and 2x USB-A (5Gbps), while a dedicated USB-A 2.0 port handles keyboard and mouse dongles or other essential peripherals. Reduce hub sprawl and keep critical ports available for storage, capture, or field tools.
Deliver a Consistent Desktop Experience Anywhere
Provide 100W PD charging passthrough and Gigabit Ethernet for stable, wired performance at home, in the office, or while travelling. Standardize deployments with the same display, USB, and network experience to simplify rollouts and support.
Built for Sustainability, Designed for Performance
This hub features a housing made from 85% post-consumer recycled (PCR) plastic. The product also ships in FSC Mix packaging made from responsibly sourced materials. These materials help align your IT infrastructure with your organization's sustainability goals, without compromising on quality or durability.
