Stock Status: 1x unit in stock

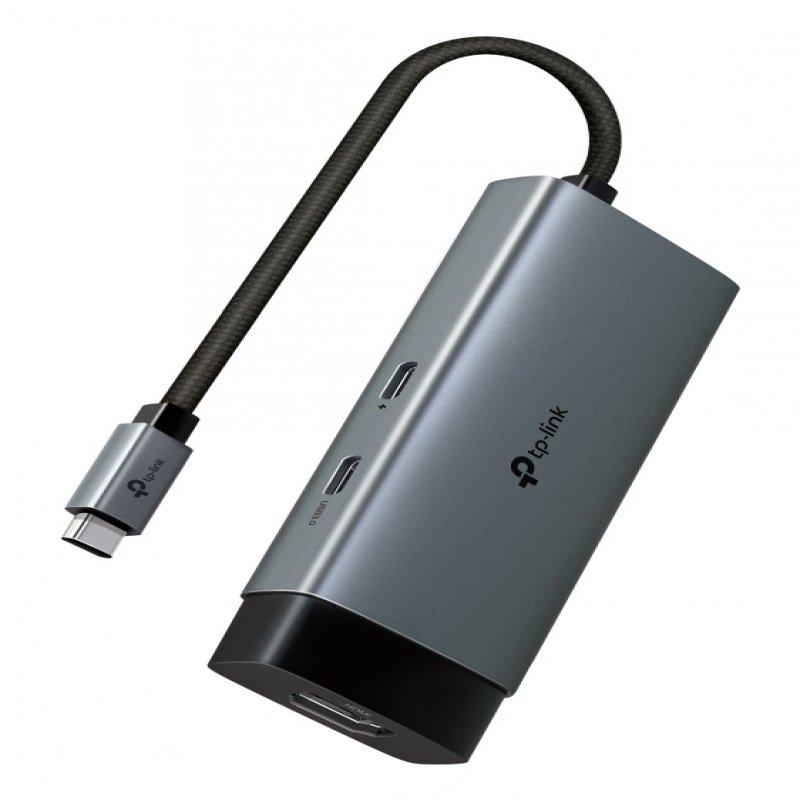

5 in 1 USB-C Hub
UH5020C turns a single USB-C port into 5 ports with a 4K@60Hz HDMI, 100W Power Delivery, 1× USB-C Data Port, 2× USB-A Data Ports.
Ultra High-Definition Media Display
Connect to an external monitor via the 4K@60Hz HDMI port for a stunning ultra high-definition experience.
Powerful 100W Fast Charging
Plug the charging cable into UH5020C and continuously deliver up to 100W of power to your PC while transferring files or streaming media.
5 Gbps SuperSpeed Data Transfer
UH5020C adds three USB 3.0 ports to your device, enabling simultaneous use of multiple USB devices.
Easy to Use with Plug & Play
Simply plug in and start using in seconds, thanks to driver-free install with Mac OS, Windows 11/10/8.1/8/7, Linux OS, iPadOS, iOS, Android, Chrome OS, and Nintendo OS.
Compact and Elegant Design
The self-storing design not only protects the connector, but also but also improves portability. Aluminum alloy case and braided cable make UH5020C more durable. Bring you a better user experience.
Specs
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported |
MacOS |
| Linux operating systems supported |
Yes |
| Other operating systems supported |
Android, ChromeOS, iOS, iPadOS |
| Compatible operating systems |
Nintendo OS |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Power |
| Power supply type |
USB |
| Weight & dimensions |
| Width |
108.2 mm |
| Depth |
40 mm |
| Height |
12.2 mm |
| Ports & interfaces |
| Ports quantity |
5 |
| Host interface |
USB Type-C |
| Hub interfaces |
HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| HDMI ports quantity |
1 |
| Card reader integrated |
No |
| DC-in jack |
No |
| Packaging content |
| Quick start guide |
Yes |
| Design |
| Cable colour |
Black |
| Technical details |
| Compliance certificates |
BSMI, CE, EAC, Federal Communications Commission (FCC), RoHS, UKCA |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package type |
Hanging box |
| Features |
| Data transfer rate |
5000 Mbit/s |
| Maximum refresh rate |
60 Hz |
| Supported video modes |
2160p |
| Maximum resolution (HDMI) |
4096 x 2160 pixels |
| Product colour |
Grey |
| Housing material |
Aluminium |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
100 W |
| Fast charging |
Yes |
| Cable type |
Round cable |
| Cable length |
0.18 m |
| Plug and Play |
Yes |
| Certification |
HDMI |
Features
TP-Link UH5020C. Host interface: USB Type-C, Hub interfaces: HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB Type-C. Data transfer rate: 5000 Mbit/s, Maximum refresh rate: 60 Hz, Supported video modes: 2160p. Power supply type: USB. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Mac operating systems supported: MacOS, Other operating systems supported: Android, ChromeOS, iOS, iPadOS. Width: 108.2 mm, Depth: 40 mm, Height: 12.2 mm
Product Description
5 in 1 USB-C Hub
UH5020C turns a single USB-C port into 5 ports with a 4K@60Hz HDMI, 100W Power Delivery, 1× USB-C Data Port, 2× USB-A Data Ports.
Ultra High-Definition Media Display
Connect to an external monitor via the 4K@60Hz HDMI port for a stunning ultra high-definition experience.
Powerful 100W Fast Charging
Plug the charging cable into UH5020C and continuously deliver up to 100W of power to your PC while transferring files or streaming media.
5 Gbps SuperSpeed Data Transfer
UH5020C adds three USB 3.0 ports to your device, enabling simultaneous use of multiple USB devices.
Easy to Use with Plug & Play
Simply plug in and start using in seconds, thanks to driver-free install with Mac OS, Windows 11/10/8.1/8/7, Linux OS, iPadOS, iOS, Android, Chrome OS, and Nintendo OS.
Compact and Elegant Design
The self-storing design not only protects the connector, but also but also improves portability. Aluminum alloy case and braided cable make UH5020C more durable. Bring you a better user experience.
