Stock Status: 1x unit in stock
- 10XOptical Zoom Lens
- Exmor 1/2.8-Type 2.14 Effective Megapixels (Native 1080p/60) high-speed, low noise CMOS image sensor
- Built-in web server for configuration, control and remote management

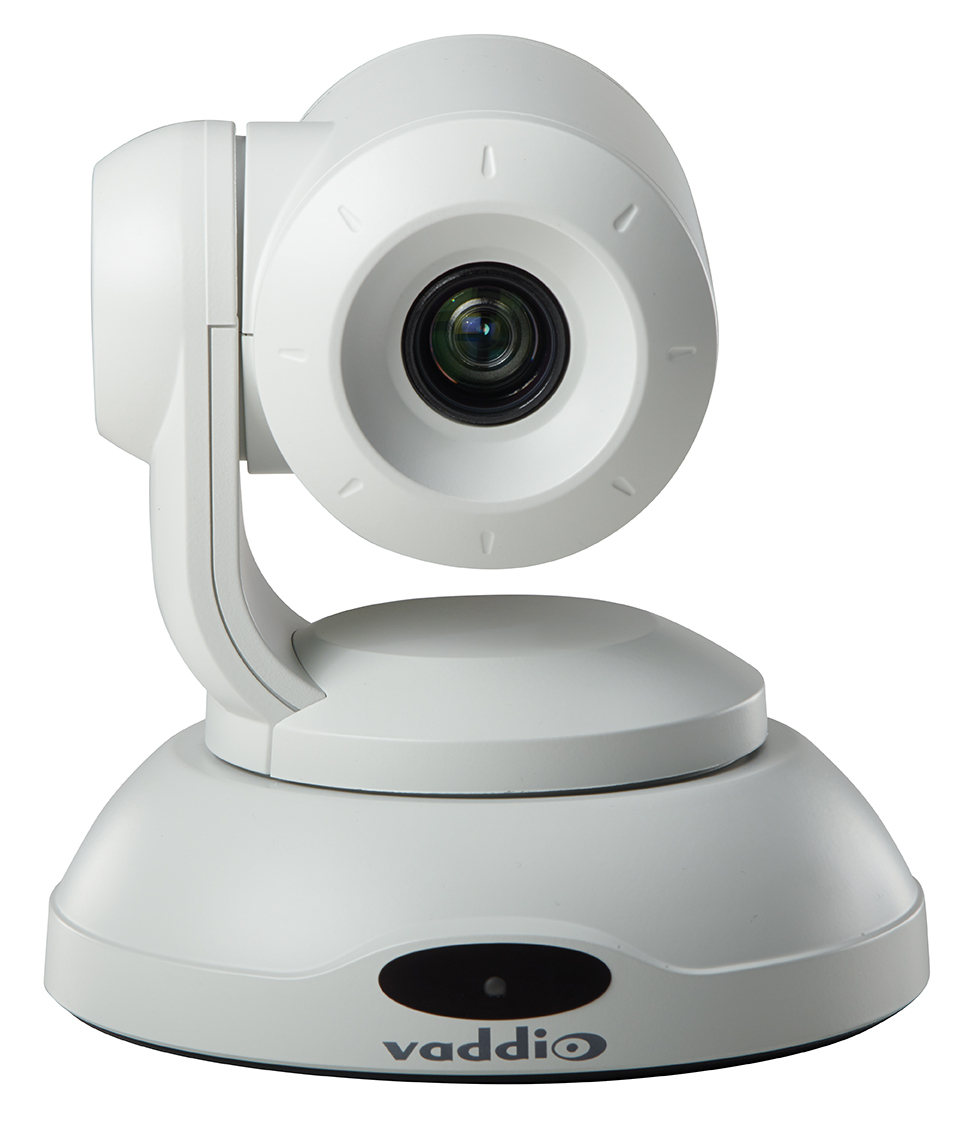

The Vaddio™ ConferenceSHOT 10 Camera is an Enterprise-Class, high definition PTZ conferencing camera with high quality imaging, exceptional color reproduction and truly fine detail. With simultaneous and individual USB 3.0 uncompressed and IP (H.264) streaming video outputs, this camera offers integrators, dealers and end users with an impressive improvement over other USB conferencing cameras available today.
The latest generation Exmor™ 1/2.8”, 2.38 Megapixel, Full HD (native 1080p/60) high-speed, low noise CMOS image sensor combined with the new ISP, produces vivid and realistic color with super-fast, razor sharp and transparent auto-focus and iris routines.
The ConferenceSHOT 10 USB has an Ethernet port for IP (H.264) streaming and a built-in web server, which allows the user to control the camera’s functions with an internal web page with any browser from anywhere in the world, over the IP network, while watching the RTSP format video stream with H.264 compression.
With a 74-degree wide horizontal field-of-view and 10X optical zoom, the ConferenceSHOT 10 USB provides great flexibility in a variety of applications including small to medium-sized conference rooms and huddle rooms as well as corporate, healthcare, government and education environments.
Specs
| Weight & dimensions |
| Width |
155 mm |
| Depth |
145 mm |
| Height |
163 mm |
| Weight |
1.36 kg |
| Camera |
| Megapixel (approx.) |
2.38 MP |
| Sensor type |
CMOS |
| Optical sensor size |
25.4 / 2.8 mm (1 / 2.8") |
| Effective sensor resolution |
2.14 MP |
| Optical zoom |
10x |
| Optical zoom (super-wide mode) |
11x |
| Focal length range |
3.8 - 38 mm |
| Horizontal field of view (wide) |
67° |
| Horizontal field of view (tele) |
7.6° |
| Focal length range (super-wide mode) |
3.8 - 41.8 mm |
| Wide end viewing angle (super-wide mode) |
74° |
| Minimum illumination |
1 lx |
| Tele end viewing angle (super-wide mode) |
7.6° |
| Signal-to-Noise Ratio (SNR) |
50 dB |
| Aperture number of steps |
16 |
| Aperture range (F-F) |
1.8 - 3.4 |
| White balance |
Auto, Manual, One push |
| Focus adjustment |
Auto/Manual |
| Back Light Compensation (BLC) |
Yes |
| Gain control type |
Auto/Manual |
| Minimum working distance (wide) |
1 cm |
| Maximum working distance (tele) |
100 cm |
| Sync system |
Internal |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-5 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
20 - 80% |
| Power |
| DC input voltage |
12 V |
| Input current |
3 A |
| Video |
| Supported video modes |
1080i, 1080p |
| Ports & interfaces |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| DC-in jack |
Yes |
| Design |
| Product colour |
White |
| Tilt angle range |
-30 - 90° |
| Pan range |
-165 - 165° |
| Web-based management |
Yes |
| Tilt speed (min) |
90 °/sec |
| Tilt speed (max) |
90 °/sec |
| Pan speed (min) |
90 °/sec |
| Pan speed (max) |
90 °/sec |
| Packaging content |
| Remote control included |
Yes |
| Cables included |
AC, USB |
| Quick start guide |
Yes |
| Control adapter |
Yes |
| Mounting kit |
Yes |
| AC adapter included |
Yes |
| Audio |
| Noise reduction |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85258900 |
Features
Vaddio ConferenceSHOT 10. Megapixel (approx.): 2.38 MP, Sensor type: CMOS. Supported video modes: 1080i, 1080p. Optical zoom: 10x. Product colour: White
Product Description
- 10XOptical Zoom Lens
- Exmor 1/2.8-Type 2.14 Effective Megapixels (Native 1080p/60) high-speed, low noise CMOS image sensor
- Built-in web server for configuration, control and remote management
The Vaddio™ ConferenceSHOT 10 Camera is an Enterprise-Class, high definition PTZ conferencing camera with high quality imaging, exceptional color reproduction and truly fine detail. With simultaneous and individual USB 3.0 uncompressed and IP (H.264) streaming video outputs, this camera offers integrators, dealers and end users with an impressive improvement over other USB conferencing cameras available today.
The latest generation Exmor™ 1/2.8”, 2.38 Megapixel, Full HD (native 1080p/60) high-speed, low noise CMOS image sensor combined with the new ISP, produces vivid and realistic color with super-fast, razor sharp and transparent auto-focus and iris routines.
The ConferenceSHOT 10 USB has an Ethernet port for IP (H.264) streaming and a built-in web server, which allows the user to control the camera’s functions with an internal web page with any browser from anywhere in the world, over the IP network, while watching the RTSP format video stream with H.264 compression.
With a 74-degree wide horizontal field-of-view and 10X optical zoom, the ConferenceSHOT 10 USB provides great flexibility in a variety of applications including small to medium-sized conference rooms and huddle rooms as well as corporate, healthcare, government and education environments.
