Stock Status: 1x unit in stock
Verbatim SATA III M.2 2280 internal solid state drives can revitalise the performance of your system. Using the latest 3D NAND technology and compact dimensions, they offer the perfect way to upgrade, particular for small or thin form factor devices such as Ultrabooks and Notebooks.
The Vi560 delivers fast system boot-ups, quick application responses, and rapid transfer speeds, with read speeds of up to 560MB/s, which is 20 times faster than a standard hard drive. With an MTBF (mean time before failure) rating of 1.5 million hours and up to 450 TBW (terabytes written), the Vi560 is a high spec SSD that can be relied upon. (Recommended for professional installation.)
Specs
| Weight & dimensions |
| Width |
80 mm |
| Depth |
22 mm |
| Height |
2.3 mm |
| Weight |
9 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating shock |
1500 G |
| Power |
| Power consumption (read) |
1.43 W |
| Power consumption (write) |
1.39 W |
| Power consumption (idle) |
0.6 W |
| Packaging data |
| Quick start guide |
Yes |
| Package width |
117 mm |
| Package depth |
25 mm |
| Package height |
148 mm |
| Package weight |
43 g |
| Package type |
Hanging box |
| Logistics data |
| Master (outer) cases per pallet |
495 pc(s) |
| Layers per pallet |
5 pc(s) |
| Products per pallet |
990 pc(s) |
| Master (outer) case width |
128 mm |
| Master (outer) case length |
70 mm |
| Harmonized System (HS) code |
84717070 |
| Master (outer) case height |
188 mm |
| Master (outer) case gross weight |
120 g |
| Products per master (outer) case |
2 pc(s) |
| Features |
| SSD form factor |
M.2 |
| SSD capacity |
512 GB |
| Interface |
Serial ATA III |
| Memory type |
3D NAND |
| NVMe |
No |
| Component for |
PC/Laptop |
| Hardware encryption |
No |
| Data transfer rate |
6 Gbit/s |
| Read speed |
520 MB/s |
| Write speed |
480 MB/s |
| Random read (4KB) |
101376 IOPS |
| Random write (4KB) |
80400 IOPS |
| M.2 key ID |
B+M |
| Mean time between failures (MTBF) |
1500000 h |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported |
Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported |
Yes |
| TBW rating |
240 |
| Technical details |
| Sustainability certificates |
RoHS |
Features

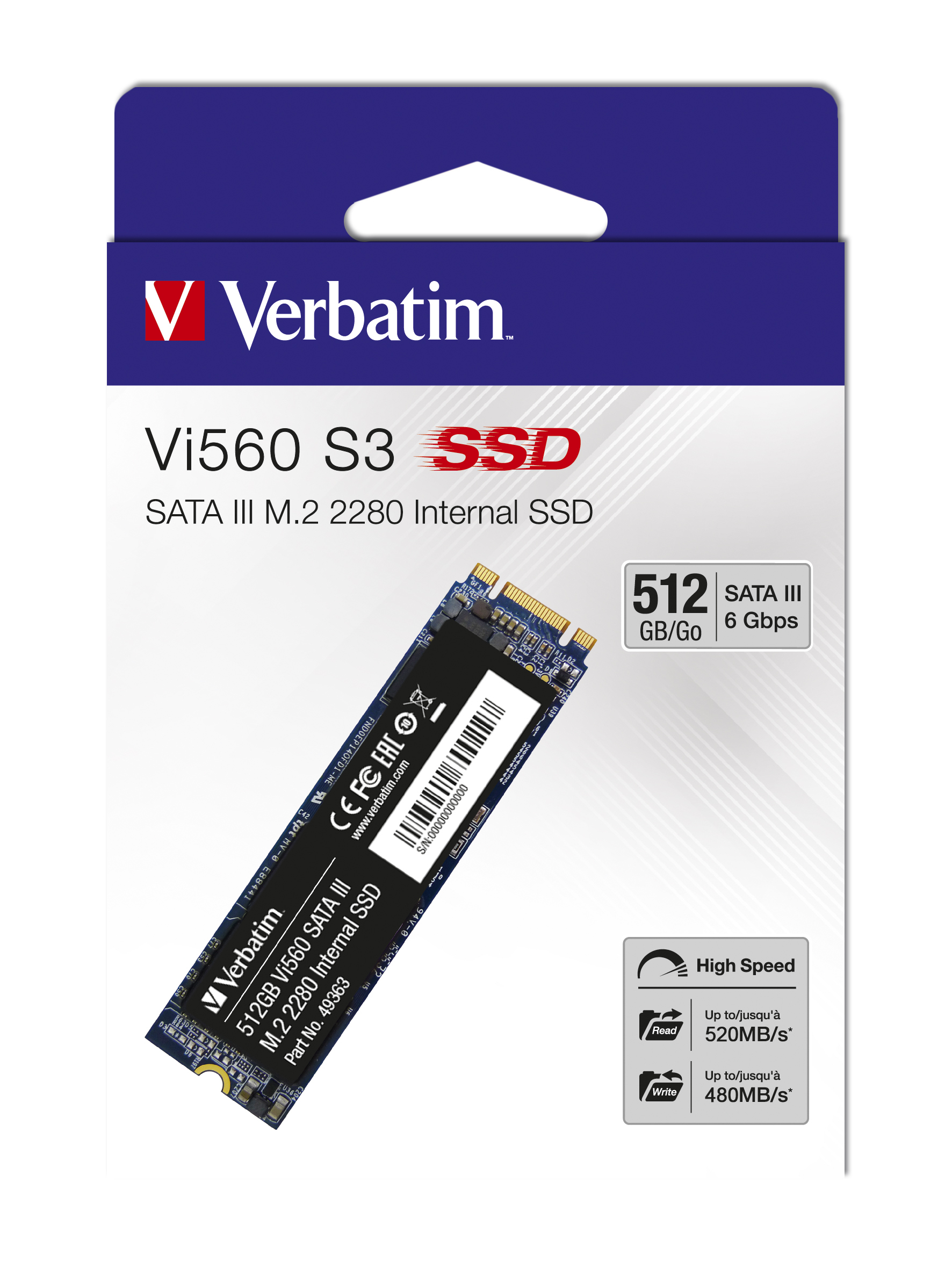

Verbatim Vi560 S3 M.2 SSD 512GB. SSD capacity: 512 GB, SSD form factor: M.2, Read speed: 520 MB/s, Write speed: 480 MB/s, Data transfer rate: 6 Gbit/s, Component for: PC/Laptop
Product Description
Verbatim SATA III M.2 2280 internal solid state drives can revitalise the performance of your system. Using the latest 3D NAND technology and compact dimensions, they offer the perfect way to upgrade, particular for small or thin form factor devices such as Ultrabooks and Notebooks.
The Vi560 delivers fast system boot-ups, quick application responses, and rapid transfer speeds, with read speeds of up to 560MB/s, which is 20 times faster than a standard hard drive. With an MTBF (mean time before failure) rating of 1.5 million hours and up to 450 TBW (terabytes written), the Vi560 is a high spec SSD that can be relied upon. (Recommended for professional installation.)
