Stock Status: 1x unit in stock

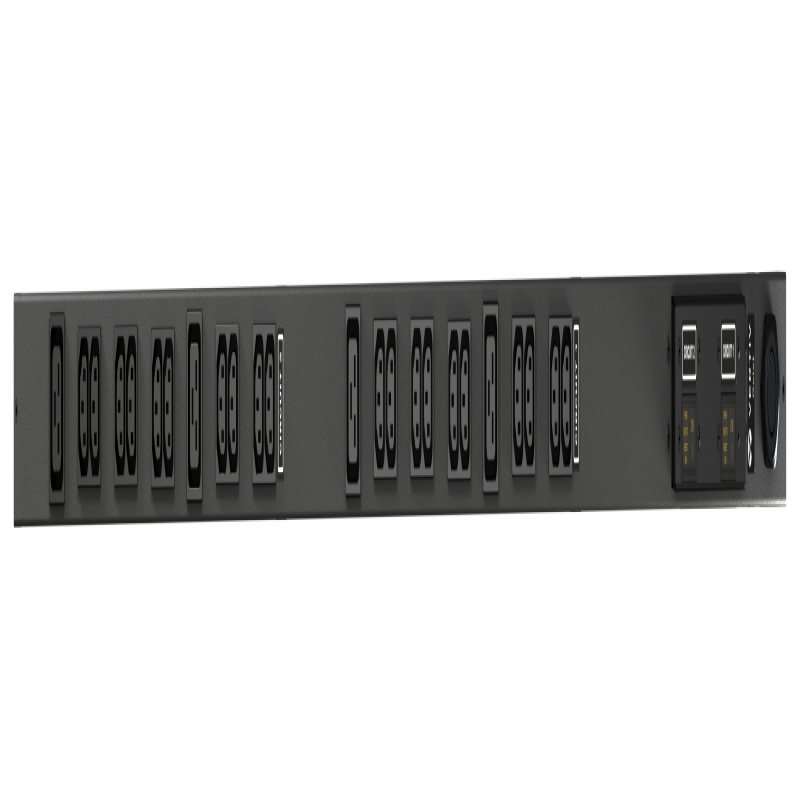

The Vertiv Geist Basic Rack PDU VP7553 is a 32A, 230V, 0U vertical rack power distribution unit (PDU). It has 20 IEC C13, 4 IEC C19 outlets, and a 1P+N+E (IP44) input that provides 7.3kW capacity. Vertiv Geist Basic Rack PDUs are UL-listed and are not batch-tested. The RoHS-compliant rPDUs undergo rigorous individual tests for reliability and functionality before shipping. The unit comes with a three-year warranty that can be extended to five-years if registered within 120 days of purchase.
Specs
| Weight & dimensions |
| Dimensions (WxDxH) |
1683 x 51 x 51 mm |
| Weight |
5.4 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Power |
| Nominal input voltage |
230 V |
| Maximum current |
32 A |
| AC input frequency |
50 Hz |
| Load capacity |
7300 VA |
| Ports & interfaces |
| AC outlets quantity |
24 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
IEC 60309 |
| Output connections |
20 x C13 & 4 x C19 |
| Design |
| PDU types |
Basic |
| Rack capacity |
0U |
| Type |
Single-phase |
| Mounting |
Vertical |
| Product colour |
Black |
| Technical details |
| Sustainability certificates |
RoHS |
| Features |
| LED indicators |
No |
| Cable length |
3 m |
| Certification |
CE, RoHS, CB |
| Packaging data |
| Package dimensions (WxDxH) |
1829 x 223 x 159 mm |
| Package weight |
6.35 kg |
| Package width |
1683 mm |
| Package depth |
51 mm |
| Package height |
51 mm |
Features
Vertiv Geist rPDU, basic, 0U, input IEC60309 230V 32A, outputs (20)C13 | (4)C19. PDU types: Basic, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3 m, Certification: CE, RoHS, CB. Nominal input voltage: 230 V, Maximum current: 32 A, AC input frequency: 50 Hz. Dimensions (WxDxH): 1683 x 51 x 51 mm, Weight: 5.4 kg
Product Description
The Vertiv Geist Basic Rack PDU VP7553 is a 32A, 230V, 0U vertical rack power distribution unit (PDU). It has 20 IEC C13, 4 IEC C19 outlets, and a 1P+N+E (IP44) input that provides 7.3kW capacity. Vertiv Geist Basic Rack PDUs are UL-listed and are not batch-tested. The RoHS-compliant rPDUs undergo rigorous individual tests for reliability and functionality before shipping. The unit comes with a three-year warranty that can be extended to five-years if registered within 120 days of purchase.
