Stock Status: 1x unit in stock
Built for small data centers and remote/branch office environments, the AV 3000 series KVM over IP switch provides consolidated, streamlined access to server resources. Centralize the management of the switches with DSView 4 Management software.
Specs
| Ports & interfaces |
| Number of computers controlled |
16 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Console ports |
RJ–45 |
| Weight & dimensions |
| Width |
432 mm |
| Depth |
165 mm |
| Height |
43.7 mm |
| Weight |
2 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Cabling technology |
10/100Base-T(X) |
| Security algorithms |
3DES, AES, 128-bit SSL, DES |
| Power |
| Power source |
AC |
| Input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Input current |
5 A |
| Power consumption (typical) |
18 W |
| Display |
| Built-in display |
No |
| Packaging content |
| Cables included |
AC |
| Quick installation guide |
Yes |
| Rack mount kit |
Yes |
| Design |
| Rack mounting |
Yes |
| Product colour |
Black |
| Rack capacity |
1U |
| Certification |
UL, FCC Class A, cUL, ICES Class A, CE, EAC, VCCI Class A, KCC Class A, C-Tick, BSMI |
| Performance |
| Maximum resolution |
1680 x 1050 pixels |
| Firmware upgradeable |
Yes |
Features

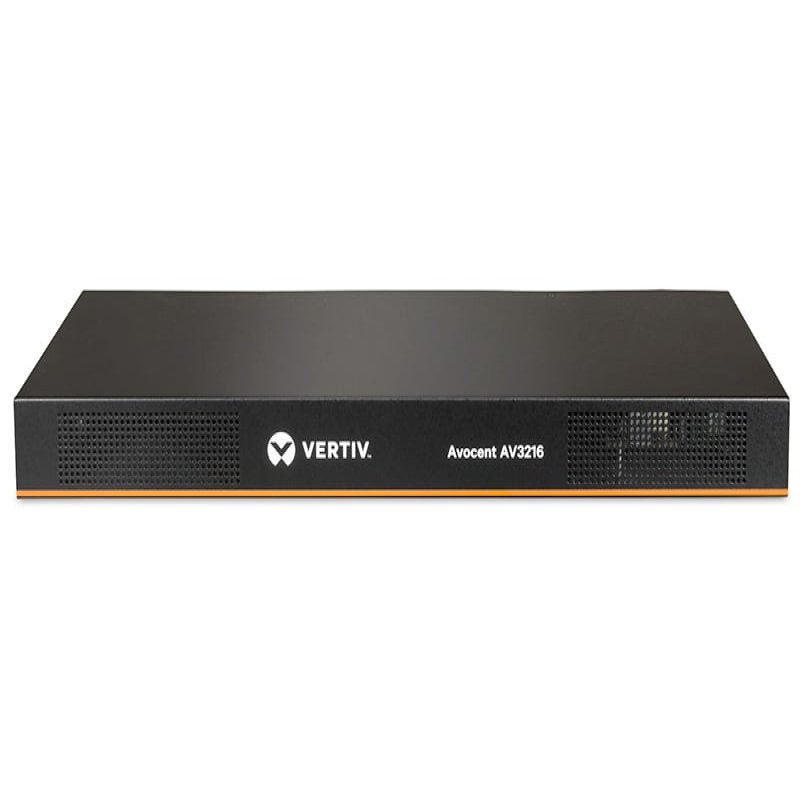

Vertiv Avocent AV 3216. Keyboard port type: USB, Mouse port type: USB, Console ports: RJ–45. Cabling technology: 10/100Base-T(X), Security algorithms: 3DES, AES, 128-bit SSL, DES. Maximum resolution: 1680 x 1050 pixels. Product colour: Black, Rack capacity: 1U, Certification: UL, FCC Class A, cUL, ICES Class A, CE, EAC, VCCI Class A, KCC Class A, C-Tick, BSMI. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50/60 Hz
Product Description
Built for small data centers and remote/branch office environments, the AV 3000 series KVM over IP switch provides consolidated, streamlined access to server resources. Centralize the management of the switches with DSView 4 Management software.
