Stock Status: 1x unit in stock

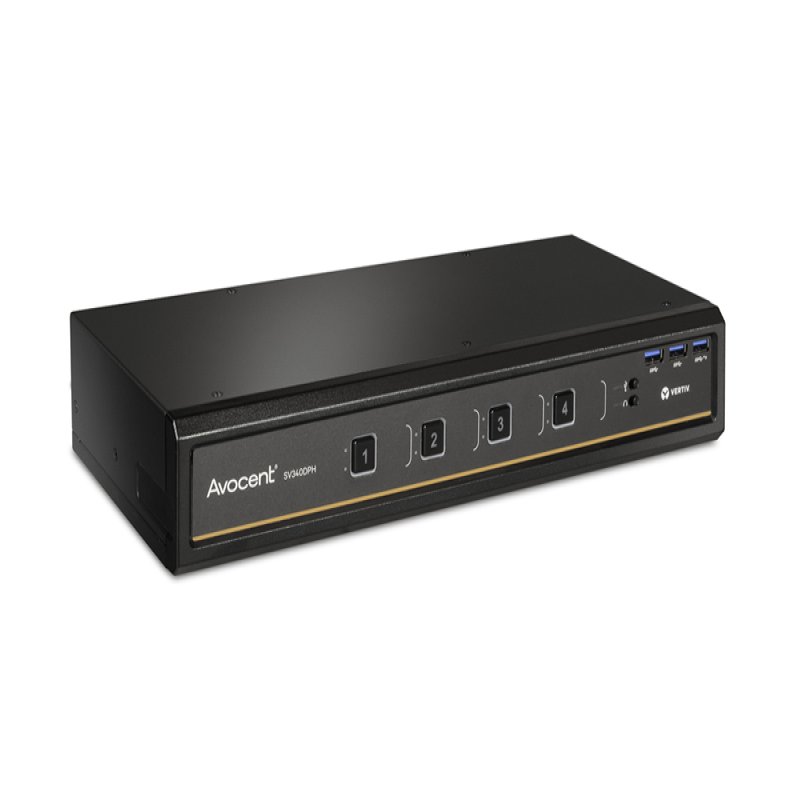

The Vertiv™ Avocent® SwitchView™ Dual head 4 port Desktop KVM switch gives users access to up to 4 computers using a single keyboard, monitor and mouse. It provides the flexibility users need in managing content from multiple computers and makes it easy to copy and paste files between applications. The SV340DPH comes with a universal video port that supports DVI-D, DP or HDMI connections.
Specs
| Ports & interfaces |
| Number of computers controlled |
4 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Console ports |
3.5mm headphone, 3.5mm mic, DisplayPort, USB A, USB B |
| DisplayPorts quantity |
10 |
| USB 2.0 Type-B ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
4 |
| Console USB ports quantity |
3 |
| USB connector type |
USB Type-A, USB Type-B |
| Audio connections |
Yes |
| Headphone outputs |
5 |
| Number of microphone inputs |
5 |
| Weight & dimensions |
| Width |
348 mm |
| Depth |
127 mm |
| Height |
56 mm |
| Weight |
1.9 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| Power source |
AC |
| Input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Output voltage |
12 V |
| Output current |
2.5 A |
| Display |
| Built-in display |
No |
| Design |
| Rack mounting |
No |
| Product colour |
Black |
| LED indicators |
Yes |
| Certification |
CE, RCM, FCC class A, VCCI, TUV US, TUV Canada |
| Performance |
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2160 pixels |
Features
Vertiv Avocent SV340DPH. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels. Product colour: Black, Certification: CE, RCM, FCC class A, VCCI, TUV US, TUV Canada. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 348 mm, Depth: 127 mm, Height: 56 mm
Product Description
The Vertiv™ Avocent® SwitchView™ Dual head 4 port Desktop KVM switch gives users access to up to 4 computers using a single keyboard, monitor and mouse. It provides the flexibility users need in managing content from multiple computers and makes it easy to copy and paste files between applications. The SV340DPH comes with a universal video port that supports DVI-D, DP or HDMI connections.
