Stock Status: 1x unit in stock

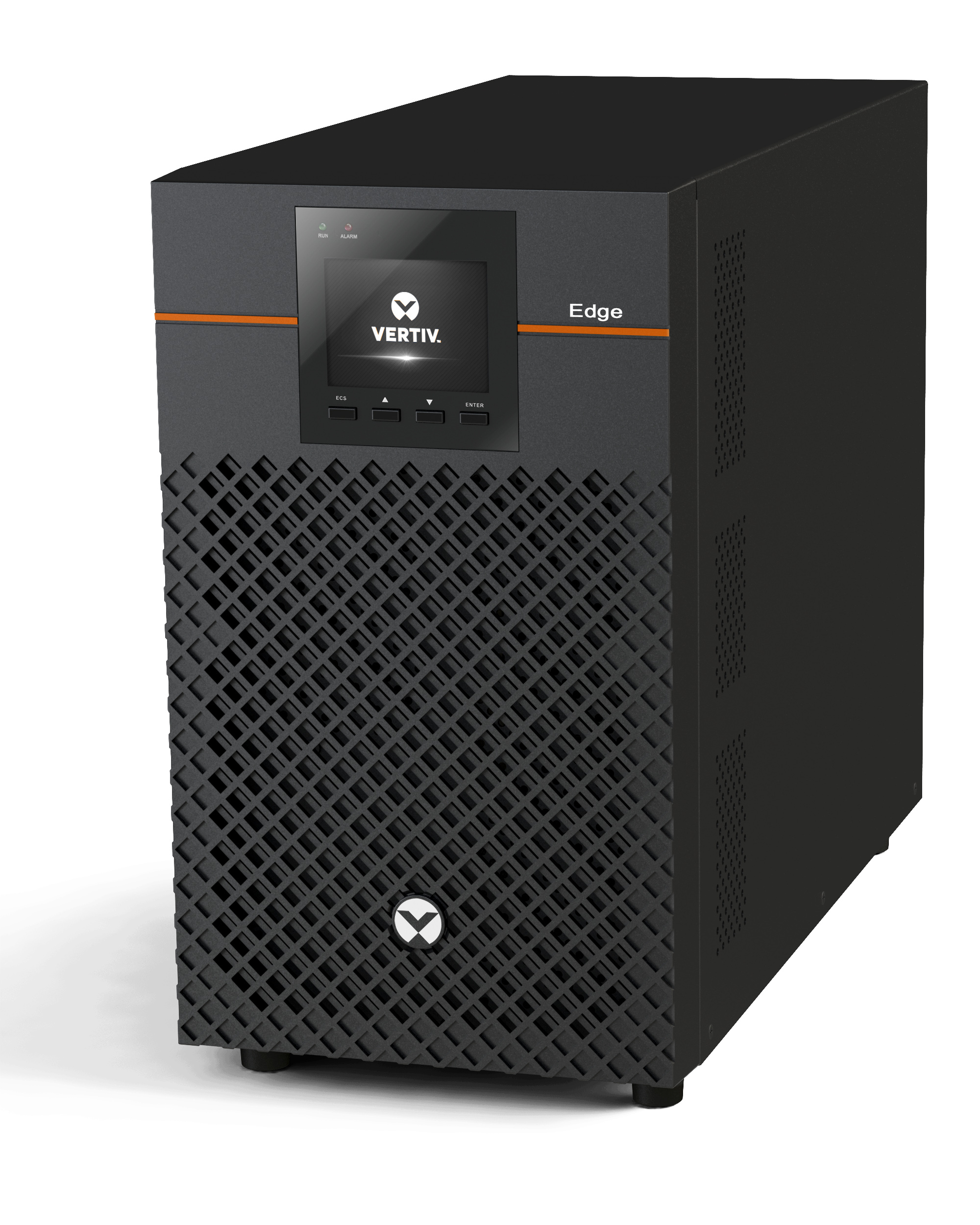

The Vertiv Edge uninterruptible power supply (UPS) is designed to protect server and networking equipment in distributed and Edge IT applications. This 1500VA UPS mini-tower offers powerful and reliable protection from downtime and damage caused by power spikes, swells and brownouts. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. With sine wave output, this line interactive UPS ensures availability of network closets and Edge data centers. It operates at up to 98% efficiency in normal operation mode, providing energy savings. Add optional Vertiv Intellislot SNMP/Webcards for remote power management and OS's shutdown with free Vertiv Power Assist software. The Edge family has a wide range of power ratings, from 500VA up to 3000VA and is available in multiple form factors: mini-tower, 1U rack and rack/tower. It is easy to install, configure and operate and comes with intuitive, color LCD screen.
Specs
| Weight & dimensions |
| Width |
145 mm |
| Depth |
480 mm |
| Height |
220 mm |
| Weight |
20 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-25 - 55 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Operating altitude |
0 - 3000 m |
| Ports & interfaces |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| AC outlets quantity |
5 AC outlet(s) |
| USB port |
Yes |
| Other features |
| Nominal output voltage |
200-240 V |
| Nominal input voltage |
230 V |
| Battery |
| Battery recharge time |
3 h |
| Design |
| Form factor |
Tower |
| Product colour |
Black |
| Display type |
LCD |
| Features |
| UPS topology |
Line-Interactive |
| Output power capacity |
1.5 kVA |
| Output power |
1350 W |
| Waveform |
Pure sine |
| Input operation voltage (min) |
166 V |
| Input operation voltage (max) |
278 V |
| Input frequency |
45/65 Hz |
| Output operation voltage (min) |
200 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
624 J |
| Logistics data |
| Harmonized System (HS) code |
85078000 |
| Country of origin |
China |
| Packaging data |
| Package width |
230 mm |
| Package depth |
570 mm |
| Package height |
325 mm |
| Package weight |
23 kg |
| Certification |
| Compliance certificates |
CE, RoHS |
| Certification |
CE, CB Report, EAC, RCM, UKCA |
| Safety regulation & standards |
| Safety |
Safety IEC/EN62040-1 |
Features
Vertiv Liebert Edge Uninterruptible Power Supply (UPS) - 1500VA 1350W 230V Line Interactive AVR Mini Tower |0.9 PF. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 1350 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 5 AC outlet(s). Battery recharge time: 3 h. Form factor: Tower, Product colour: Black, Display type: LCD. Compliance certificates: CE, RoHS, Certification: CE, CB Report, EAC, RCM, UKCA
Product Description
The Vertiv Edge uninterruptible power supply (UPS) is designed to protect server and networking equipment in distributed and Edge IT applications. This 1500VA UPS mini-tower offers powerful and reliable protection from downtime and damage caused by power spikes, swells and brownouts. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. With sine wave output, this line interactive UPS ensures availability of network closets and Edge data centers. It operates at up to 98% efficiency in normal operation mode, providing energy savings. Add optional Vertiv Intellislot SNMP/Webcards for remote power management and OS's shutdown with free Vertiv Power Assist software. The Edge family has a wide range of power ratings, from 500VA up to 3000VA and is available in multiple form factors: mini-tower, 1U rack and rack/tower. It is easy to install, configure and operate and comes with intuitive, color LCD screen.
