Scheduler
Digital Signage Monitor Software allows many important features such as Scheduler. Scheduler sets your display turn on/off time easily and lets you not to worry about the status of your displays in any time.
Auto Launch
We have made it easy to give any HTML5-based application link to the display within the SoC software. Upon this, the display will start with the given link. The application can either be an offline or an online application, allowing the customers to execute their own application.
Usb Auto-Play
You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.
Usb Security
This series lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.
Pixel Shifting
Pixel Shifting is designed to be activated inside the SoC in order to prevent for potential risk of image sticking, caused by constant content. With this feature turned on, pixels on the screen will move in an interval while causing no interference of visual experience.
Operation Time Support
Professional Panels used with this series are quality confirmed to operate 16 hours a day without any issues. Upon this, the series come with 2500 Nits brightness levels suitable for medial indoor environment.
Signal Failover
Our SoC Software has a protection for “No Signal” scenario. If the USB is unplugged after your content is set to be displayed with USB, the display will either show your customized banner or search for any other signal from other sources (HDMI, Display Port, etc.). This failover protection is constructed for higher user experience.
SoC Content Management
With quad core SoC (System on Chip), this Series displays are the digital signage monitors for both offline designed content and cloud-based managed content. This helps your digital content to be displayed in the displays by content management systems.
Subtle Design
This series’ displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, OPS-slot, detachable power plug, carrying handles and IR extender.
Built-in Connectivity
This series features wired and wireless connectivity such as embedded WiFi and Bluetooth. Due to the wireless capabilities, the displays can easily gather its content without any external device. Moreover, WiFi allows screen sharing to be enjoyed with Miracast.
Daisy Chain
The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.
Open Platform Support
Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on our displays.
Display Control
Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.
OPS Support
All our products in this series have compliance with OPS (Open Pluggable Standard). OPS will empower your screens with enhanced processing power and ability to choose Windows or Android as your operating system to fit your specific application.
Touch Support
Our touch screens are compatible with this series. Infrared (IR) Touch Screens is designed to equip your current product with user-interactivity allowing the display to be smart display and many interactive applications to be enjoyed by the end users. The design also permits any person to overlay the touch screen on the display easily.
External Device Connections
You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, our monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.
Specs
| Weight & dimensions |
| Width |
1234 mm |
| Depth |
142 mm |
| Height |
705 mm |
| Weight |
39 kg |
| Display |
| Display diagonal |
139.7 cm (55") |
| Display type |
LED |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
2500 cd/m² |
| HD type |
Full HD |
| Touchscreen |
Y |
| Response time |
6 ms |
| Contrast ratio (typical) |
5000:1 |
| Contrast ratio (dynamic) |
1000000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
16.78 million colours |
| Active display area (W x H) |
1210 x 681 mm |
| Panel life |
50000 h |
| Colour depth |
8 bit |
| Packaging data |
| Package width |
1480 mm |
| Package depth |
265 mm |
| Package height |
930 mm |
| Package weight |
46 kg |
| Audio |
| Built-in speaker(s) |
Y |
| Number of built-in speakers |
2 |
| RMS rated power |
10 W |
| Power |
| Power consumption (standby) |
3 W |
| AC input voltage |
110 - 240 V |
| AC input frequency |
50 / 60 Hz |
| Ports & interfaces |
| HDMI ports quantity |
2 |
| DVI port |
N |
| VGA (D-Sub) input ports |
1 |
| USB port |
Y |
| Ethernet LAN |
Y |
| HDMI version |
2.0 |
| USB ports quantity |
2 |
| USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
| Component video (YPbPr/YCbCr) in |
1 |
| RS-232 interface |
Y |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Other features |
| Quick start guide |
Y |
| Design |
| Design |
Digital signage flat panel |
| Product colour |
Black |
| VESA mounting |
Y |
| Panel mounting interface |
400 x 400 mm |
| Bezel width (bottom) |
3.8 cm |
| Bezel width (side) |
3.8 cm |
| Bezel width (top) |
3.8 cm |
| Computer system |
| Computer system |
N |
| Packaging content |
| Cables included |
IR |
| Quick start guide |
Y |
Features

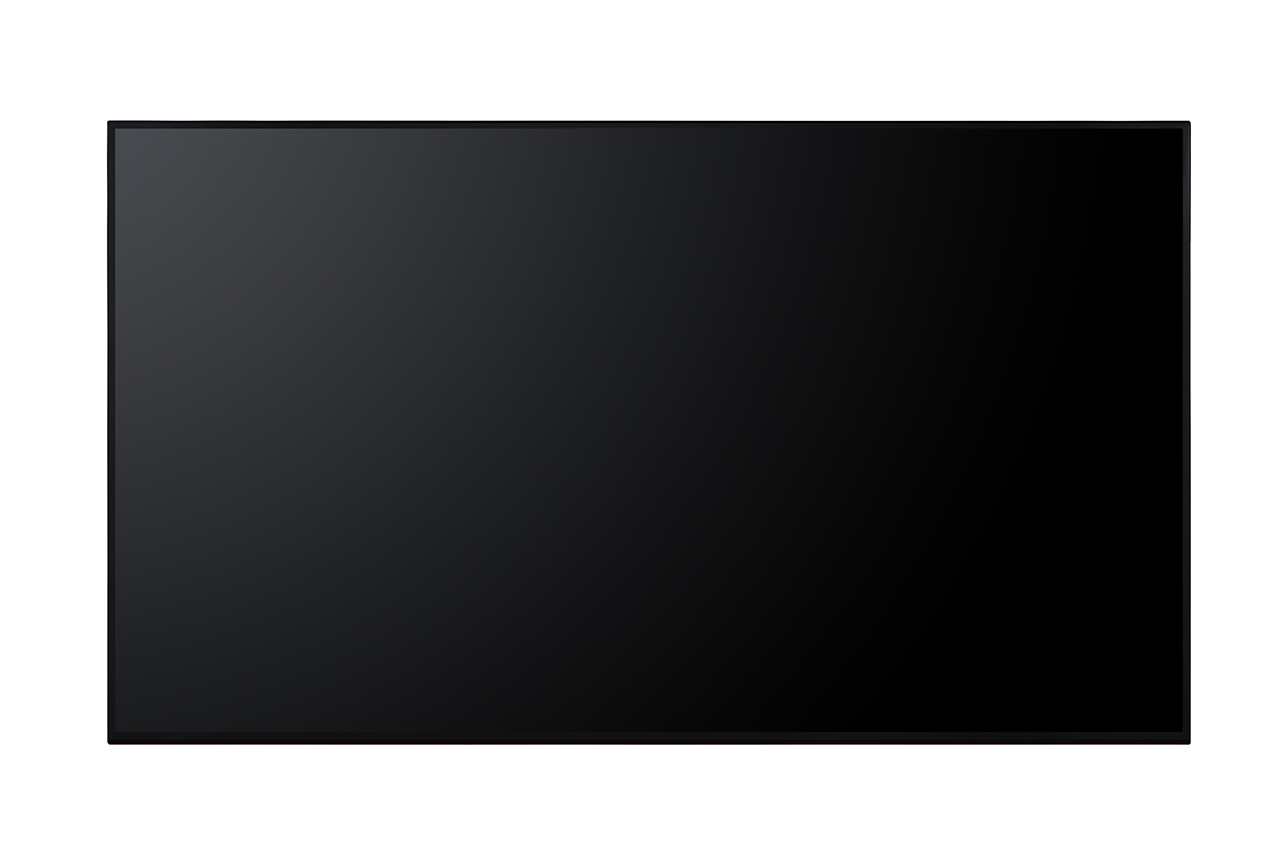

Vestel PDX55S257/H. Display diagonal: 139.7 cm (55"), Display type: LED, Display resolution: 1920 x 1080 pixels. USB version: 2.0/3.2 Gen 1 (3.1 Gen 1). RMS rated power: 10 W. Design: Digital signage flat panel, Product colour: Black, Panel mounting interface: 400 x 400 mm. Power consumption (standby): 3 W, AC input voltage: 110 - 240 V, AC input frequency: 50 / 60 Hz
Product Description
Scheduler
Digital Signage Monitor Software allows many important features such as Scheduler. Scheduler sets your display turn on/off time easily and lets you not to worry about the status of your displays in any time.
Auto Launch
We have made it easy to give any HTML5-based application link to the display within the SoC software. Upon this, the display will start with the given link. The application can either be an offline or an online application, allowing the customers to execute their own application.
Usb Auto-Play
You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.
Usb Security
This series lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.
Pixel Shifting
Pixel Shifting is designed to be activated inside the SoC in order to prevent for potential risk of image sticking, caused by constant content. With this feature turned on, pixels on the screen will move in an interval while causing no interference of visual experience.
Operation Time Support
Professional Panels used with this series are quality confirmed to operate 16 hours a day without any issues. Upon this, the series come with 2500 Nits brightness levels suitable for medial indoor environment.
Signal Failover
Our SoC Software has a protection for “No Signal” scenario. If the USB is unplugged after your content is set to be displayed with USB, the display will either show your customized banner or search for any other signal from other sources (HDMI, Display Port, etc.). This failover protection is constructed for higher user experience.
SoC Content Management
With quad core SoC (System on Chip), this Series displays are the digital signage monitors for both offline designed content and cloud-based managed content. This helps your digital content to be displayed in the displays by content management systems.
Subtle Design
This series’ displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, OPS-slot, detachable power plug, carrying handles and IR extender.
Built-in Connectivity
This series features wired and wireless connectivity such as embedded WiFi and Bluetooth. Due to the wireless capabilities, the displays can easily gather its content without any external device. Moreover, WiFi allows screen sharing to be enjoyed with Miracast.
Daisy Chain
The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.
Open Platform Support
Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on our displays.
Display Control
Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.
OPS Support
All our products in this series have compliance with OPS (Open Pluggable Standard). OPS will empower your screens with enhanced processing power and ability to choose Windows or Android as your operating system to fit your specific application.
Touch Support
Our touch screens are compatible with this series. Infrared (IR) Touch Screens is designed to equip your current product with user-interactivity allowing the display to be smart display and many interactive applications to be enjoyed by the end users. The design also permits any person to overlay the touch screen on the display easily.
External Device Connections
You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, our monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.
