Stock Status: 1x unit in stock

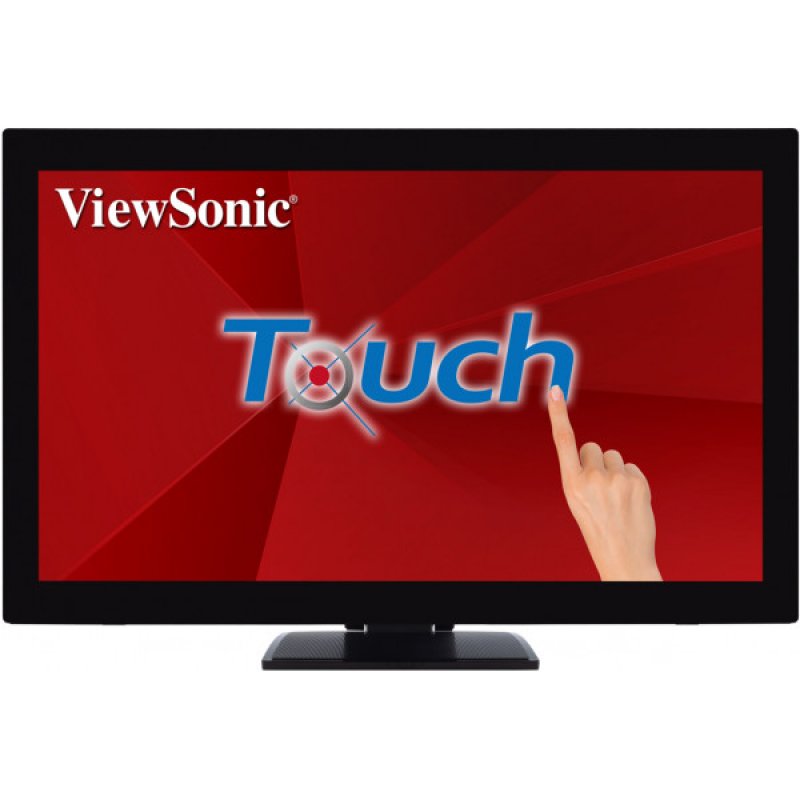

The ViewSonic® TD2760 is an ideal solution for both commercial and consumer touch-screen applications. With an intuitive 10-point multi-touch display and a Full 1080p HD resolution, the 27-inch TD2760 delivers a versatile solution for use in the office or at home, as well as for use as an information kiosk in public areas, retail, and corporate sectors. SuperClear® IPS Panel technology with ultra-wide viewing angles and 50M:1 MEGA Dynamic Contrast Ratio bring greater definition and clarity to multimedia content. For added convenience, cross-platform compatibility works with operating systems such as Windows 10, Linux, Chrome, and Android. Built-in connectivity options include DisplayPort, HDMI, and VGA ports along with a VESA compatible mount design, offering additional convenience for use as a wall-mount display. With serial port RS232 and HDMI CEC, the TD2760 can directly control connected devices. Even more, the ergonomic stand makes it easy for the user to tilt, raise, and lay the monitor flat for the most natural position, and create a comfortable working environment. Lastly, low power consumption with ENERGY STAR certification saves energy costs while reducing carbon emissions.
10-POINT MULTI-TOUCH
With 10-point multi-touch capabilities, multiple users can simultaneously write or draw on the display's surface using styluses or their fingers – or both at the same time.
SUPERCLEAR ® MVA PANEL TECHNOLOGY
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
ERGONOMIC DUAL-HINGE DESIGN
A dual-hinge stand allows the screen to be tilted and adjusted, or rest flat on a desk or table. This sturdy ergonomic design maximizes comfort and productivity, and makes this touch display well suited to a variety of touch scenarios in the home, school or office.
VERSATILE CONNECTIVITY
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your display to a variety of devices.
CONTROL MULTIPLE DEVICES
RS232 offers local control for set-top boxes and other RS232 connected devices, directly with the display’s remote controller. HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display’s remote controller.
Specs
| Weight & dimensions |
| Width (with stand) |
660 mm |
| Depth (with stand) |
239 mm |
| Height (with stand) |
443 mm |
| Weight (with stand) |
7.9 kg |
| Width (without stand) |
660 mm |
| Depth (without stand) |
58 mm |
| Height (without stand) |
410 mm |
| Weight (without stand) |
5.5 kg |
| Power |
| Energy efficiency class (SDR) |
F |
| Energy consumption (SDR) per 1000 hours |
19 kWh |
| Power consumption (typical) |
26 W |
| Power consumption (standby) |
0.3 W |
| Power consumption (off) |
0.3 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power supply type |
AC |
| European Product Registry for Energy Labelling (EPREL) code |
384384 |
| Display |
| Display diagonal |
68.6 cm (27") |
| Display resolution |
1920 x 1080 pixels |
| Native aspect ratio |
16:9 |
| Display technology |
LED |
| Touchscreen |
Yes |
| HD type |
Full HD |
| Panel type |
VA |
| Response time |
6 ms |
| Screen shape |
Flat |
| Contrast ratio (typical) |
3000:1 |
| Display number of colours |
16.78 million colours |
| LED backlight |
Yes |
| Backlight type |
LED |
| Touchscreen type |
Multi-user |
| Touchscreen technology |
Projected capacitive system |
| Touch technology |
Multi-touch |
| Number of simultaneous touchpoints |
10 |
| Display brightness |
300 cd/m² |
| Anti-glare screen |
Yes |
| Aspect ratio |
16:9 |
| Contrast ratio (dynamic) |
50000000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.311 x 0.311 mm |
| Horizontal scan range |
15 - 90 kHz |
| Vertical scan range |
50 - 76 Hz |
| Viewable size, horizontal |
59.8 cm |
| Viewable size, vertical |
33.6 cm |
| Display diagonal (metric) |
68.58 cm |
| Surface hardness |
6H |
| Separate H/V sync |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Ports & interfaces |
| Built-in USB hub |
Yes |
| HDMI |
Yes |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type |
USB Type-B |
| Number of upstream ports |
1 |
| Number of USB Type-B upstream ports quantity |
1 |
| USB Type-A downstream ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
1.4 |
| DisplayPorts quantity |
1 |
| DisplayPort version |
1.2 |
| Audio input |
1 |
| Audio output |
1 |
| HDCP |
Yes |
| RS-232 ports |
1 |
| Ergonomics |
| VESA mounting |
Yes |
| Cable lock slot |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Wall mountable |
Yes |
| Cable lock slot type |
Kensington |
| Tilt adjustment |
Yes |
| Tilt angle range |
-4 - 90° |
| On Screen Display (OSD) |
Yes |
| Number of OSD languages |
14 |
| Other features |
| Connection to PC |
Yes |
| Accessories included |
Power Cable, VGA Cable, HDMI Cable, USB Cable, Audio Cable |
| Mean time between failures (MTBF) |
30000 h |
| Certification |
MX-CoC, Mexico Energy, CE, CE EMC, CB |
| Design |
| Product colour |
Black |
| Glass thickness |
1.88 mm |
| Performance |
| NVIDIA G-SYNC |
No |
| AMD FreeSync |
No |
| Multimedia |
| Built-in speaker(s) |
Yes |
| Built-in camera |
No |
| Number of speakers |
2 |
| RMS rated power |
4 W |
| Built-in microphone |
No |
| Packaging data |
| Package width |
753 mm |
| Package depth |
204 mm |
| Package height |
525 mm |
| Package weight |
10.2 kg |
| Logistics data |
| Harmonized System (HS) code |
85285210 |
| Packaging content |
| Quick start guide |
Yes |
Features
Viewsonic TD2760. Display diagonal: 68.6 cm (27"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 6 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting. Product colour: Black
Product Description
The ViewSonic® TD2760 is an ideal solution for both commercial and consumer touch-screen applications. With an intuitive 10-point multi-touch display and a Full 1080p HD resolution, the 27-inch TD2760 delivers a versatile solution for use in the office or at home, as well as for use as an information kiosk in public areas, retail, and corporate sectors. SuperClear® IPS Panel technology with ultra-wide viewing angles and 50M:1 MEGA Dynamic Contrast Ratio bring greater definition and clarity to multimedia content. For added convenience, cross-platform compatibility works with operating systems such as Windows 10, Linux, Chrome, and Android. Built-in connectivity options include DisplayPort, HDMI, and VGA ports along with a VESA compatible mount design, offering additional convenience for use as a wall-mount display. With serial port RS232 and HDMI CEC, the TD2760 can directly control connected devices. Even more, the ergonomic stand makes it easy for the user to tilt, raise, and lay the monitor flat for the most natural position, and create a comfortable working environment. Lastly, low power consumption with ENERGY STAR certification saves energy costs while reducing carbon emissions.
10-POINT MULTI-TOUCH
With 10-point multi-touch capabilities, multiple users can simultaneously write or draw on the display's surface using styluses or their fingers – or both at the same time.
SUPERCLEAR ® MVA PANEL TECHNOLOGY
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
ERGONOMIC DUAL-HINGE DESIGN
A dual-hinge stand allows the screen to be tilted and adjusted, or rest flat on a desk or table. This sturdy ergonomic design maximizes comfort and productivity, and makes this touch display well suited to a variety of touch scenarios in the home, school or office.
VERSATILE CONNECTIVITY
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your display to a variety of devices.
CONTROL MULTIPLE DEVICES
RS232 offers local control for set-top boxes and other RS232 connected devices, directly with the display’s remote controller. HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display’s remote controller.
