Stock Status: 1x unit in stock

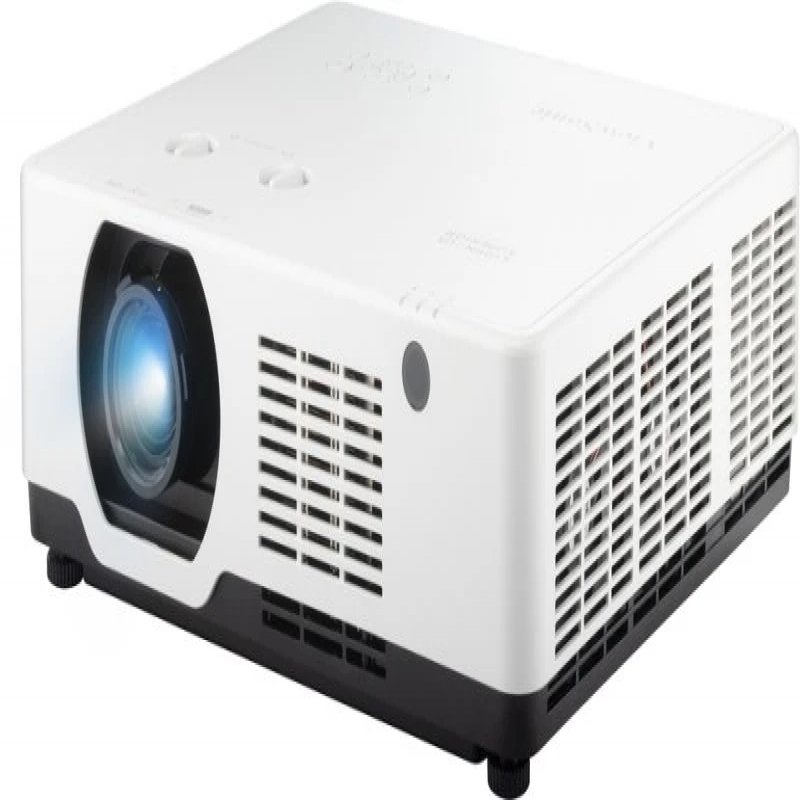

The LSC601WU is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 2nd generation laser phosphor technology, this projector delivers 6,000 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300” in WUXGA resolution. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like H/V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC601WU offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.
Bright Images for Large Venues
Delivering 6,000 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces
Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.?
Next-Gen Meeting Experience with 21:9 Aspect Ratio
The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.
Adaptable to Any Environment
Featuring tool-free lens shift control knobs, 1.6x optical zoom, H/V keystone correction, and 4-corner adjustment capabilities, this projector allows image adjustments without relocation, ensuring it fits any environment.
2nd Generation Laser Phosphor Technology
The projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.
Centralized Control for Management Efficiency
The projector is compatible with Crestron, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency?.
Specs
| Weight & dimensions |
| Weight |
7.9 kg |
| Width |
405 mm |
| Depth |
358 mm |
| Height |
137 mm |
| Package width |
510 mm |
| Package depth |
498 mm |
| Package height |
260 mm |
| Package weight |
10.9 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Projector |
| Projector brightness |
6000 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
WUXGA (1920x1200) |
| Contrast ratio (typical) |
3000000:1 |
| Native aspect ratio |
16:10 |
| Screen size compatibility |
762 - 7620 mm (30 - 300") |
| Supported aspect ratios |
16:10, 16:9 |
| Projection distance |
0.7 - 11.37 m |
| Number of colours |
1.07 billion colours |
| Keystone correction, horizontal |
-30 - 30° |
| Keystone correction, vertical |
-30 - 30° |
| Horizontal synchronization (min) |
15 kHz |
| Horizontal synchronization (max) |
100 kHz |
| Vertical synchronization (max) |
0.085 kHz |
| Video |
| Full HD |
Yes |
| Supported graphics resolutions |
1920 x 1200 (WUXGA) |
| Display |
| Built-in display |
No |
| Lens system |
| Focal length range |
15.3 - 24.6 mm |
| Aperture range (F-F) |
1.58 - 2.02 |
| Zoom capability |
Yes |
| Throw ratio |
1.08 - 1.76 |
| Offset |
5% |
| Power |
| Power source |
AC |
| Power consumption (typical) |
330 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Ports & interfaces |
| HDMI ports quantity |
2 |
| Audio (L/R) in |
1 |
| Serial interface type |
RS-232 |
| USB 2.0 Type-B ports quantity |
1 |
| AC (power) in |
Yes |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Packaging content |
| Remote control included |
Yes |
| Manual |
Yes |
| Design |
| Product type |
Standard throw projector |
| Market positioning |
Education |
| Product colour |
White |
| Multimedia |
| Built-in speaker(s) |
Yes |
| RMS rated power |
16 W |
| Number of built-in speakers |
1 |
| Features |
| Noise level |
35 dB |
| Noise level (economic mode) |
25 dB |
| Light source |
| Light source type |
Lamp |
| Service life of light source |
20000 h |
| Service life of light source (economic mode) |
30000 h |
Features
Viewsonic LSC601WU. Projector brightness: 6000 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Lamp, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focal length range: 15.3 - 24.6 mm, Aperture range (F-F): 1.58 - 2.02, Throw ratio: 1.08 - 1.76. Supported graphics resolutions: 1920 x 1200 (WUXGA). Serial interface type: RS-232
Product Description
The LSC601WU is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 2nd generation laser phosphor technology, this projector delivers 6,000 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300” in WUXGA resolution. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like H/V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC601WU offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.
Bright Images for Large Venues
Delivering 6,000 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces
Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.?
Next-Gen Meeting Experience with 21:9 Aspect Ratio
The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.
Adaptable to Any Environment
Featuring tool-free lens shift control knobs, 1.6x optical zoom, H/V keystone correction, and 4-corner adjustment capabilities, this projector allows image adjustments without relocation, ensuring it fits any environment.
2nd Generation Laser Phosphor Technology
The projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.
Centralized Control for Management Efficiency
The projector is compatible with Crestron, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency?.
