Stock Status: 1x unit in stock

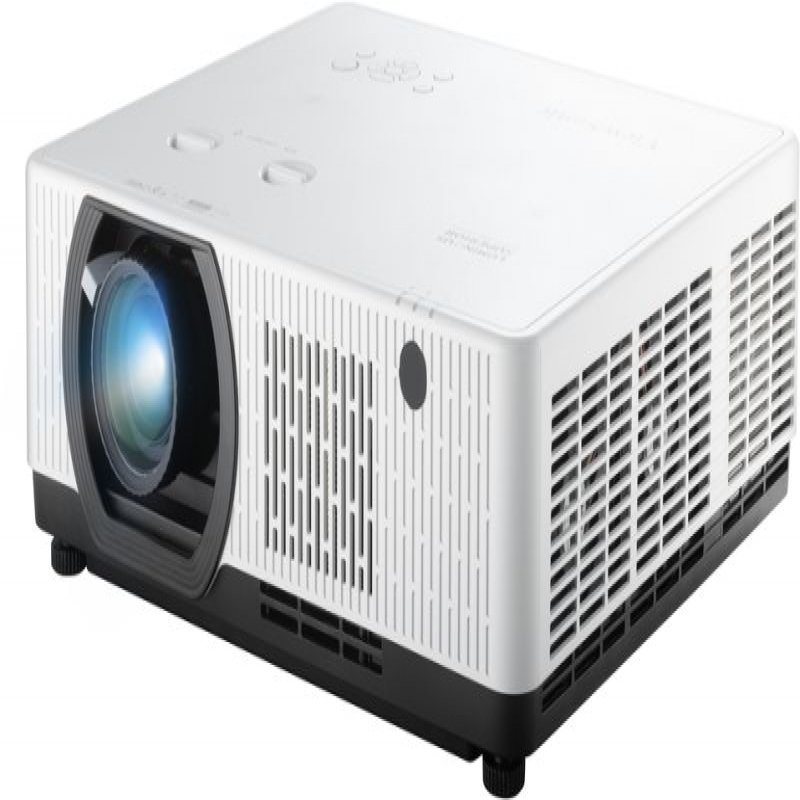

The LSC801WU is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 2nd generation laser phosphor technology, this projector delivers 8,000 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300” in WUXGA resolution. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like H/V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC801WU offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.
Bright Images for Large Venues
Delivering 8,000 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces.
Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.?
Next-Gen Meeting Experience with 21:9 Aspect Ratio
The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.
Adaptable to Any Environment
Featuring tool-free lens shift control knobs, 1.6x optical zoom, H/V keystone correction, and 4-corner adjustment capabilities, this projector allows image adjustments without relocation, ensuring it fits any environment.
2nd Generation Laser Phosphor Technology
The projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.
Centralized Control for Management Efficiency
The projector is compatible with Crestron, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency?.
Specs
| Weight & dimensions |
| Weight |
7.9 kg |
| Width |
405 mm |
| Depth |
358 mm |
| Height |
137 mm |
| Package width |
510 mm |
| Package depth |
498 mm |
| Package height |
260 mm |
| Package weight |
10.9 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Projector |
| Projector brightness |
8000 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
WUXGA (1920x1200) |
| Contrast ratio (typical) |
3000000:1 |
| Native aspect ratio |
21:9 |
| Smart projector |
No |
| Screen size compatibility |
762 - 7620 mm (30 - 300") |
| Projection distance |
0.78 - 12.99 m |
| Number of colours |
1.07 billion colours |
| Keystone correction, horizontal |
+-25° |
| Keystone correction, vertical |
+-30° |
| Matrix size |
1.63 cm (0.64") |
| Matrix type |
MLA |
| Horizontal synchronization (min) |
15 kHz |
| Horizontal synchronization (max) |
100 kHz |
| Vertical synchronization (min) |
0.023 kHz |
| Vertical synchronization (max) |
0.085 kHz |
| Screen size (max) |
7.62 m (300") |
| Video |
| Full HD |
Yes |
| 3D |
No |
| Supported graphics resolutions |
640 x 480 (VGA), 3840 x 2160 |
| Supported video modes |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Display |
| Built-in display |
No |
| Lens system |
| Focal length range |
17.2 - 27.7 mm |
| Aperture range (F-F) |
1.5 - 2.08 |
| Zoom capability |
Yes |
| Digital zoom |
4x |
| Optical zoom |
1.6x |
| Throw ratio |
1.2 - 2 |
| Horizontal lens shift range |
-29 - 29% |
| Vertical lens shift range |
0 - 60% |
| Offset |
0% |
| Power |
| Power source |
AC |
| Power consumption (typical) |
385 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Ports & interfaces |
| VGA (D-Sub) ports quantity |
2 |
| HDMI ports quantity |
2 |
| Composite video in |
0 |
| Component video (YPbPr/YCbCr) in |
0 |
| DVI port |
No |
| Audio (L/R) in |
0 |
| Serial interface type |
RS-232 |
| HDMI connector type |
Full-size |
| HDMI version |
1.4 |
| USB 2.0 Type-A ports quantity |
1 |
| USB 2.0 Type-B ports quantity |
1 |
| PC Audio in |
Yes |
| PC Audio out |
Yes |
| PC in (D-Sub) |
Yes |
| AC (power) in |
Yes |
| Networking |
| Smart TV |
No |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Ethernet LAN (RJ-45) ports |
2 |
| Storage |
| Card reader integrated |
No |
| Packaging content |
| Remote control included |
Yes |
| Cables included |
AC |
| Design |
| Product type |
Standard throw projector |
| Product colour |
White |
| Multimedia |
| Built-in speaker(s) |
Yes |
| RMS rated power |
16 W |
| Technical details |
| Image lag time |
60 ms |
| Features |
| Noise level |
37 dB |
| Noise level (economic mode) |
27 dB |
| HDCP |
Yes |
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Multi |
| HDCP version |
1.4 |
| Air filter |
Yes |
| Light source |
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Service life of light source (economic mode) |
30000 h |
| Light source brightness |
8500 lm |
| Logistics data |
| Quantity per pack |
1 pc(s) |
| Pallet gross length |
100 cm |
| Pallet gross width |
120 cm |
| Pallet gross height |
170 cm |
| Products per master (outer) case |
1 pc(s) |
| Harmonized System (HS) code |
8528620000 |
Features
Viewsonic LSC801WU. Projector brightness: 8000 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focal length range: 17.2 - 27.7 mm, Aperture range (F-F): 1.5 - 2.08, Digital zoom: 4x. Supported graphics resolutions: 640 x 480 (VGA), 3840 x 2160, Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p. Serial interface type: RS-232, HDMI connector type: Full-size
Product Description
The LSC801WU is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 2nd generation laser phosphor technology, this projector delivers 8,000 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300” in WUXGA resolution. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like H/V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC801WU offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.
Bright Images for Large Venues
Delivering 8,000 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces.
Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.?
Next-Gen Meeting Experience with 21:9 Aspect Ratio
The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.
Adaptable to Any Environment
Featuring tool-free lens shift control knobs, 1.6x optical zoom, H/V keystone correction, and 4-corner adjustment capabilities, this projector allows image adjustments without relocation, ensuring it fits any environment.
2nd Generation Laser Phosphor Technology
The projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.
Centralized Control for Management Efficiency
The projector is compatible with Crestron, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency?.
