Stock Status: 1x unit in stock

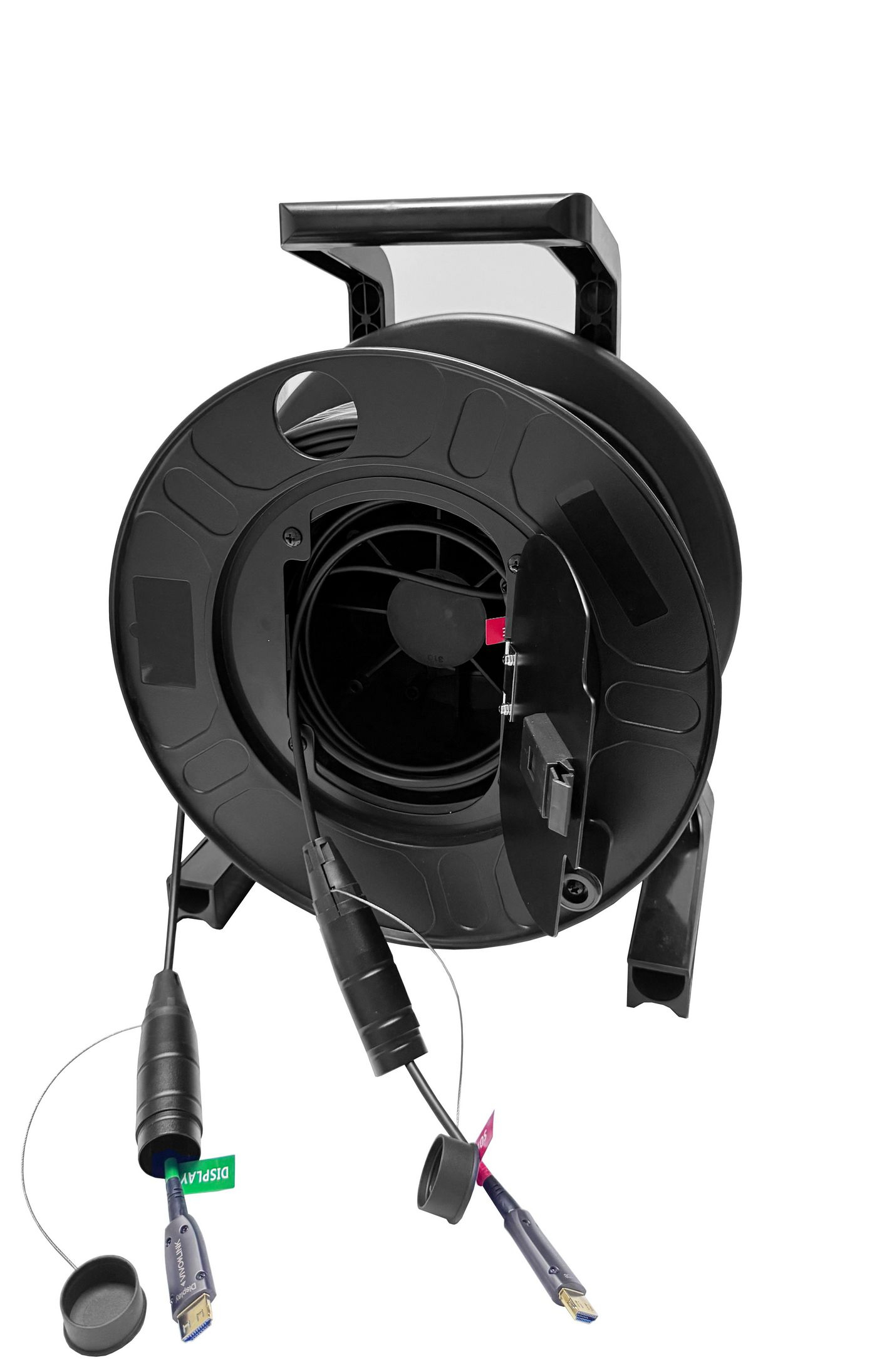

Vivolink Optical HDMI 4K Armored Cable, supplied on a robust 70-meter cable drum designed for safe transport and efficient handling.
The drum features an extra-high outer flange, making it easier to reel the cable in evenly and without slipping. An integrated connector compartment allows the HDMI connector to be securely stored inside the drum during reeling, preventing the cable head from rotating freely and reducing strain on the connector.
This thoughtful drum design improves handling during installation, transport, and storage, while helping to protect the cable and connector from damage.
HDMI 2.0 Support 4K/60Hz 4:4:4 18Gbps, HDR 12bit, HDCP2.2, 3D & ARC. Slim size of 4.0mm.
Typical installation:
Places where high resolution is required on long distance.
Tensile Strength (Pull resistance): 20 kg.
Maximum pressure load on cable: 305 kg.
Specs
| Features |
| Cable length |
70 m |
| Connector 1 |
HDMI Type A (Standard) |
| Connector 2 |
HDMI Type A (Standard) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Product colour |
Black |
| Connector contacts plating |
Gold |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| HDMI version |
2.0 |
| Supported graphics resolutions |
4096 x 2160 |
| Supported video modes |
2160p |
| Dolby technologies |
DTS-HD Master Audio |
| HDCP version |
2.2 |
| Data transfer rate |
18 Gbit/s |
| High Dynamic Range (HDR) technology |
High Dynamic Range 10 (HDR10) |
| Maximum resolution |
4096 x 2160 pixels |
| Maximum refresh rate |
60 Hz |
| Cable material |
Fiber optic |
| Colour depth |
16 bit |
| Weight & dimensions |
| Cable diameter |
5 mm |
| Weight |
1.61 kg |
| Operational conditions |
| Operating temperature (T-T) |
-20 - 60 °C |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package weight |
5 kg |
Features
Vivolink PROHDMIOP70AM-DRUM. Cable length: 70 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, HDMI version: 2.0, Maximum resolution: 4096 x 2160 pixels, Data transfer rate: 18 Gbit/s, Product colour: Black
Product Description
Vivolink Optical HDMI 4K Armored Cable, supplied on a robust 70-meter cable drum designed for safe transport and efficient handling.
The drum features an extra-high outer flange, making it easier to reel the cable in evenly and without slipping. An integrated connector compartment allows the HDMI connector to be securely stored inside the drum during reeling, preventing the cable head from rotating freely and reducing strain on the connector.
This thoughtful drum design improves handling during installation, transport, and storage, while helping to protect the cable and connector from damage.
HDMI 2.0 Support 4K/60Hz 4:4:4 18Gbps, HDR 12bit, HDCP2.2, 3D & ARC. Slim size of 4.0mm.
Typical installation:
Places where high resolution is required on long distance.
Tensile Strength (Pull resistance): 20 kg.
Maximum pressure load on cable: 305 kg.
