Stock Status: 1x unit in stock

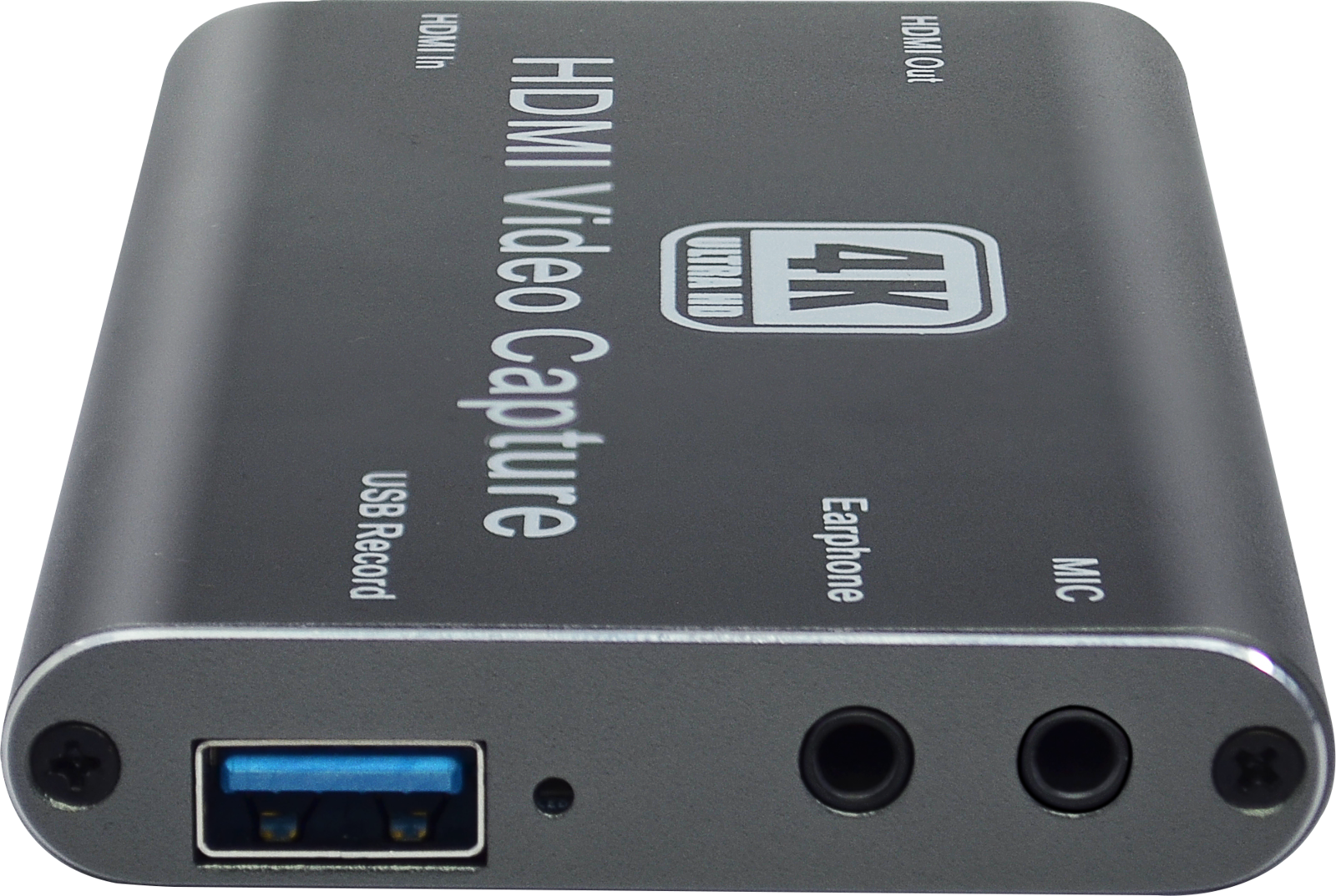

The VLCAPTURE1 is a HDMI to USB video capture device. It is designed to capture video and audio signals from HDMI source, and the captured video and audio can be saved to the PC/Laptop through supplied USB cable
Specs
| Power |
| Power supply type |
USB |
| Weight & dimensions |
| Width |
102 mm |
| Depth |
61 mm |
| Height |
13 mm |
| Weight |
75 g |
| Ports & interfaces |
| USB port |
Yes |
| USB connector type |
USB Type-A |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| HDMI ports quantity |
2 |
| HDMI in |
1 |
| Number of HDMI outputs |
1 |
| Audio (L/R) in |
1 |
| Headphone outputs |
1 |
| Packaging data |
| Package weight |
164 g |
| Package height |
40 mm |
| Package width |
161 mm |
| Package depth |
130 mm |
| Other features |
| Power requirements |
USB3.0 |
| Video in |
HDMI |
| Maximum resolution |
3840 x 2160 pixels |
| Dimensions (WxDxH) |
102 x 61 x 13 mm |
| File formats |
| Video compression formats |
MPEG4 |
| Converter type |
Format converter |
| Operating system/software |
| Windows operating systems supported |
Yes |
| Mac compatibility |
Yes |
| Linux operating systems supported |
Yes |
| Software |
| Windows operating systems supported |
Yes |
| Mac compatibility |
Yes |
| Linux operating systems supported |
Yes |
| Packaging content |
| Cables included |
USB Type-A |
| User guide |
Yes |
| Manual |
Yes |
| Quantity |
1 |
| Audio |
| Audio support |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
-5 - 55 °C |
| Storage temperature (T-T) |
-25 - 70 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Performance |
| Product colour |
Silver |
| Internal |
No |
| Host interface |
HDMI |
| Video capture resolution (max) |
1920 x 1080 pixels |
| LED indicators |
Power |
| Plug and Play |
Yes |
Features
Vivolink VLCAPTURE1. Product colour: Silver, Host interface: HDMI, Video capture resolution (max): 1920 x 1080 pixels. Video compression formats: MPEG4, Converter type: Format converter. USB connector type: USB Type-A, USB version: 3.2 Gen 1 (3.1 Gen 1). Power supply type: USB. Width: 102 mm, Depth: 61 mm, Height: 13 mm
Product Description
The VLCAPTURE1 is a HDMI to USB video capture device. It is designed to capture video and audio signals from HDMI source, and the captured video and audio can be saved to the PC/Laptop through supplied USB cable
