WiFi Coverage Everywhere. Always Secure.
Whole-home Coverage
People enjoy family time together with good WiFi performance provided by ZenWiFi

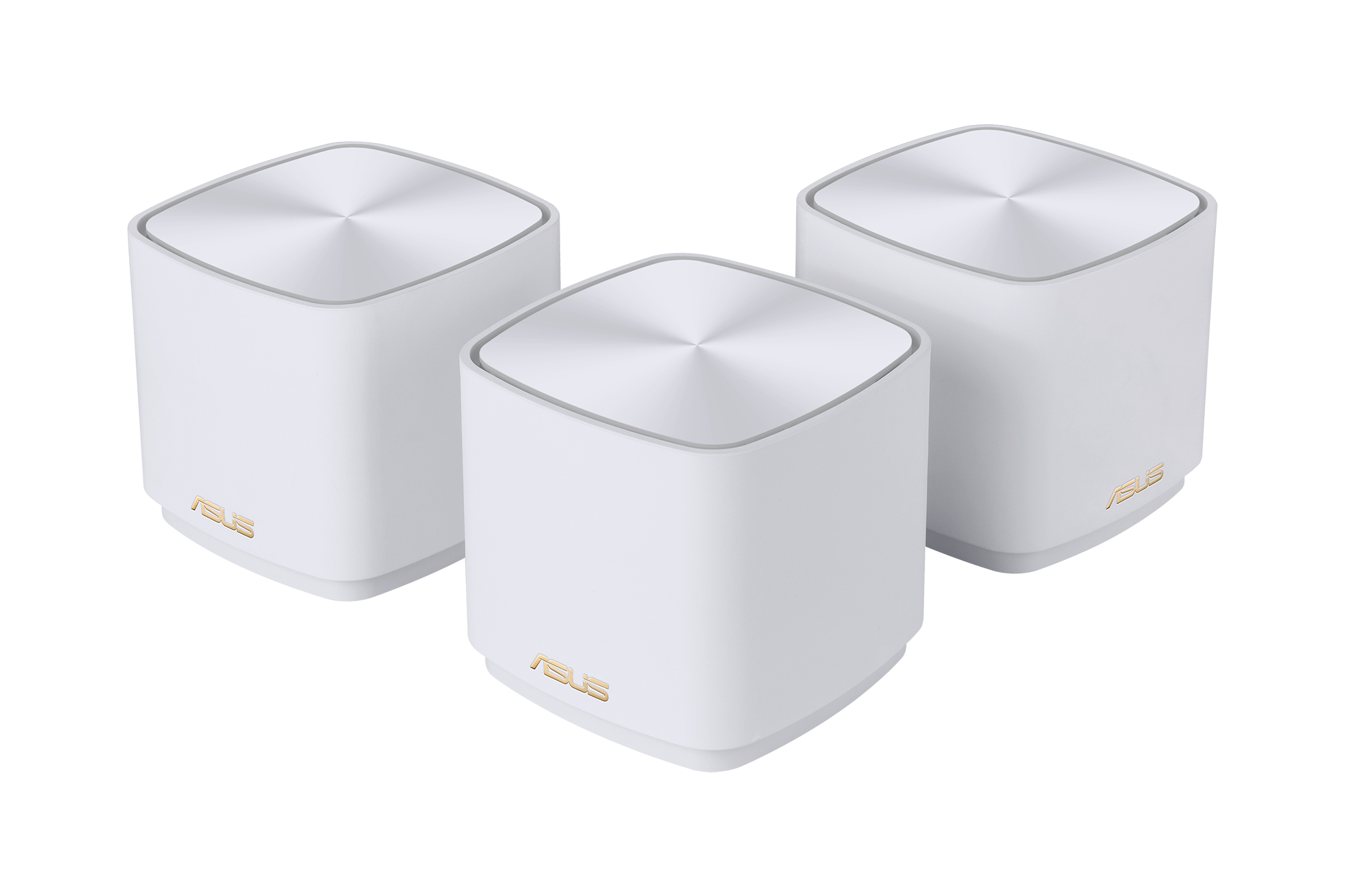

The ZenWiFi XD5 system consists of three ASUS AX3000 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!
WiFi 6
True 8K Streaming
ZenWiFi XD5 puts your WiFi into top gear! With a total bandwidth of up to of 3000 Mbps, it's up to 3X faster* than WiFi 5 routers **.
* Compatible WiFi 6 device required.
** The data compares speed of 2X2 11ax on 5GHz 160 MHz bandwidth with 1024QAM modulation to speed of 2x2 11ac on 5GHz 80MHz with 256QAM modulation.
Explore ultimate WiFi 6 performance
The ASUS ZenWiFi XD5 supports high-speed 160MHz bandwidth*. It dramatically increases network capacity while reducing congestion, delivering higher performance for every WiFi 6 device.
*160MHz bandwidth may be unavailable in the 5GHz band in some regions/countries, due to regulatory restrictions. And to benefit from WiFi 6 router features, compatible WiFi 6 devices are required.
Flexible Network Naming
Uniquely, ZenWiFi lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!
Easier-than-ever Setup
3-step setup with the ASUS Router app
Make the Internet a Safer Place for Everyone
AiProtection Classic with Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app.
Smart Looks for Smart Homes
ZenWiFi XD5 works perfectly with smart-home services — including Alexa skills — and is available in charcoal or white to suit your décor.
Space-saving and Great Design
Comes with mounting holes and a screw pack. Hang it on the wall or place it anywhere, the choice is yours!
AiMesh Technology
Easy setup. Flexible management.
Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.
Specs
| Design |
| Product colour |
White |
| Antenna type |
Internal |
| Product type |
Mesh router |
| LED indicators |
Power |
| Antennas quantity |
2 |
| Maximum coverage |
646.5 m² |
| Reset button |
Yes |
| Packaging content |
| Number of products included |
3 pc(s) |
| Power |
| AC input voltage |
110 - 240 V |
| AC input frequency |
50 - 60 Hz |
| AC adapter output voltage |
12 V |
| AC adapter output current |
1.5 A |
| Wireless LAN features |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) |
574 Mbit/s |
| WLAN data transfer rate (second band) |
2402 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Security algorithms |
WPA, WPA2, WPA2-Enterprise, WPA3, WPS |
| Point-to-point protocol over Ethernet (PPPoE) |
Yes |
| Static IP |
Yes |
| IGMP snooping |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| VPN support |
VPN Client L2PT
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
2 |
| Ethernet WAN |
Yes |
| DC-in jack |
Yes |
| Features |
| Quality of Service (QoS) support |
Yes |
| DHCP server |
Yes |
| Parental control |
Yes |
| SSID Broadcast |
Yes |
| MIMO |
Yes |
Features
ASUS ZenWiFi XD5 (W-3-PK). Product colour: White, Antenna type: Internal, Product type: Mesh router. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). AC input voltage: 110 - 240 V, AC input frequency: 50 - 60 Hz, AC adapter output voltage: 12 V. Number of products included: 3 pc(s)
Product Description
WiFi Coverage Everywhere. Always Secure.
Whole-home Coverage
People enjoy family time together with good WiFi performance provided by ZenWiFi
The ZenWiFi XD5 system consists of three ASUS AX3000 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!
WiFi 6
True 8K Streaming
ZenWiFi XD5 puts your WiFi into top gear! With a total bandwidth of up to of 3000 Mbps, it's up to 3X faster* than WiFi 5 routers **.
* Compatible WiFi 6 device required.
** The data compares speed of 2X2 11ax on 5GHz 160 MHz bandwidth with 1024QAM modulation to speed of 2x2 11ac on 5GHz 80MHz with 256QAM modulation.
Explore ultimate WiFi 6 performance
The ASUS ZenWiFi XD5 supports high-speed 160MHz bandwidth*. It dramatically increases network capacity while reducing congestion, delivering higher performance for every WiFi 6 device.
*160MHz bandwidth may be unavailable in the 5GHz band in some regions/countries, due to regulatory restrictions. And to benefit from WiFi 6 router features, compatible WiFi 6 devices are required.
Flexible Network Naming
Uniquely, ZenWiFi lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!
Easier-than-ever Setup
3-step setup with the ASUS Router app
Make the Internet a Safer Place for Everyone
AiProtection Classic with Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app.
Smart Looks for Smart Homes
ZenWiFi XD5 works perfectly with smart-home services — including Alexa skills — and is available in charcoal or white to suit your décor.
Space-saving and Great Design
Comes with mounting holes and a screw pack. Hang it on the wall or place it anywhere, the choice is yours!
AiMesh Technology
Easy setup. Flexible management.
Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.
