Stock Status: 1x unit in stock

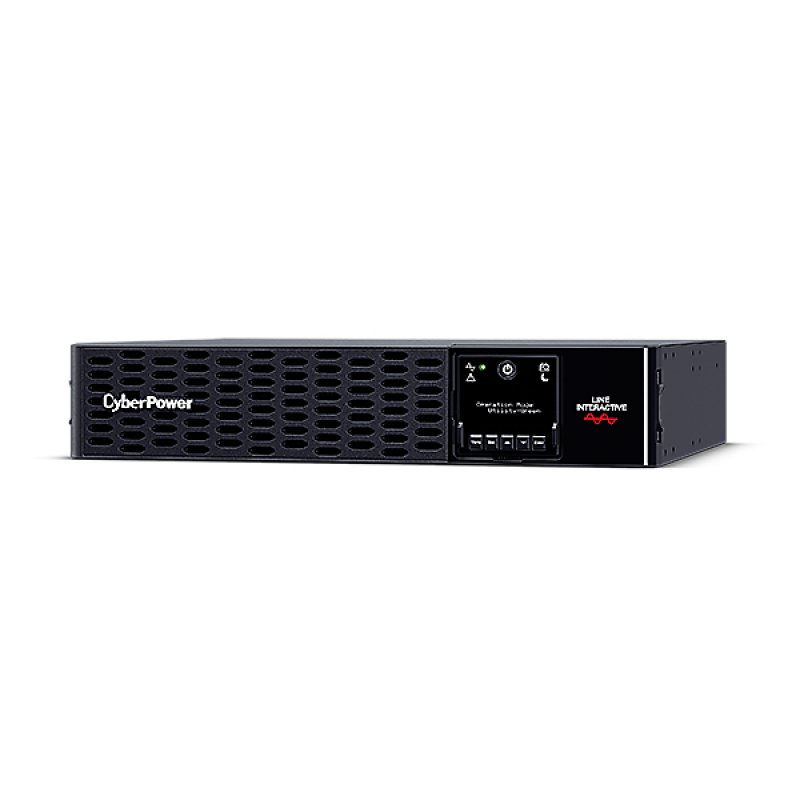

CyberPower PR2200ERTXL2U with rackmount design guarantees power backup protection for home theater systems, multimedia devices, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. The UPS adopts line-interactive topology with Automatic Voltage Regulation (AVR) function, and offers stabilized Pure Sine Wave output to ensure high power quality.
The UPS’s output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. It also features Battery Management Technology to help batteries obtain optimal life span by balancing battery string voltage. Two-phase battery charging can charge the battery quickly and safely. The hot-swappable battery packs allow for easy maintenance without power interruption. Its multi-functional matrix LCD supports intuitive operation and quick configuration. The LCD panel is also rotatable to meet installation requirements.
Specs
| Weight & dimensions |
| Width |
433 mm |
| Depth |
500 mm |
| Height |
86.5 mm |
| Weight |
34.4 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Ports & interfaces |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
C20 coupler |
| AC outlets quantity |
8 AC outlet(s) |
| USB port |
Yes |
| USB 2.0 ports quantity |
1 |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |
| Serial ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| Emergency Power Off (EPO) connector |
Yes |
| Other features |
| Bypass |
GreenPower UPS |
| Battery |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Number of batteries supported |
4 |
| Typical backup time at full load |
3.2 min |
| Typical backup time at half load |
11.2 min |
| Hot-swap battery |
Yes |
| Design |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Housing material |
Metal |
| Rack capacity |
2U |
| Cable length |
2.4 m |
| Display type |
LCD |
| LED indicators |
Error, Operation |
| Features |
| UPS topology |
Line-Interactive |
| Output power capacity |
2.2 kVA |
| Output power |
2200 W |
| Waveform |
Pure sine |
| Input operation voltage (min) |
159 V |
| Input operation voltage (max) |
288 V |
| Input frequency |
50/60 Hz |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Output frequency |
50/60 Hz |
| Automatic Voltage Regulation (AVR) |
Yes |
| Maximum current |
16 A |
| Surge energy rating |
2430 J |
| Response time |
4 ms |
| Number of input phases |
1 |
| Power Factor Correction (PFC) type |
Active |
| EMI/RFI noise filtering |
Yes |
| Noise level |
57.5 dB |
| Surge protection |
Yes |
| Power protection features |
Overload |
| Audible alarm(s) |
Yes |
| Management protocols |
SNMP/HTTP |
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| Logistics data |
| Harmonized System (HS) code |
8504408590 |
| Country of origin |
China |
| Packaging data |
| Package width |
560 mm |
| Package depth |
620 mm |
| Package height |
275 mm |
| Package weight |
42.5 kg |
| Certification |
| Compliance certificates |
RoHS |
| Certification |
CE , FCC Class B , UL , RCM , VCCI |
| Packaging content |
| Cables included |
Serial, USB cable |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
Features
CyberPower PR2200ERTXL2U. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 2200 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 3.2 min, Typical backup time at half load: 11.2 min. Form factor: Rackmount/Tower, Product colour: Black, Housing material: Metal. Compliance certificates: RoHS, Certification: CE , FCC Class B , UL , RCM , VCCI
Product Description
CyberPower PR2200ERTXL2U with rackmount design guarantees power backup protection for home theater systems, multimedia devices, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. The UPS adopts line-interactive topology with Automatic Voltage Regulation (AVR) function, and offers stabilized Pure Sine Wave output to ensure high power quality.
The UPS’s output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. It also features Battery Management Technology to help batteries obtain optimal life span by balancing battery string voltage. Two-phase battery charging can charge the battery quickly and safely. The hot-swappable battery packs allow for easy maintenance without power interruption. Its multi-functional matrix LCD supports intuitive operation and quick configuration. The LCD panel is also rotatable to meet installation requirements.
