Stock Status: 1x unit in stock
IMPROVE WORKFLOW EFFICIENCY AND ACCURACY WITH THE HYBRID PRESENTATION IMAGER BUILT FOR THE LAB
Barcodes found in the lab can be challenging for a general purpose scanner. That’s why the DS9900 Series is purpose-built for lab environments, offering unparalleled productivity and ease of use. You get first-time, every time capture of small, high density, curved and color-coded barcodes. A one-of-a-kind hybrid design provides seamless switching between handheld and hands-free scanning, and an optional RFID model and unrivaled management tools drive workflow efficiency to a new level.
SCAN IT ALL
High density focus and white illumination LEDs easily read dense barcodes on microscope slides, curved barcodes on medicine bottles and blood vials, and barcodes on color-coded specimen trays and biopsy cassettes. An 800 MHz microprocessor, megapixel sensor and exclusive PRZM Intelligent Imaging technology deliver unparalleled scanning performance.
TWO SCANNERS IN ONE
While other products are handheld scanners retrofitted with a base, our award-winning Industrial Design team created the DS9900 Series for handheld and hands-free use. The result? Fast, seamless switching between modes. A sturdy, one-piece design with a small footprint. The right ergonomics. And a scan range that automatically adjusts as needed.
UNRIVALED MANAGEABILITY
Complimentary industry-best tools make it easier than ever to remotely configure scanners, upgrade firmware and format data for your application. Right out of the box, the scanner is configured for common applications and auto-host detect cables automatically select the right host interface — just plug in the scanner and you’re ready to go.
Specs
| Weight & dimensions |
| Weight |
330 g |
| Width |
94 mm |
| Depth |
132 mm |
| Height |
203 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Power |
| Input voltage |
5 V |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Standard interfaces |
RS-485 |
| Scanning |
| Type |
Handheld bar code reader |
| Scanner type |
1D/2D |
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, PDF417, U.P.C. |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) |
1280 x 800 pixels |
| Wavelength |
528 nm |
| Performance |
| Product colour |
Black |
| International Protection (IP) code |
IP52 |
| LED indicators |
Yes |
| Built-in display |
No |
| Image formats supported |
BMP, JPEG, TIFF |
| Built-in processor |
Yes |
| Processor frequency |
800 MHz |
| Logistics data |
| Harmonized System (HS) code |
84716070 |
Features

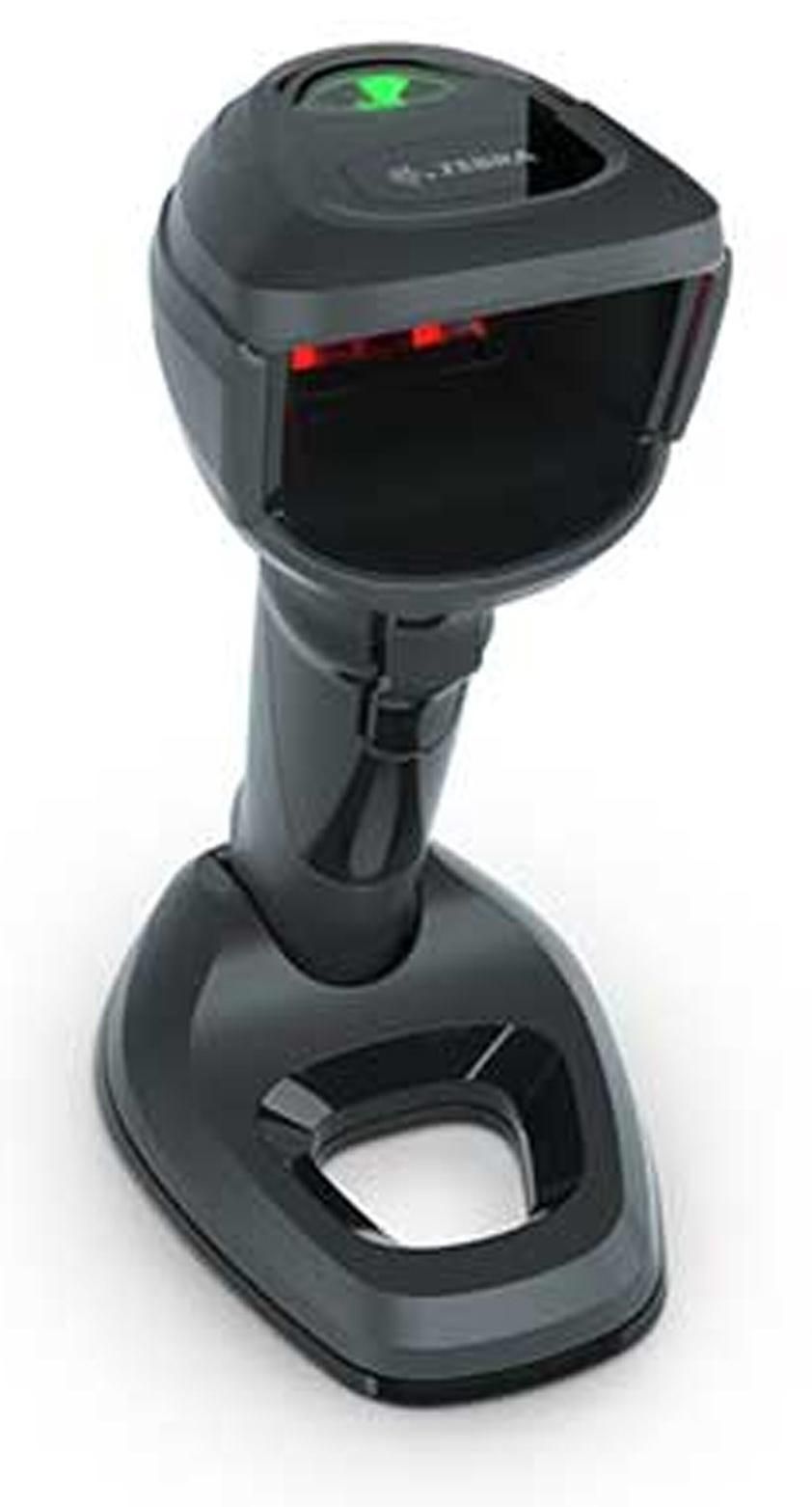

Zebra DS9908-SR. Type: Handheld bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, PDF417, U.P.C.. Connectivity technology: Wired, Standard interfaces: RS-485. Product colour: Black, International Protection (IP) code: IP52, Image formats supported: BMP, JPEG, TIFF. Input voltage: 5 V. Weight: 330 g, Width: 94 mm, Depth: 132 mm
Product Description
IMPROVE WORKFLOW EFFICIENCY AND ACCURACY WITH THE HYBRID PRESENTATION IMAGER BUILT FOR THE LAB
Barcodes found in the lab can be challenging for a general purpose scanner. That’s why the DS9900 Series is purpose-built for lab environments, offering unparalleled productivity and ease of use. You get first-time, every time capture of small, high density, curved and color-coded barcodes. A one-of-a-kind hybrid design provides seamless switching between handheld and hands-free scanning, and an optional RFID model and unrivaled management tools drive workflow efficiency to a new level.
SCAN IT ALL
High density focus and white illumination LEDs easily read dense barcodes on microscope slides, curved barcodes on medicine bottles and blood vials, and barcodes on color-coded specimen trays and biopsy cassettes. An 800 MHz microprocessor, megapixel sensor and exclusive PRZM Intelligent Imaging technology deliver unparalleled scanning performance.
TWO SCANNERS IN ONE
While other products are handheld scanners retrofitted with a base, our award-winning Industrial Design team created the DS9900 Series for handheld and hands-free use. The result? Fast, seamless switching between modes. A sturdy, one-piece design with a small footprint. The right ergonomics. And a scan range that automatically adjusts as needed.
UNRIVALED MANAGEABILITY
Complimentary industry-best tools make it easier than ever to remotely configure scanners, upgrade firmware and format data for your application. Right out of the box, the scanner is configured for common applications and auto-host detect cables automatically select the right host interface — just plug in the scanner and you’re ready to go.
