Stock Status: 1x unit in stock
AFFORDABILITY AND SIMPLICITY DELIVERED
2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.
Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.
But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.
Specs
| Weight & dimensions |
| Weight |
161.6 g |
| Width |
66 mm |
| Depth |
99 mm |
| Height |
165 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Power |
| Power source type |
DC |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery capacity |
2400 mAh |
| Battery life |
100 h |
| AC adapter output voltage |
5 V |
| Power consumption |
250 mA |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Standard interfaces |
USB, RS-232, RS-485, Keyboard wedge |
| Scanning |
| Type |
Handheld bar code reader |
| Scanner type |
1D/2D |
| Sensor type |
LED |
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C. |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, TLC-39 |
| Optical sensor resolution (W x H) |
640 x 480 pixels |
| Working distance |
36.8 cm |
| Wavelength |
645 nm |
| Tilt reading angle |
-65 - 65° |
| Pitch reading angle |
-65 - 65° |
| Yaw reading angle |
-65 - 65° |
| Motion tolerance (cm/s) |
13 |
| Performance |
| Product colour |
Black |
| International Protection (IP) code |
IP42 |
| LED indicators |
Yes |
| Certification |
EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07
IEC 62471
EN 55022 (Class B); EN 55032 (Class B)
EN 55024
EN 61000-3-2
EN 61000-3-3
47 CFR Part 15, Subpart B, Class B
ICES-003 Issue 6, Class B |
| Logistics data |
| Harmonized System (HS) code |
84716070 |
| Technical details |
| Compliance certificates |
RoHS |
| Packaging data |
| Cables included |
Micro-USB |
| Charging base |
No |
Features

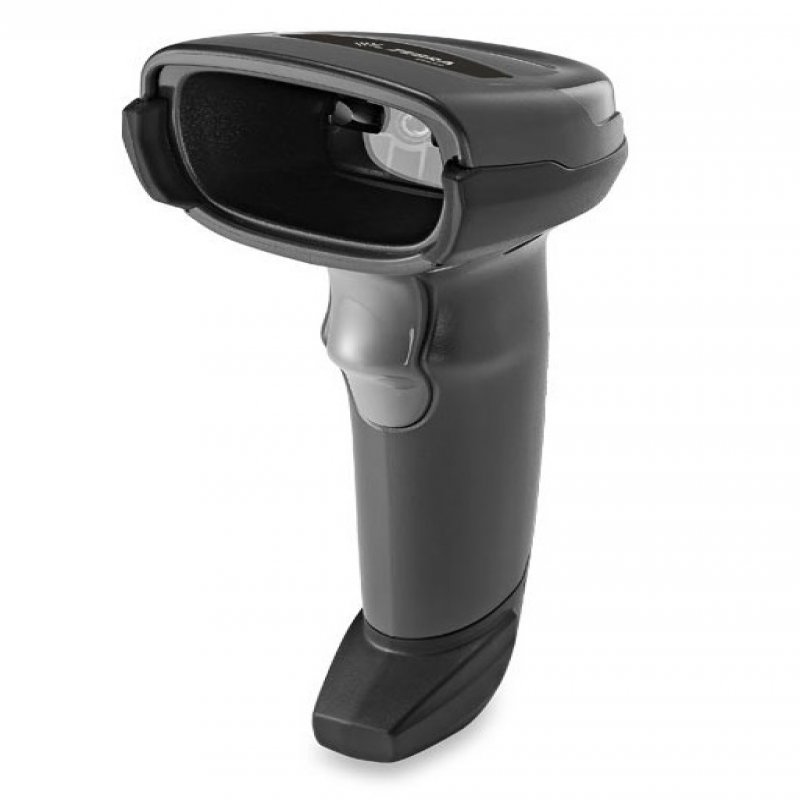

Zebra DS2208. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: USB, RS-232, RS-485, Keyboard wedge. Product colour: Black, International Protection (IP) code: IP42, Certification: EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2.... Power source type: DC, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 2400 mAh. Weight: 161.6 g, Width: 66 mm, Depth: 99 mm
Product Description
AFFORDABILITY AND SIMPLICITY DELIVERED
2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.
Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.
But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.
